Lowrance SIMRAD StructureScan 3D User Manual

TRANSDUCER1 TRANSDUCER2
NET-3NET-1POWER
12V/24V 3A
NET-2
Power

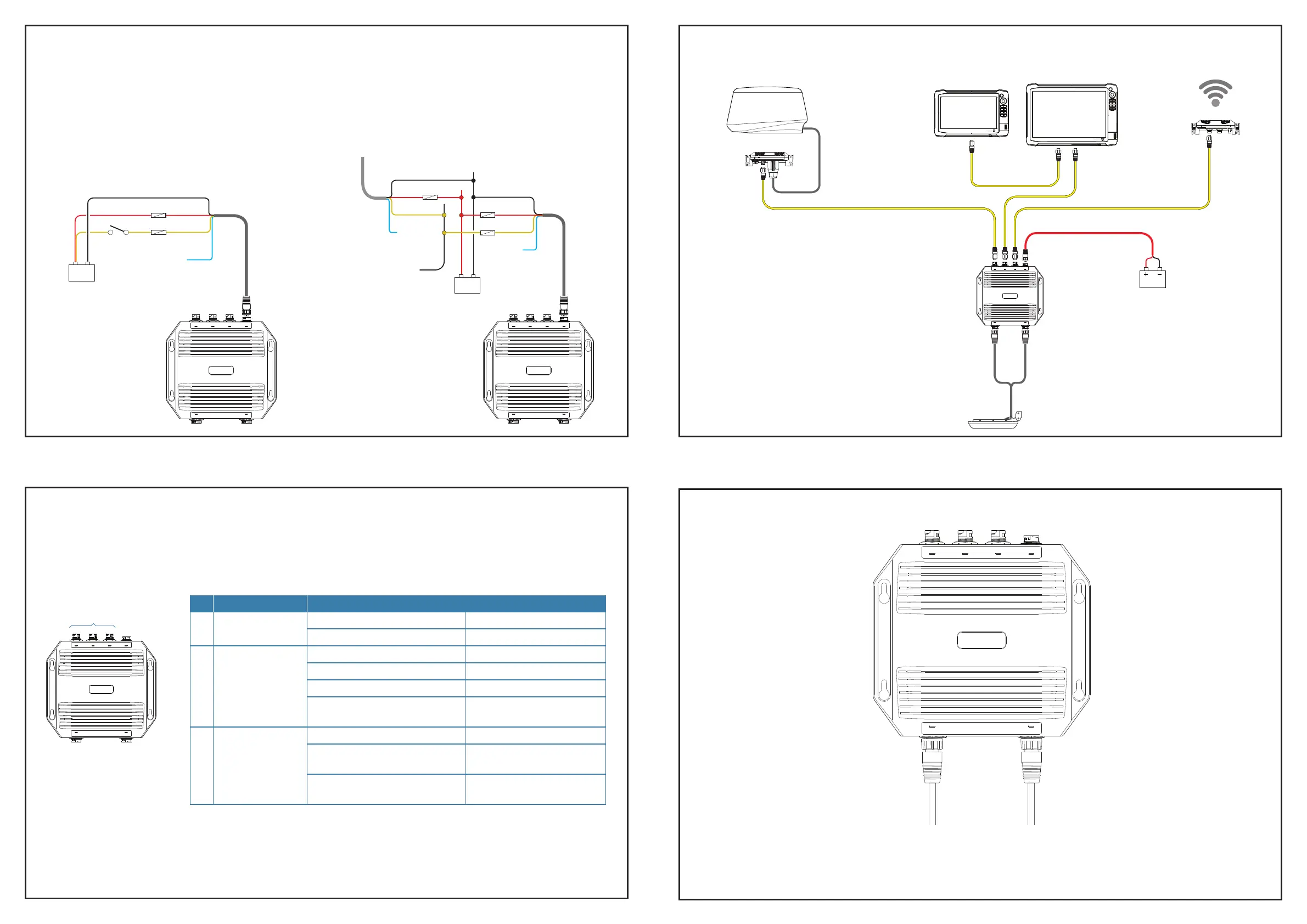

Connectors and LEDs
Wiring example
Transducer connection
TRANSDUCER1 TRANSDUCER2
NET-3NET-1POWER
12V/24V 3A
NET-2
TRANSDUCER1 TRANSDUCER2
NET-3NET-1POWER
12V/24V 3A
NET-2
Switch
12 / 24 V DC
+
_
Red
Black
Yellow
Blue
(n/c)
Blue
(n/c)
Blue
(n/c)
Red
Black
Yellow Red
Black
Yellow
+
_
Power
Control bus
To Multi-Function
Display
12 / 24 V DC
1
2
3 3
TRANSDUCER1 TRANSDUCER2
NET-3NET-1POWER
12V/24V 3A
NET-2
ID CONNECTORS LEDs
1 Ethernet
OFF No connection
ON/FLASHING - Green Connected and ok
2 Power
OFF No power
ON - Red System starting
ON - Green System operating
FLASHING Red/Green
Software error - restart
unit
3
Structure Scan
3D transducer
OFF Sounder not operating
FLASHING (every second) -
Green
Searching for bottom
signal
ON
Operational system with
bottom signal detected
Power controlled by External Switch Power controlled by Multi-Function Display
12/24 V DCStructureScan® 3D Module
StructureScan® 3D Transducer
StructureScan® 3D Transducer cable 1
to
Transducer 1 Connector
StructureScan® 3D Transducer cable 2
to
Transducer 2 Connector
4G Radar
Multi-Function Displays
TRANSDUCER1 TRANSDUCER2
NET-3NET-1POWER
12V/24V 3A
NET-2
Ensure both StructureScan® 3D transducer cables
are connected to the StructureScan® 3D Module correctly
