LOYTEC LIOB-A2 - Page 2

SEL
GND
A B
TERM
+ GND + GND

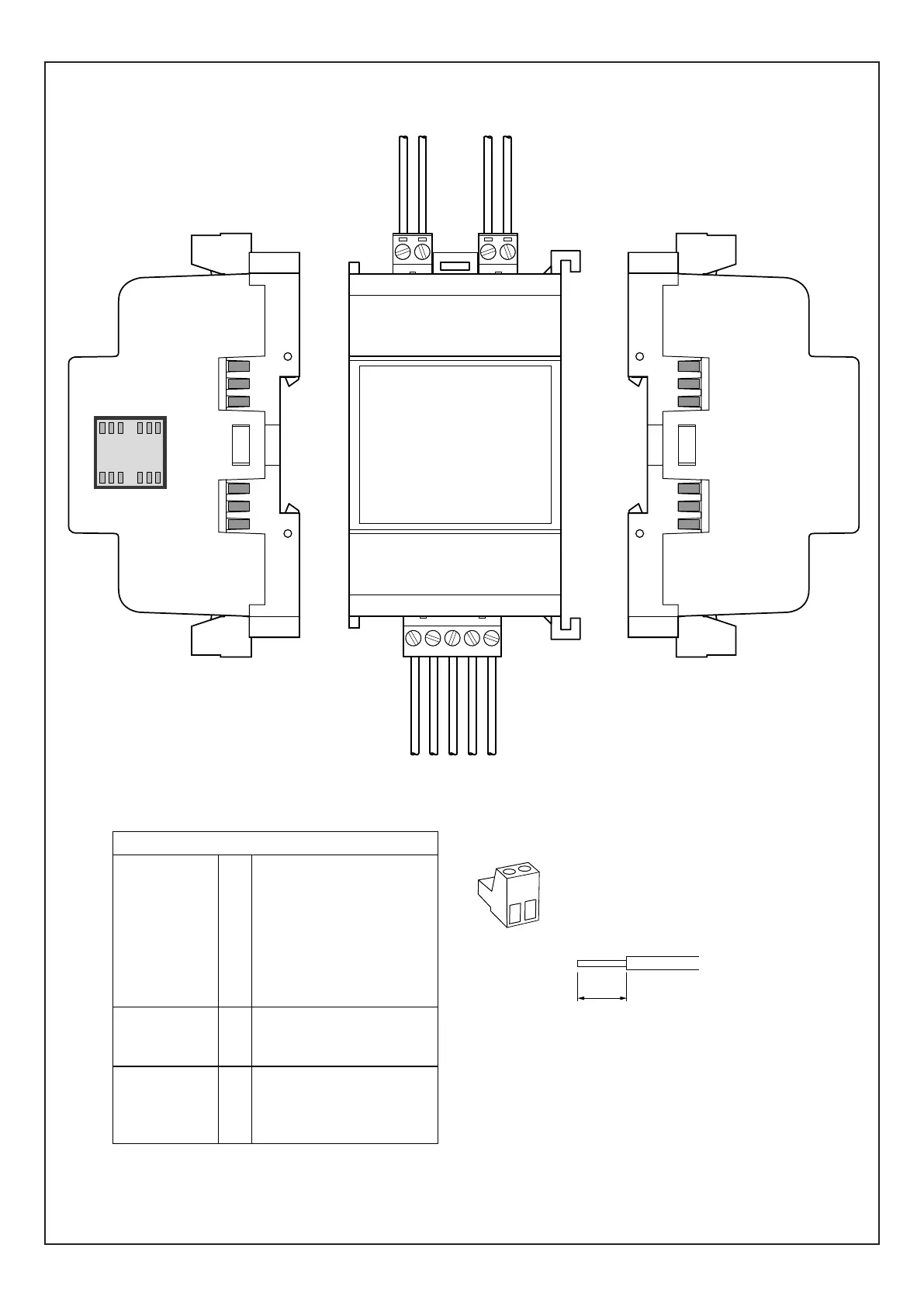

Connectors
LIOB 1 SEL
CONNECT 2 GND
IN/OUT 3 A, Noninverting
Input/Output
4 B, Inverting
Input/Output
5 TERM
POWER 6 Input 24 V PLUS
SUPPLY 7 Input GND
POWER 8 Output 24 V PLUS
OUTPUT
max. 100mA 9 Output GND
0.2 - 2.5 mm
2
7
2 poles: Weidmüller BLZP 5.08/02/180
5 poles: Weidmüller BLZP 5.08/05/180
1 2
Adapter 2
3 4 5
6 7 8 9
LIOB
CONNECT
L-IOB
