LPL 7452 - Assembly Instructions; Mounting the Column; Mounting the Head;Carriage;Bellows Assembly

ASSEMBLY

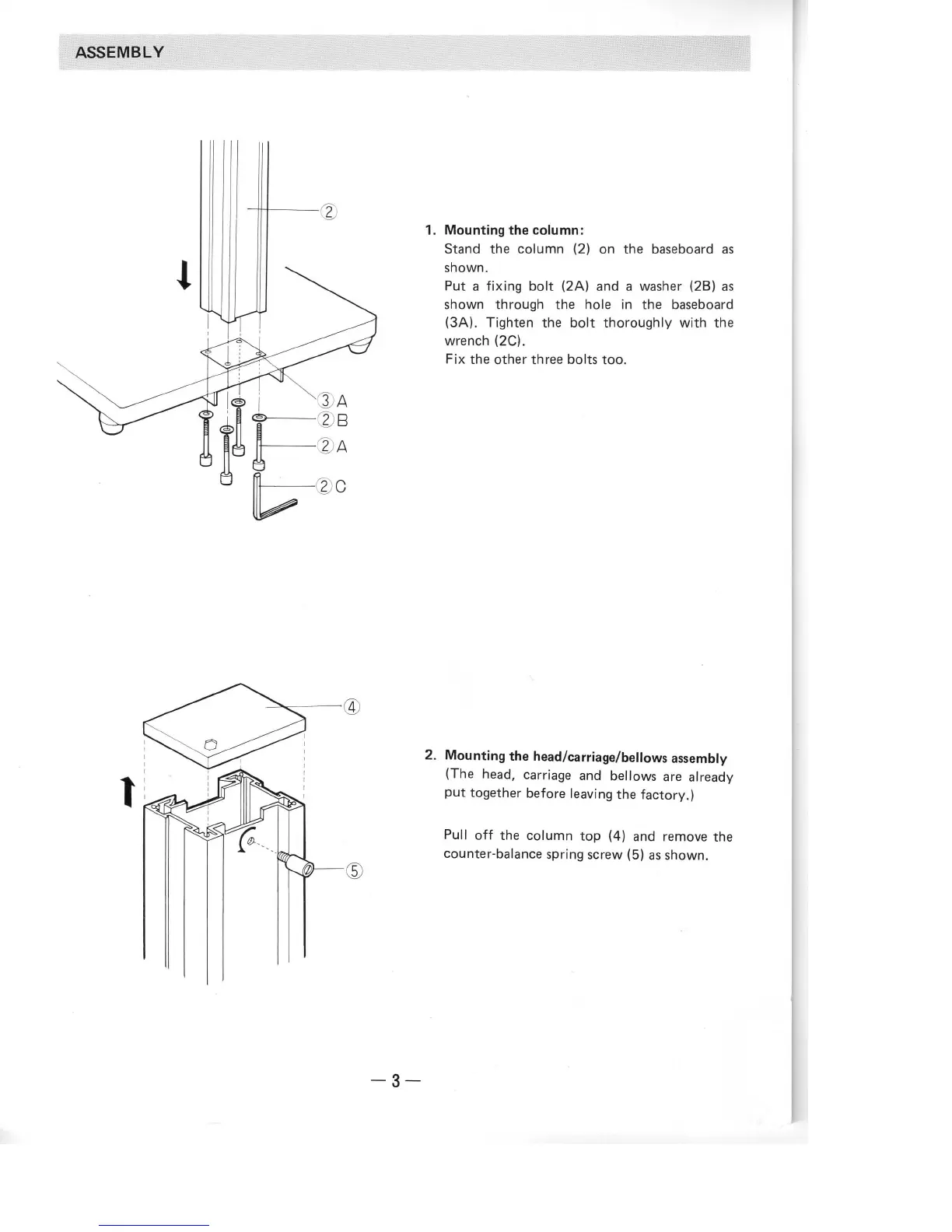

Mounting the column:
Stand the column (2) on the baseboard as
shown.
Put a fixing bolt (2A) and a washer (2B) as
shown through the hole in the baseboard
(3A). Tighten the bolt thoroughly with the
wrench (2C).
Fix the other three bolts too.
-(2)0
2. Mounting the head/carriage/bellows assembly
(The head, carriage and bellows are already
put together before leaving the factory.)
Pull off the column top (4) and remove the
counter-balance spring screw (5) as shown.
-3
