LSC DMX-512 - Page 4

Most fixtures start receiving on the address selected
EXAMPLE:
Setting ADDRESS at 1 unit starts at CHANNEL 1
Dip switch # 1 on
Setting ADDRESS for Setting ADDRESS for
17 unit starts at 49 unit starts at
CHANNEL 17 CHANNEL 49
Dip switch # 1 = 1 Dip switch # 1 = 1
“ # 5 = +16 “ 5 = 16
= 17 “ 6 = 32
= 49

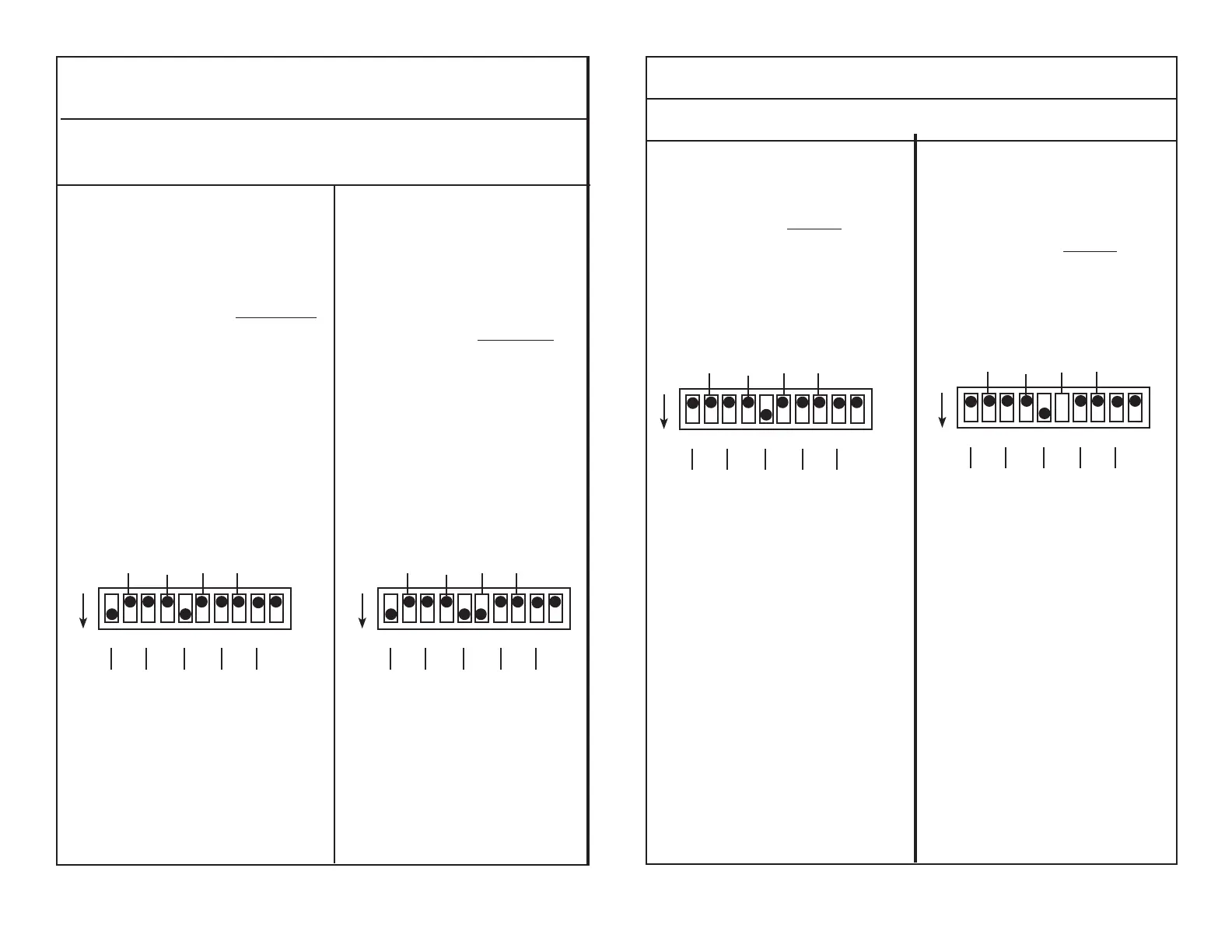

DIP SWITCH DMX ADDRESS
1 2 3 54 7 9 1086
ON
1 4 16 64 256
2 8 32 128
DIP SWITCH DMX ADDRESS
1 2 3 54 7 9 1086
ON
1 4 16 64 256
2 8 32 128
Dip switch total = 17
unit starts at
CHANNEL 17
Dip switch total = 49
unit starts at
CHANNEL 49
LSC® Los Angeles, CA 90058 - DMX OPERATOR User Manual page 5
Some units start receiving one more than the ADDRESS selected.
Example: Elation Patend Light, LSC Mighty Scan
EXAMPLE:
Setting ADDRESS at 0 unit starts at CHANNEL 1 all Dip switches OFF
Setting ADDRESS for Setting ADDRESS for
17 49
Dip switch # 5 = 16 Dip switch # 5 = 16
= 16 6 = 32
= 48
unit starts at 17 unit starts at 49
DIP SWITCH DMX ADDRESS
1 2 3 54 7 9 1086
ON
1 4 16 64 256
2 8 32 128
DIP SWITCH DMX ADDRESS
1 2
3
54 7 9 1086
ON
1 4 16 64 256
2 8 32 128
Dip switch total = 16
unit starts at
CHANNEL 17
Dip switch total = 48
unit starts at
CHANNEL 49
LSC® Los Angeles, CA 90058 - DMX OPERATOR User Manual page 6
