Chapter 10. Installation and Wiring
10
-
2
10.1.3 Notice in installing the panel
Here describes how to install XGT Panel in panel and notice.

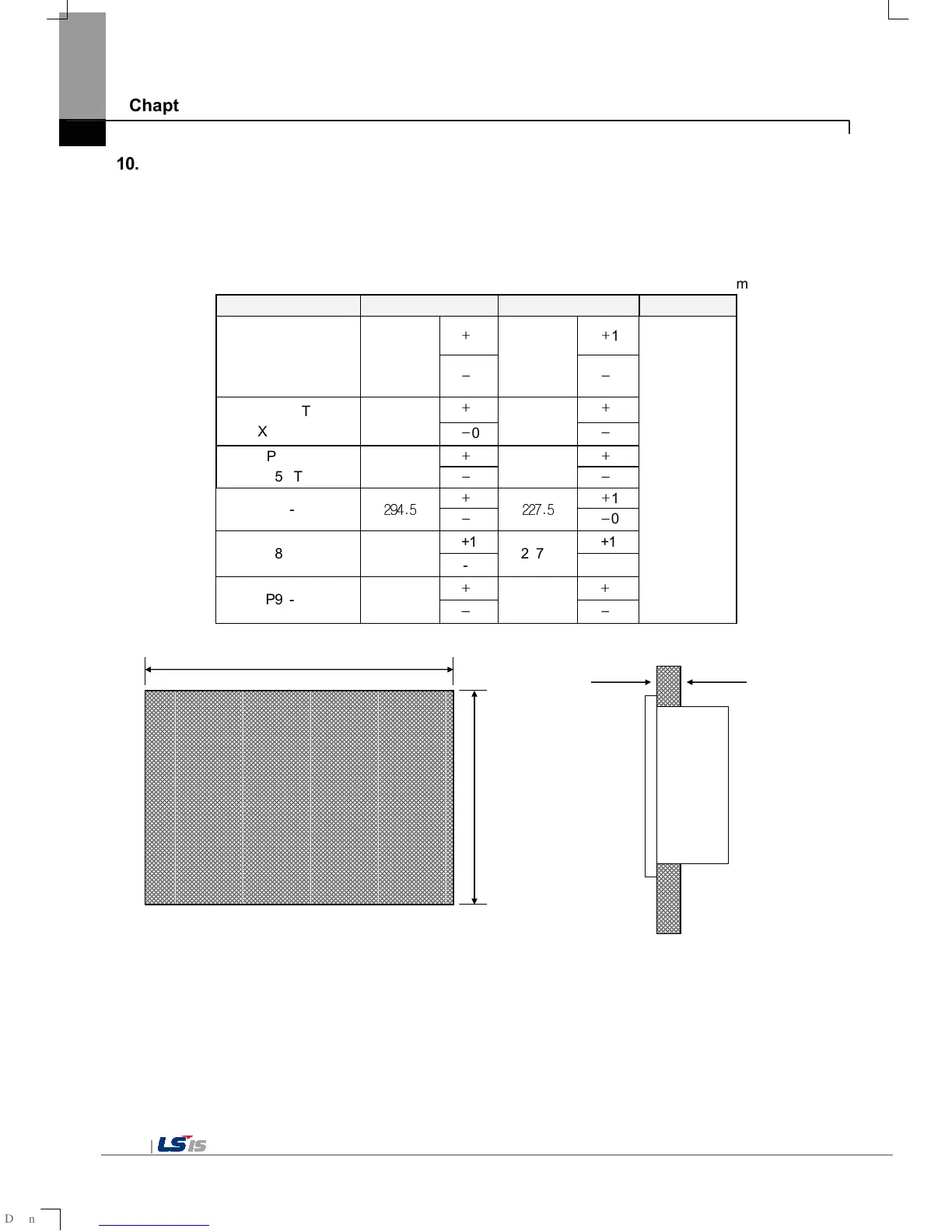

(1) Panel cut
• Before installing the XGT Panel in panel, panel should be made with the following dimension.
Classification X (Wide) Y (Height) Z (Thickness)
XP30-BTE
XP30-TTE
XP30-BTA
XP30-TTA
156.0
＋ 1
123.5
＋ 1
1.6~9.5
－ 0 － 0
XP40-TTA
XP40-TTE
192
＋ 1
138
＋ 1
－ 0 － 0
XP50-TTA
XP50-TTE
228.5
＋ 1
158.5
＋ 1
－ 0 － 0
XP70-TTA 294.5
＋ 1
227.5
＋ 1
－ 0 － 0
XP80-TTA 294.5
+1
227.5
+1
-0 -0
XP90-TTA 383.5
＋ 1
282.5
＋ 1
－ 0 － 0
X
XX
X
Y
YY
Y
Z
ZZ
Z
Unit: [mm]
