LU-VE EAV5 - Page 24

24

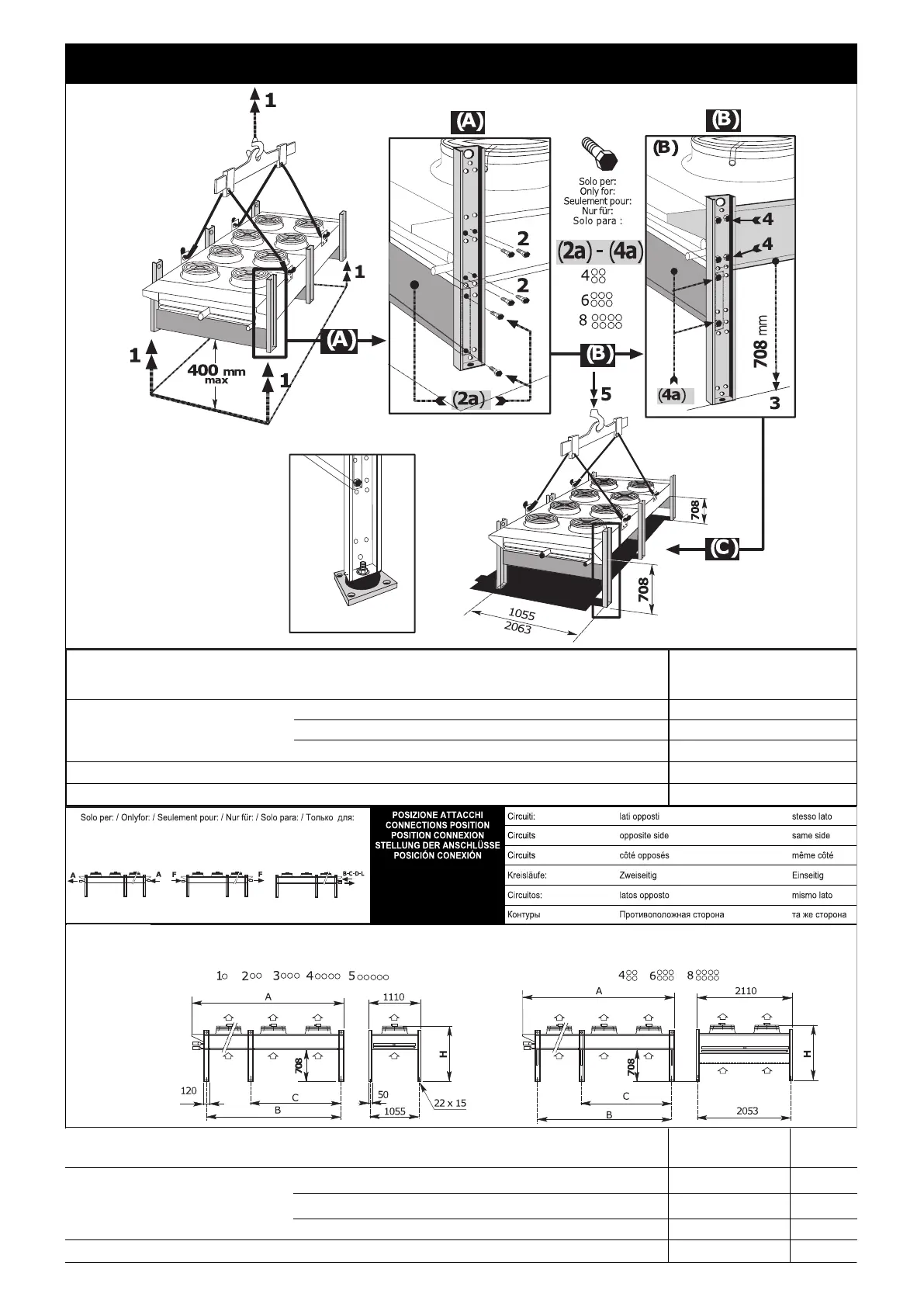

INSTALLAZIONE ORIZZONTALE / HORIZONTAL INSTALLATION / INSTALLATION HORIZONTAL / AUFSTELLUNG HORIZONTAL
MONTAJE HORIZONTAL / МОНТАЖ Горизонтально
Положение крепления
SAL6...H
DRY COOLER
(A, F)(+273*) (B, C, D, L)
(A, F)(+273*) (B, C, D, L)
(A, F)(+273*) (B, C, D, L)
(A, F)(+273*) (B, C, D, L)
(A, F)(+273*) (B, C, D, L)
(A, F)(+273*) (B, C, D, L)
SAL6...H (DRY COOLER)
MOTORI MOTORS MOTEURS
MOTOREN MOTORES МОТОРы
Ø 500
Ø 630
mm x n° 1 2 3 4 5 4 6 8
EAV5...H
Ø 500
A mm 1393 2393 3393 4393 5393 2393 3393 4393
SAV6...H
Ø 630 B mm 1000 2000 3000 4000 5000 2000 3000 4000
SAL6...H DRY COOLER
Ø 630
C mm --- --- --- 2000 2000 --- --- 2000
EAV5...H
H mm 1230 1230 1230 1230 1230 1230 1230 1230
SAV6...H - SAL6...H
H mm 1270 1270 1270 1270 1270 1270 1270 1270
○○
○○
○○○
○○○
○○○○
○○○○
EAV6...H
SAV7...H
DRY COOLER
EAV5...H
SAV6...H
SAL6...H
EAV5 - SAV6 - EAV6 - SAV7
VERSION GAS COOLER
MOTORI MOTORS MOTEURS
MOTOREN MOTORES МОТОРы
Ø 630
Ø 710
mm x n° 1 2 3 4 5 4 6 8
EAV6...V
Ø 630
A mm 1588 2803 4018 5233 6448 2823 4038 5253
SAV7...V
Ø 710
B mm 1215 2430 3645 4860 6075 2430 3645 4860
C mm --- --- --- 2430 2430 --- --- 2430
EAV6…/SAV..7
H mm 1270 1270 1270 1270 1270 1270 1270 1270
○○
○○
○○○
○○○
○○○○
○○○○
OPTIONAL
