System Inventory
Console Display/Instructions Additional Information PC
When you access the System Inventory screen, Slot 00 information is
displayed. Line 2 indicates that the processor occupies Slot 00.
Reviewing the Screen
Lines 4, 5, and 6 indicate information that may be asked of you when you call
your technical support organization:
■ Line 4, the hardware vintage, indicates the revision level of the
processor board’s firmware.
■ Line 5 indicates the boot ROM release number for the board software,
followed by the official software version number.
■ Line 6 indicates the revision levels of the ROM pairs on the processor
board.
The screen below displays information for slots other than Slot 00.

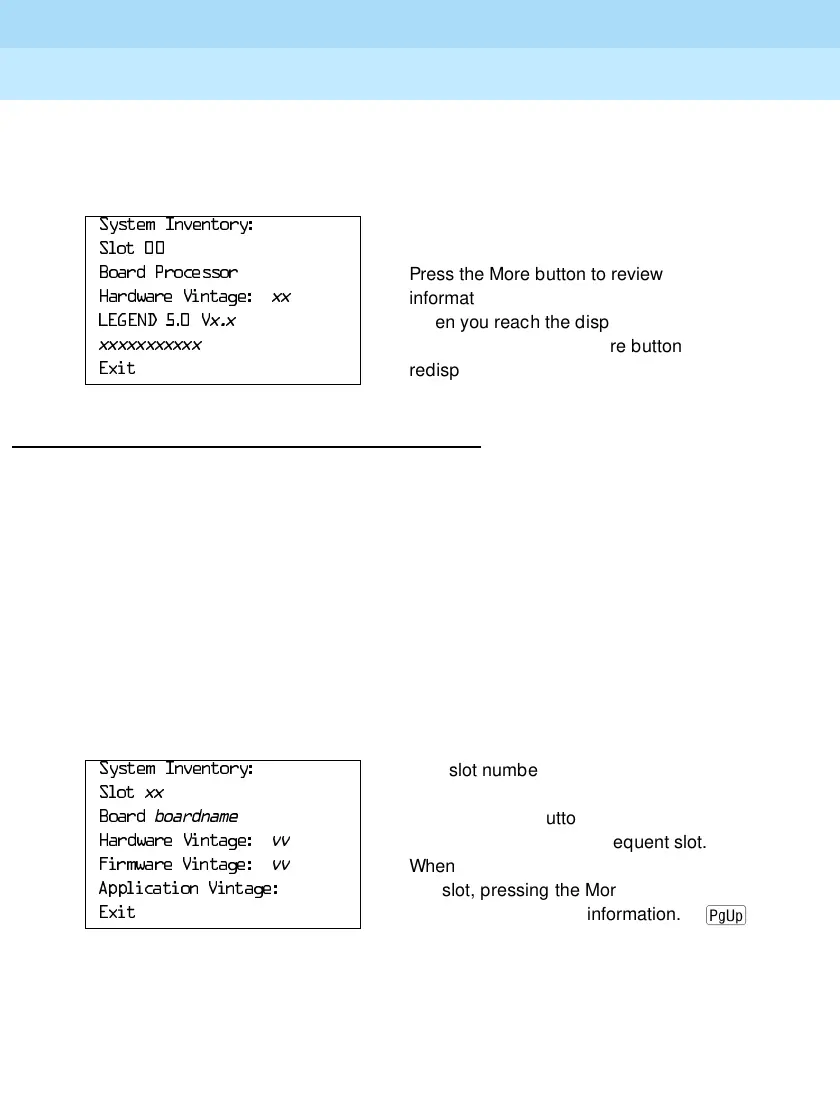

6\VWHP,QYHQWRU\
6ORW
%RDUG3URFHVVRU
Press the More button to review
+DUGZDUH9L QWDJH YY
information for each subsequent slot.
/(*(1'9 YY
When you reach the display for the
YYYYYYYYYYY
last slot, pressing the More button
([LW
redisplays the Slot 00 information.

6\VWHP,QYHQWRU\
xx = slot number entered in Step 2
6ORW YY
%RDUG CPBSEOBNF
Press the More button to review
+DUGZDUH9L QWDJH WW
information for each subsequent slot.
)LUPZDUH9LQWDJH WW
When you reach the display for the
$SSOLFDWLRQ9LQWDJH
last slot, pressing the More button
([LW
redisplays the Slot 00 information.

