363-206-285 Detailed Level Procedure: DLP-557
Issue 2, February 2000 Page 15 of 22
DDM-2000 OC-3 MULTIPLEXER

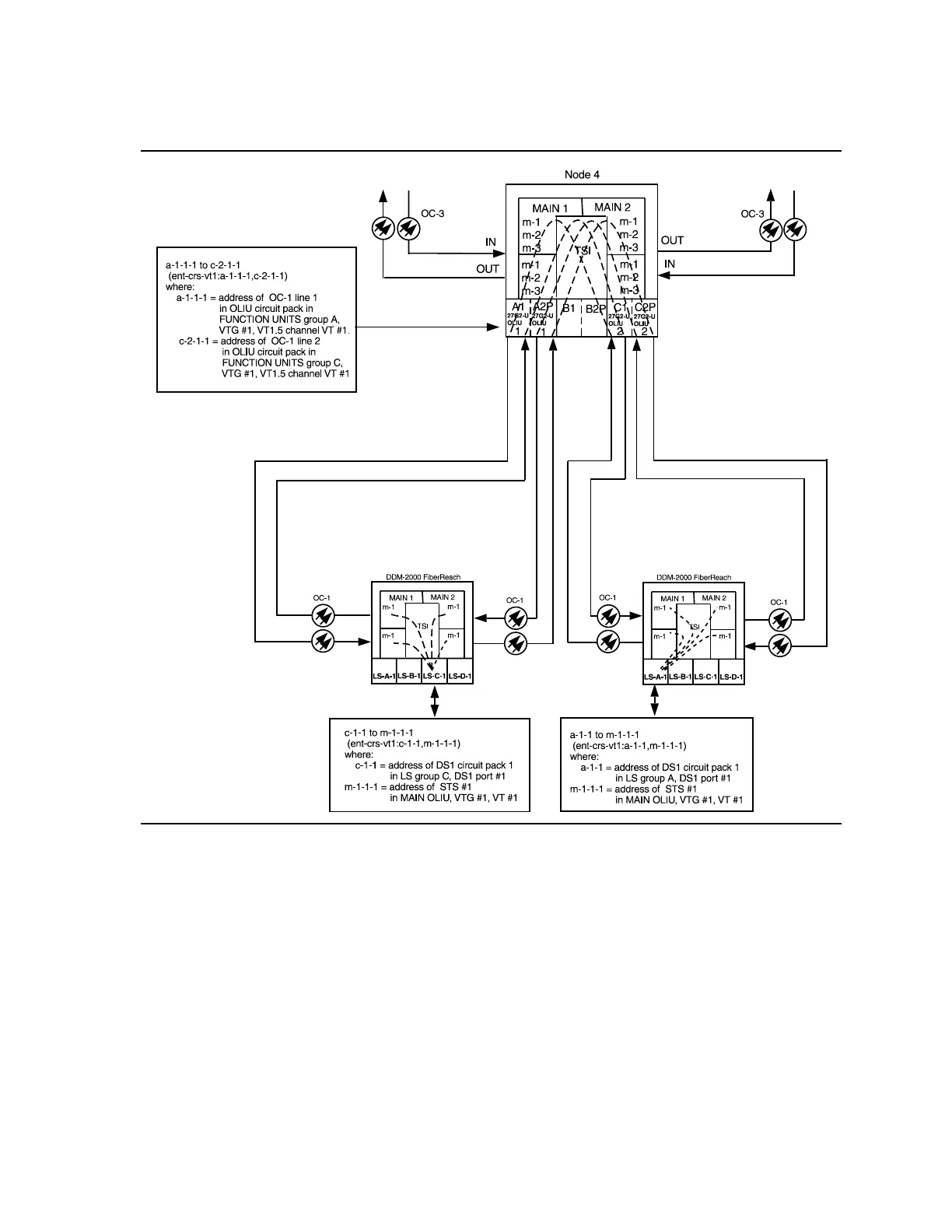

Figure 11 – Example of Single Homing Inter-Function Unit OC-3/OC-1
Cross-connections
