DLP-559: Detailed Level Procedure 363-206-285
Page 3 of 12 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER

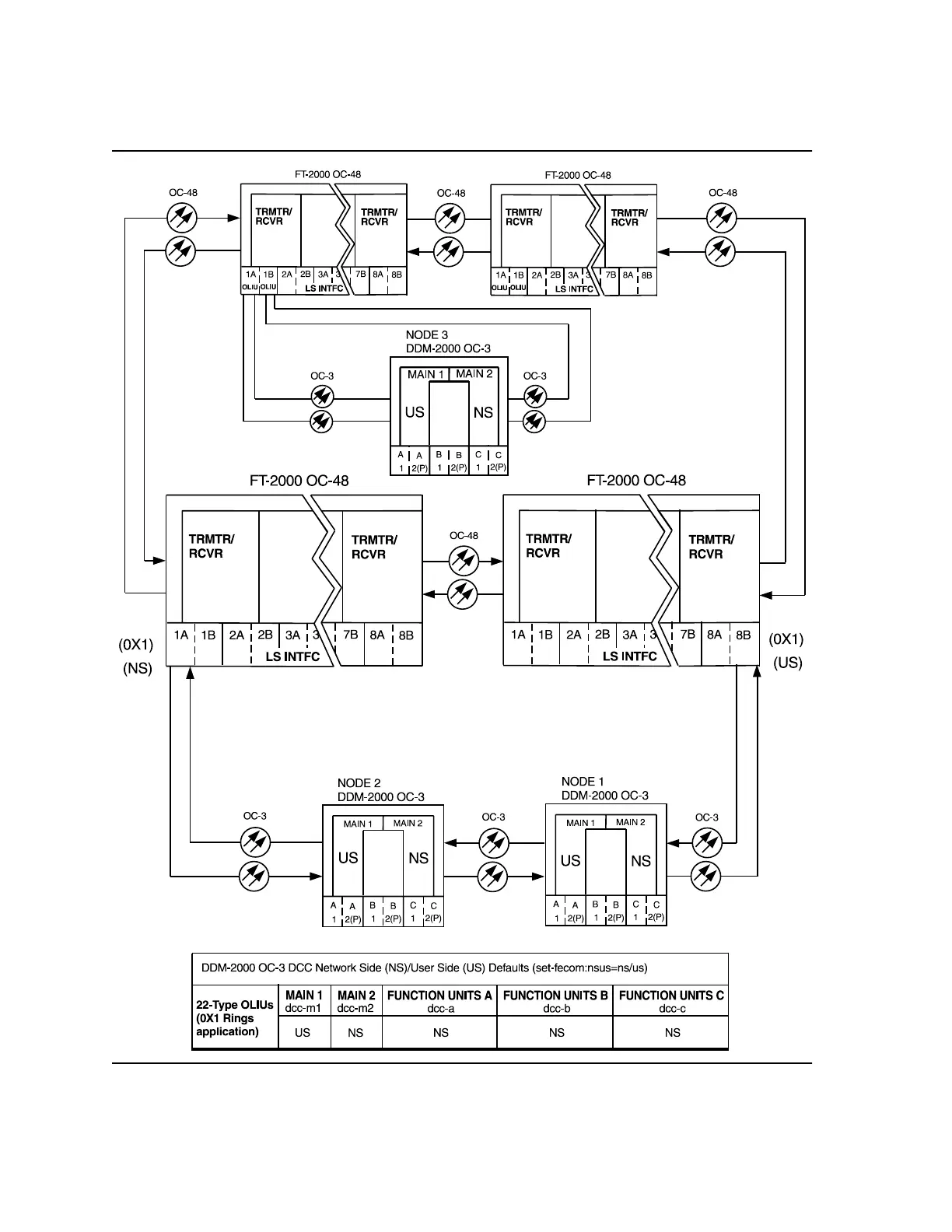

Figure 2 – Sample Dual Homed OC-3 Network Schematic
