363-206-285 Detailed Level Procedure: DLP-514

Issue 2, February 2000 Page 6 of 18

DDM-2000 OC-3 MULTIPLEXER

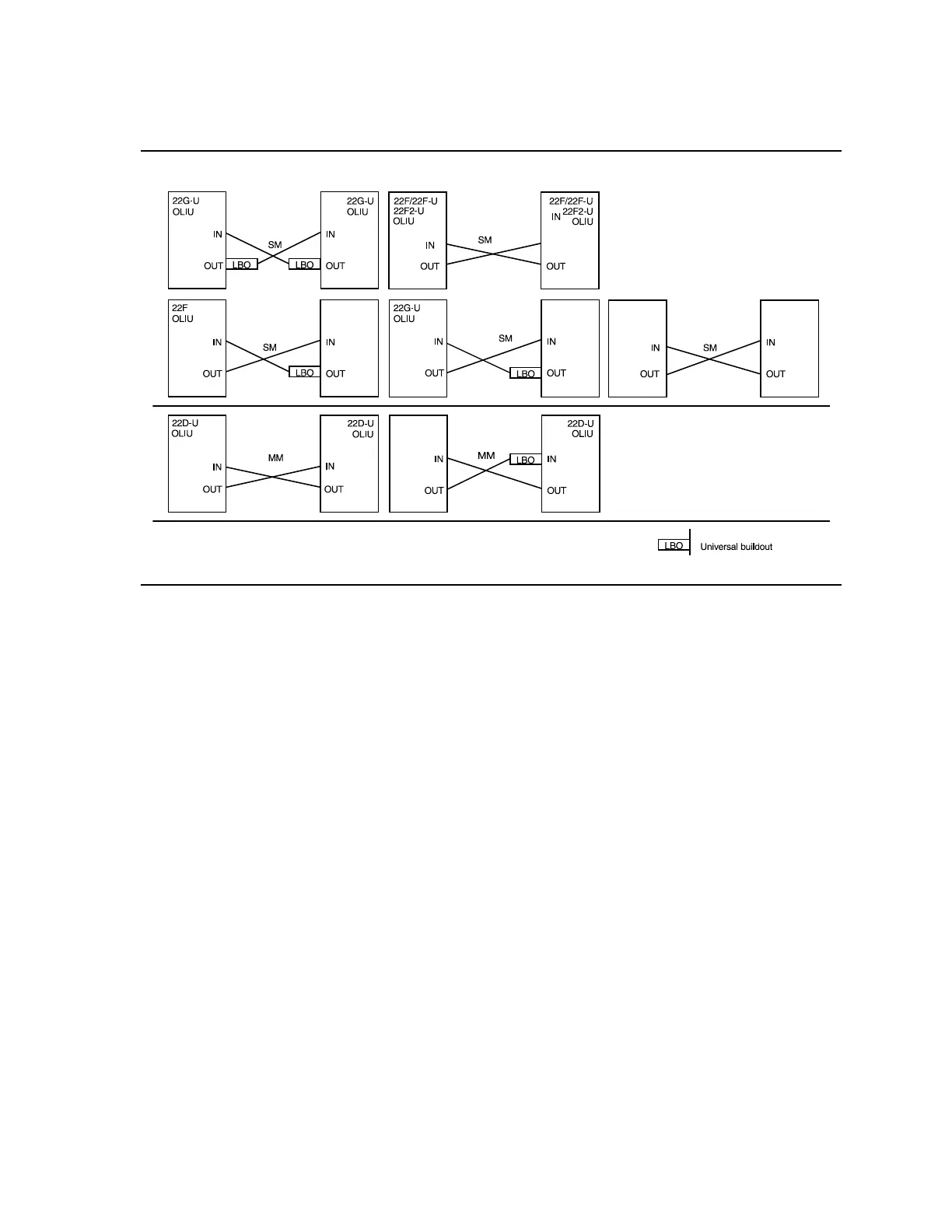

Figure 1 – DDM-2000 OC-3 to OC-3 Fiber Optic Connections and Line Buildouts

22G-U

22G2-U

22G3-U

22G4-U

22F

22F-U

22F2-U

OLIU

22G-U

22G2-U

22G3-U

22G4-U

OLIU

22G2-U

22G3-U

22G4-U

OLIU

22F-U

22F2-U

22G2-U

22G3-U

22G4-U

OLIU

22F-U

22F2-U

22G2-U

22G3-U

22G4-U

OLIU
