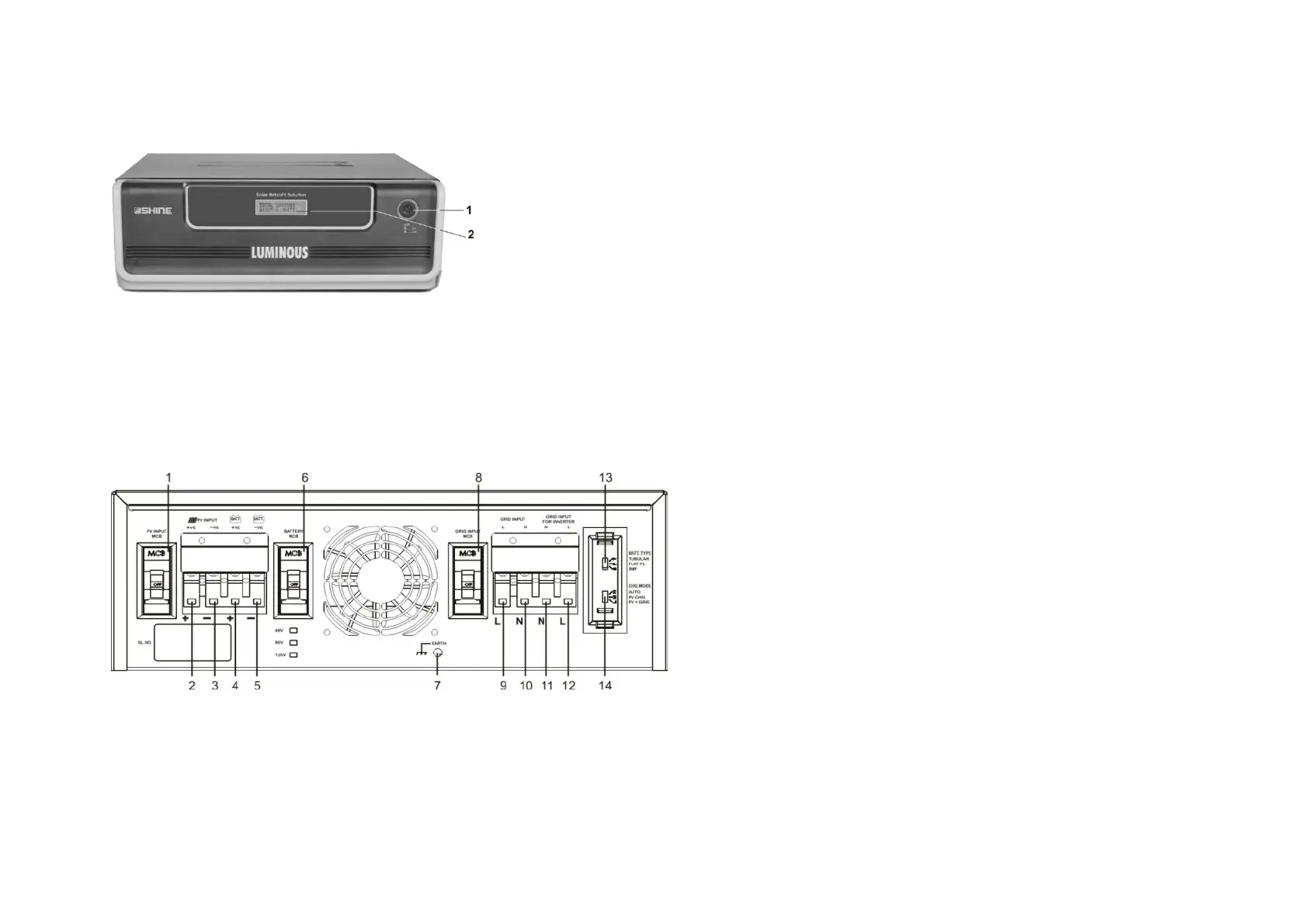

FrontPanelDescription
1)LCDBACKLIGHTSWITCH:Itenables/disablesLCDdisplaybacklight.
2)LCDDISPLAY:Itdisplaysallnecessaryinformation/parametersoftheproduct.
BACKPANEL
1)PVINPUTMCB:Usedtoconnect/disconnectPVArray.
2)PVINPUT+VE:Connect+VEterminalofPVArray.
3)PVINPUT-VE:Connect-VEterminalofPVArray.
