PREPARING FOR THE ROAD
20
Road lighting
For your information the wiring diagram of
the 13 pin connector is shown. These should
be checked regularly and if in any doubt a
qualified electrician consulted.
Passengers
Passengers are forbidden to ride in a
caravan with the exception of authorized test
personnel.

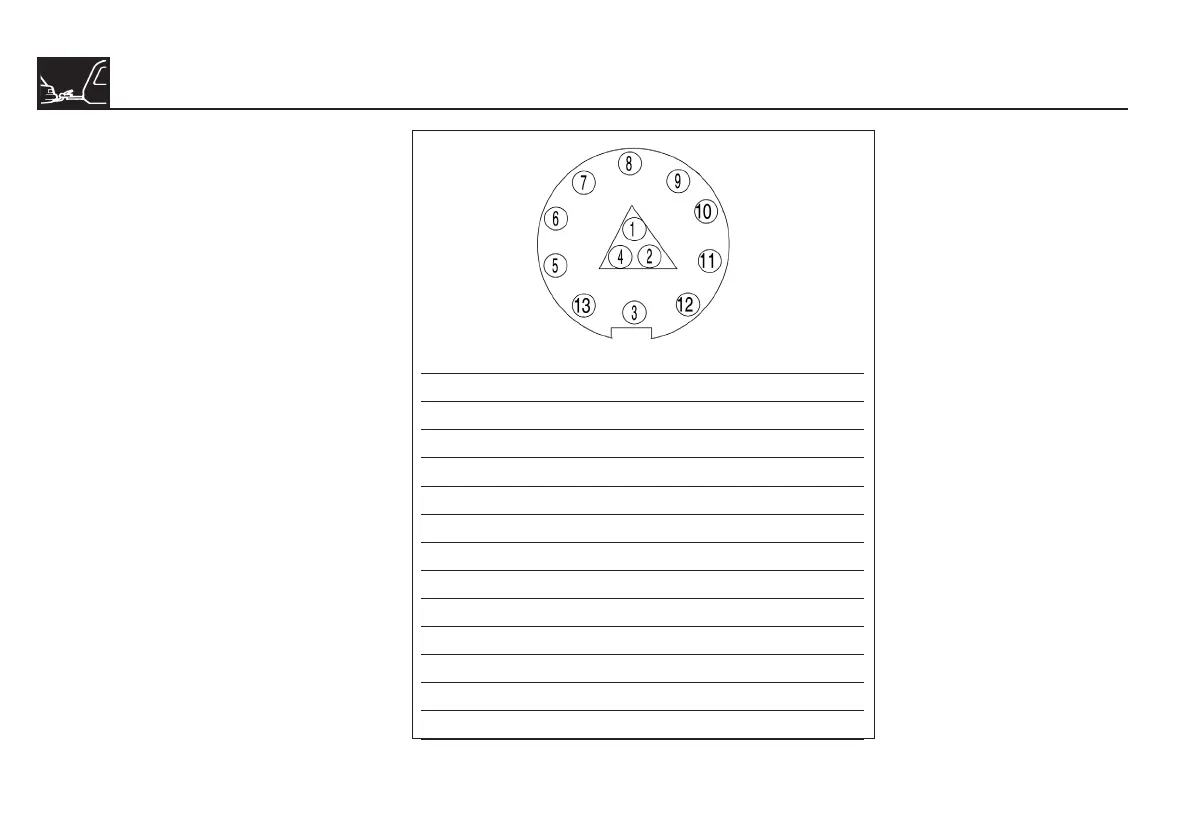

13 pin plug wiring diagram
PIN No COLOUR DESCRIPTION
1 YELLOW LEFT IND
2 BLUE FOG
3 WHITE NEG FOR ROAD LIGHTS
4 GREEN RIGHT IND
5 BROWN RIGHT SIDE LIGHTS
6 RED STOP
7 BLACK LEFT SIDE LIGHTS
8 ORANGE REVERSE
9 BLUE/BROWN CAR +VE
10 RED/BROWN FRIDGE +VE
11 GREEN/WHITE FRIDGE -VE
12 EMPTY
13 BLUE/WHITE CAR -VE
