Luvata ECO EVS - Manufacturing and Dimensional Features

10
www.luvata.com

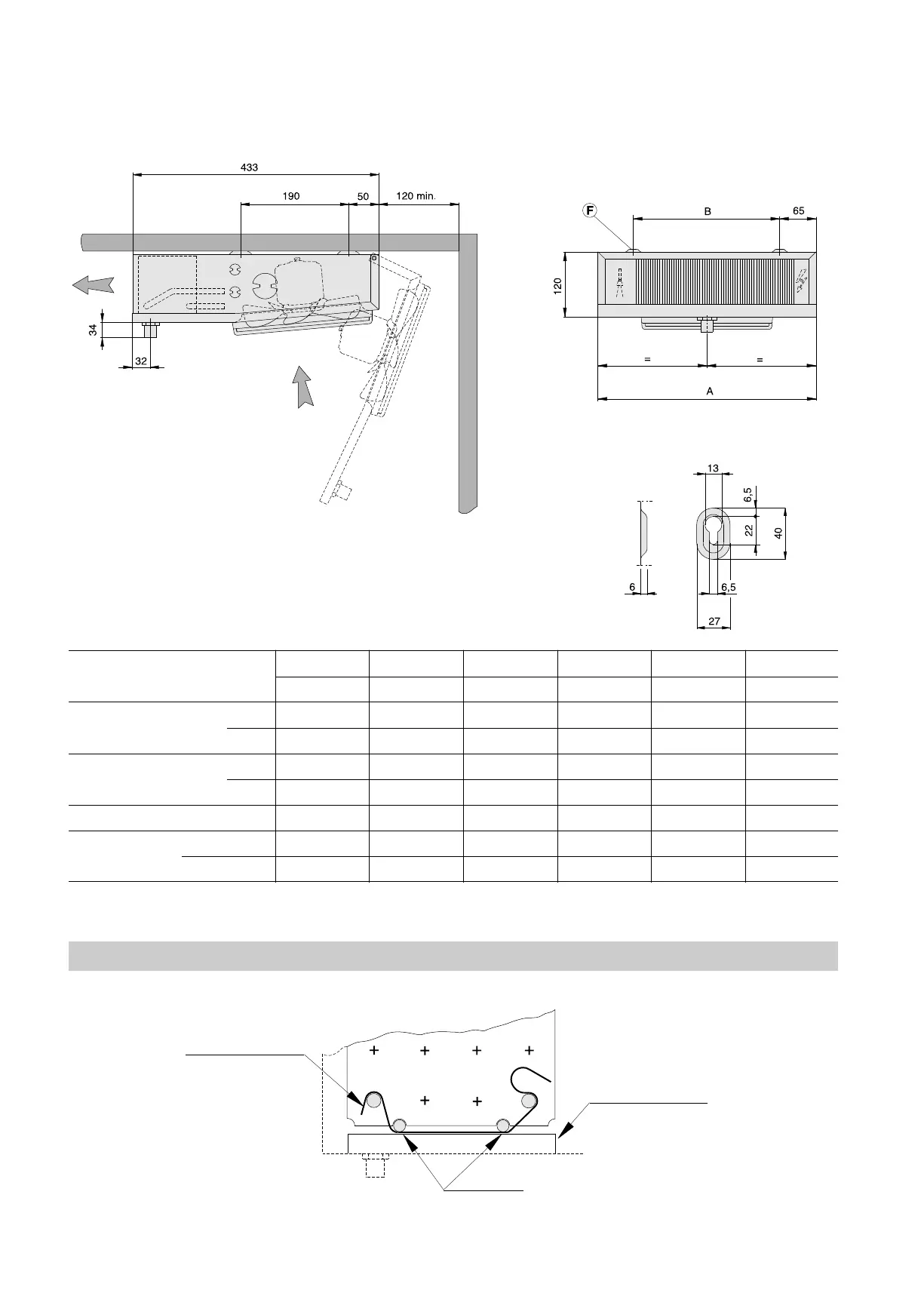

Manufacturing and dimensional features
Positioning detail of electric heater
EVS model 40 60 100 130 180 (*) 290 (*)
EVS/B model 40/B 60/B 100/B 130/B 180/B (*) 290/B (*)
Dimensions A 411 411 611 611 1111 1111
(mm)
B 271 271 471 471 971 971
Inner coil connections inlet 10 mm 10 mm 10 mm 10 mm 1/2” SAE 1/2” SAE
outlet 10 mm 10 mm 10 mm 10 mm 16 mm 16 mm
Drain connection 1/2” GAS 1/2” GAS 1/2” GAS 1/2” GAS 1/2” GAS 1/2” GAS
Net weight normal vers. 3,9 4,6 6,6 7,2 10,4 11,4
(kg)
ED vers. 4,3 4,9 7,0 7,6 11,0 12,0
Fastening detail “F”
Inner drip tray
(for EVS/B series only)
Heater
Heater clip
(*) Use thermal expansion valve with external pressure equalizer.
