This document describes the LUX TOOLS workbench, model number 17040, providing assembly instructions, a list of components, and required tools.

Function Description:

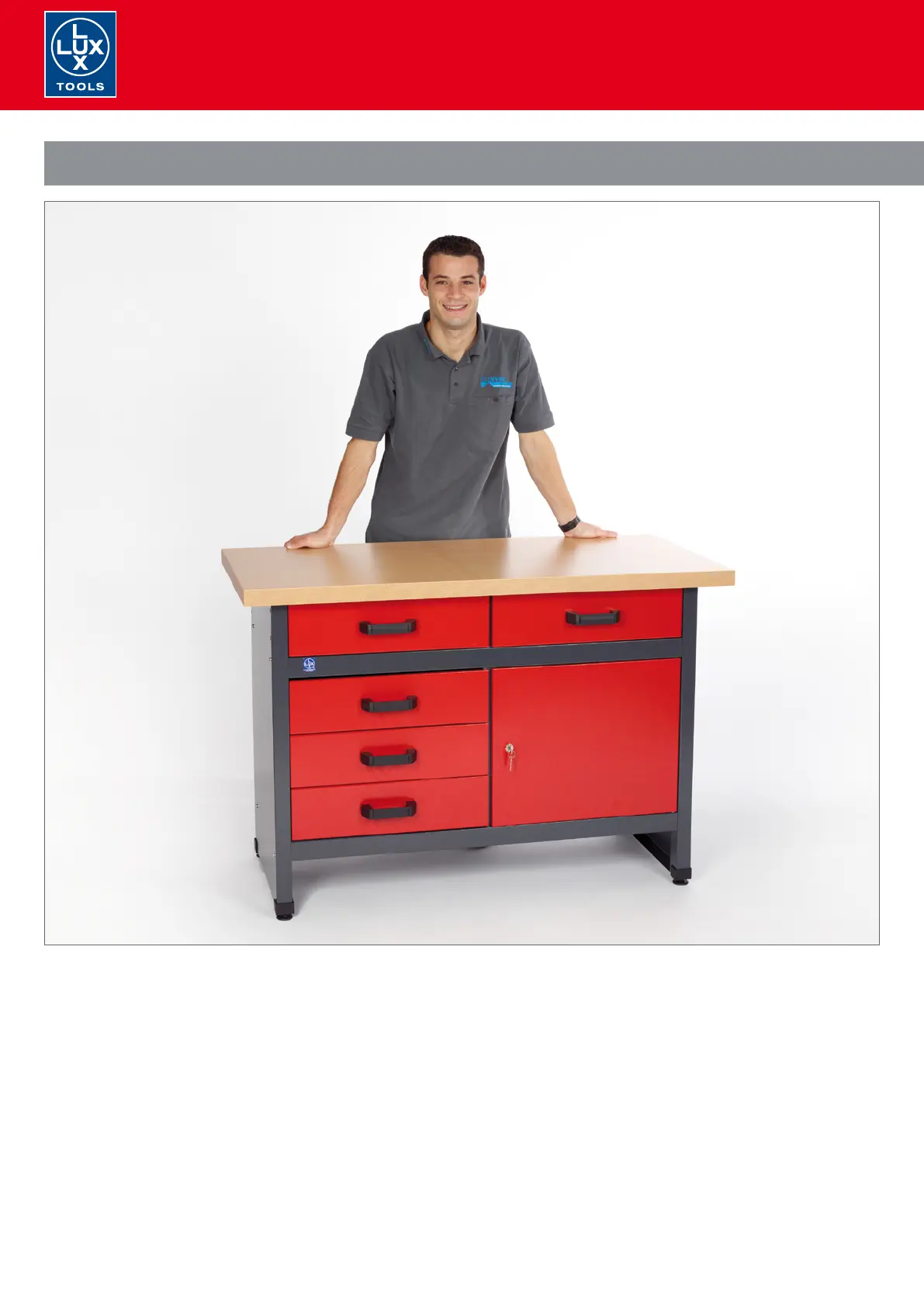

The LUX TOOLS workbench model 17040 is a robust and versatile workstation designed for various tasks, from DIY projects to professional workshop use. It features a durable worktop, multiple drawers for organized storage of tools and parts, and a cabinet with a door for larger items. The workbench is designed for stability and longevity, making it suitable for demanding environments. Its modular design allows for efficient assembly and potential future expansion or reconfiguration. The integrated storage solutions help maintain a tidy and efficient workspace, enhancing productivity and safety. The workbench is suitable for a wide range of applications, including carpentry, metalworking, electrical work, and general repairs.

Important Technical Specifications:

Dimensions (Assembled):
- Width: 120 cm
- Depth: 60 cm
- Height: 85 cm
Worktop Dimensions (Component Y): 1200 mm x 600 mm
Frame Components:
- Side Panel A: 772 mm x 475 mm (1 piece)
- Side Panel B: 772 mm x 475 mm (1 piece)
- Top Frame C: 1057 mm x 473 mm (1 piece)
- Bottom Frame D: 1057 mm x 473 mm (1 piece)
- Back Panel E: 985 mm x 480 mm (1 piece)
- Middle Support F: 645 mm x 450 mm (1 piece)
Drawer Components:
- Drawer Front K: 403 mm x 485 mm (1 piece)
- Drawer Slide L: 400 mm x 25 mm (1 piece)
- Drawer Body H: 450 mm x 445 mm (5 pieces)
- Drawer Front I: 485 mm x 130 mm (5 pieces)
- Drawer Body J: 450 mm x 120 mm (5 pieces)
Handles (Component Y with circle): 5 pieces
Drawer Dividers (Component Z): 10 pieces
Fasteners (Bag Content):
- Screws (5.5 x 19 mm): 6 pieces
- Screws (M8 x 16 mm): 10 pieces
- Screws (M5 x 10 mm): 18 pieces
- Washers (Ø 5.3 mm): 18 pieces
- Nuts (M5): 18 pieces
- Screws (M4 x 10 mm): 40 pieces
- Nuts (M4): 40 pieces
- Screws (M6 x 16 mm): 1 piece
- Washers (Ø 6.4 mm): 1 piece
- Nuts (M6): 1 piece
- Screws (6 x 12 mm): 1 piece
- E-clips: 1 piece
- Keys: 1 set
- Drawer Glides (Component X): 5 pieces (CR, DR, CL, DL types)
- Adjustable Feet: 4 pieces
- Nuts (M8): 14 pieces
Required Tools:
- Screwdrivers: PH 1 x 100, PH 2 x 100, Slotted 6.5 x 150
- Wrenches: SW 7, SW 8, SW 10, SW 13
- Drill bit: 4 mm
- Cordless drill
- Rubber mallet
- Hex key: 5 mm
- Pencil
- Measuring tape or ruler

Usage Features:

The workbench is designed for ease of use and maximum utility.

Spacious Worktop: The large 1200 mm x 600 mm worktop (Component Y) provides ample space for various tasks, accommodating tools, materials, and ongoing projects.
Integrated Storage:
- Drawers: Five drawers (composed of components H, I, J, L, and Y with circle) offer organized storage for smaller tools, fasteners, and accessories. The drawers are equipped with drawer glides (Component X) for smooth operation.
- Cabinet: A dedicated cabinet area (formed by components A, B, C, D, E, F, and K) provides secure storage for larger items, with a lockable door (Component K) for added security.
- Drawer Dividers: Ten drawer dividers (Component Z) allow for further customization and organization within the drawers, preventing items from shifting.
Adjustable Feet: The workbench is equipped with four adjustable feet, allowing for leveling on uneven surfaces and ensuring stability during use.
Durable Construction: Made from sturdy metal components, the workbench is built to withstand heavy use and provide a stable platform for various tasks. The red and grey color scheme provides a professional appearance.
Ergonomic Height: At 85 cm, the workbench height is designed to be ergonomic for most users, reducing strain during prolonged work.
Easy Assembly: The detailed instructions and clearly labeled components facilitate straightforward assembly, even for users with limited experience.

Maintenance Features:

Maintaining the LUX TOOLS workbench is simple, ensuring its longevity and continued performance.

Cleaning: The metal surfaces can be easily wiped clean with a damp cloth to remove dust, dirt, and spills. For stubborn grime, a mild detergent can be used. Avoid abrasive cleaners that could damage the finish.
Drawer Glide Lubrication: Periodically, the drawer glides (Component X) may benefit from a light application of lubricant to ensure smooth and effortless operation.
Fastener Checks: Regularly inspect all screws, nuts, and bolts to ensure they remain tight. Re-tighten any loose fasteners to maintain the structural integrity and stability of the workbench.
Worktop Care: The wooden worktop (Component Y) should be protected from excessive moisture and harsh chemicals. For heavy-duty use, consider using a protective mat or covering to prevent scratches and dents.
Rust Prevention: While the metal components are likely treated for rust resistance, in humid environments, it's advisable to keep the workbench dry and address any scratches or chips in the paint to prevent rust formation.
Key Management: Keep the provided keys (from the bag content) in a safe place to ensure access to the lockable cabinet.

The LUX TOOLS workbench 17040 is a practical and reliable solution for anyone needing a well-organized and sturdy workspace. Its thoughtful design, robust construction, and comprehensive storage options make it an invaluable asset in any workshop or garage.
