Luxaire HL8B024F4C - Physical and Electrical Data; Unit Specifications and Dimensions

2 Johnson Controls Unitary Products
1109434-FTG-A-0714
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

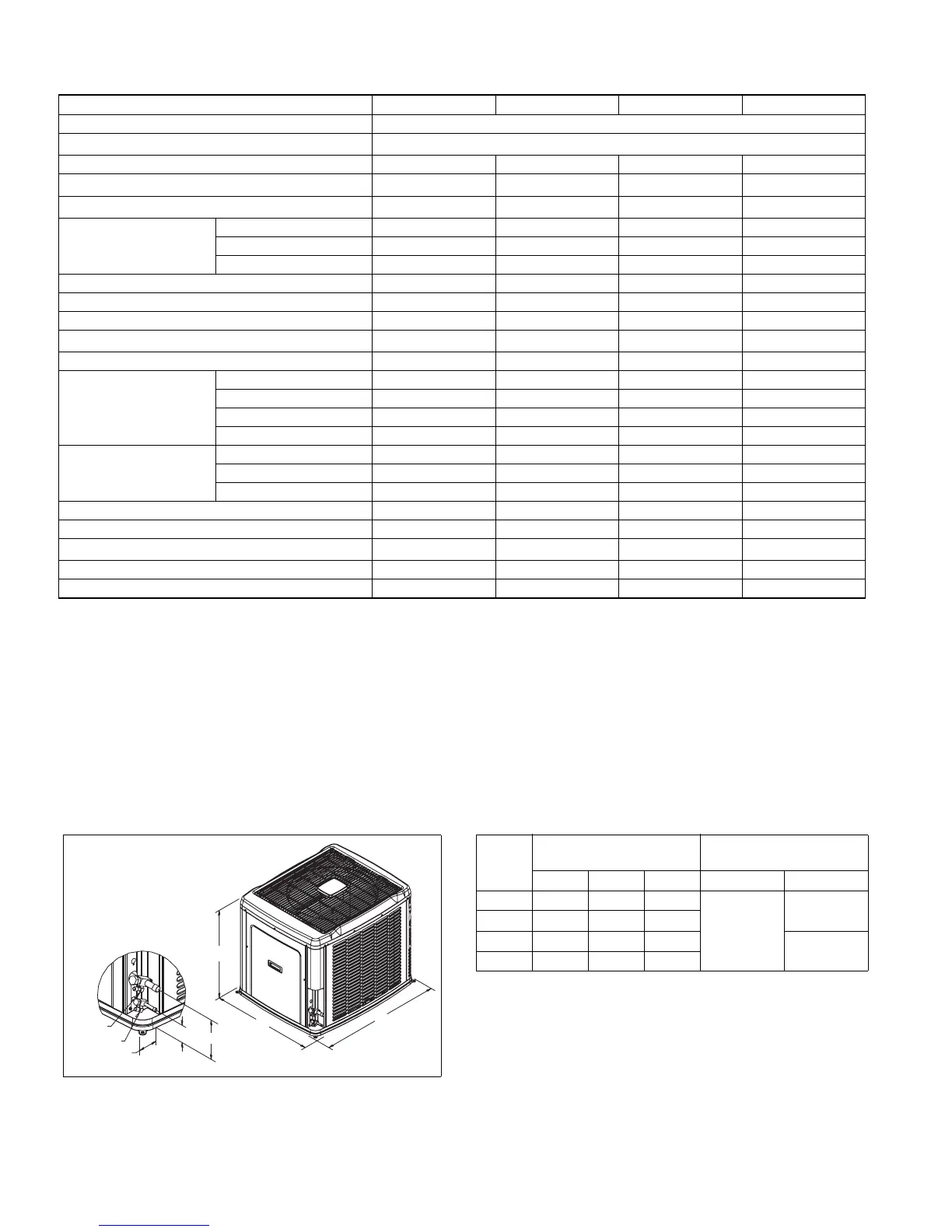

Physical and Electrical Data
MODEL
HL8B024F4(C) HL8B036F4(C) HL8B048F4(C) HL8B060F4(C)
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 17.5 21.8 29.2 36.9
Max. Overcurrent Device Amps
2
25 35 50 60
Min. Overcurrent Device Amps
3
20 25 30 40
Compressor Amps
Type 2-Stage Scroll 2-Stage Scroll 2-Stage Scroll 2-Stage Scroll
Rated Load 11.8 15.2 21.1 27.3
Locked Rotor 58 83 104 153
Crankcase Heater No No No No
Factory External Discharge Muffler Yes Yes Yes Yes
Factory External Check Valve No No No No
HS Kit Required with TXV
4
No No No No
Fan Diameter Inches 24 24 24 24
Fan Motor
Rated HP 1/3 1/3 1/3 1/3
Rated Load Amps 2.8 2.8 2.8 2.8
Nominal RPM 685 685 685 685
Nominal CFM 2990 3345 3300 3460
Coil
Face Area Sq. Ft. 23.6 23.6 23.6 23.6
Rows Deep 2222
Fins / Inch 16 16 14 14
Liquid Line OD (in) (Field Installed) 3/8 3/8 3/8 3/8
Vapor Line OD (in) (Field Installed) 3/4 3/4 7/8 7/8
Unit Charge (Lbs. - Oz.)
5
14 - 15 11 - 8 13 - 1 14 - 4
Charge Per Foot, Oz. 0.62 0.62 0.67 0.67
Operating Weight Lbs. 295 295 320 325
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or
subtract the amount of refrigerant, using the difference in actual lineset length (not equivalent length) multiplied by the per foot value.
VAPOR
LIQUID
2-3/8
3-1/8
6-1/2
C
A
B
Unit
Model
Dimensions
(Inches)
Refrigerant Connection
Service Valve Size
A B C Liquid Vapor
24 40 42-1/4 34
3/8
3/4
36 40 42-1/4 34
48 40 42-1/4 34
7/8
60 40 42-1/4 34
