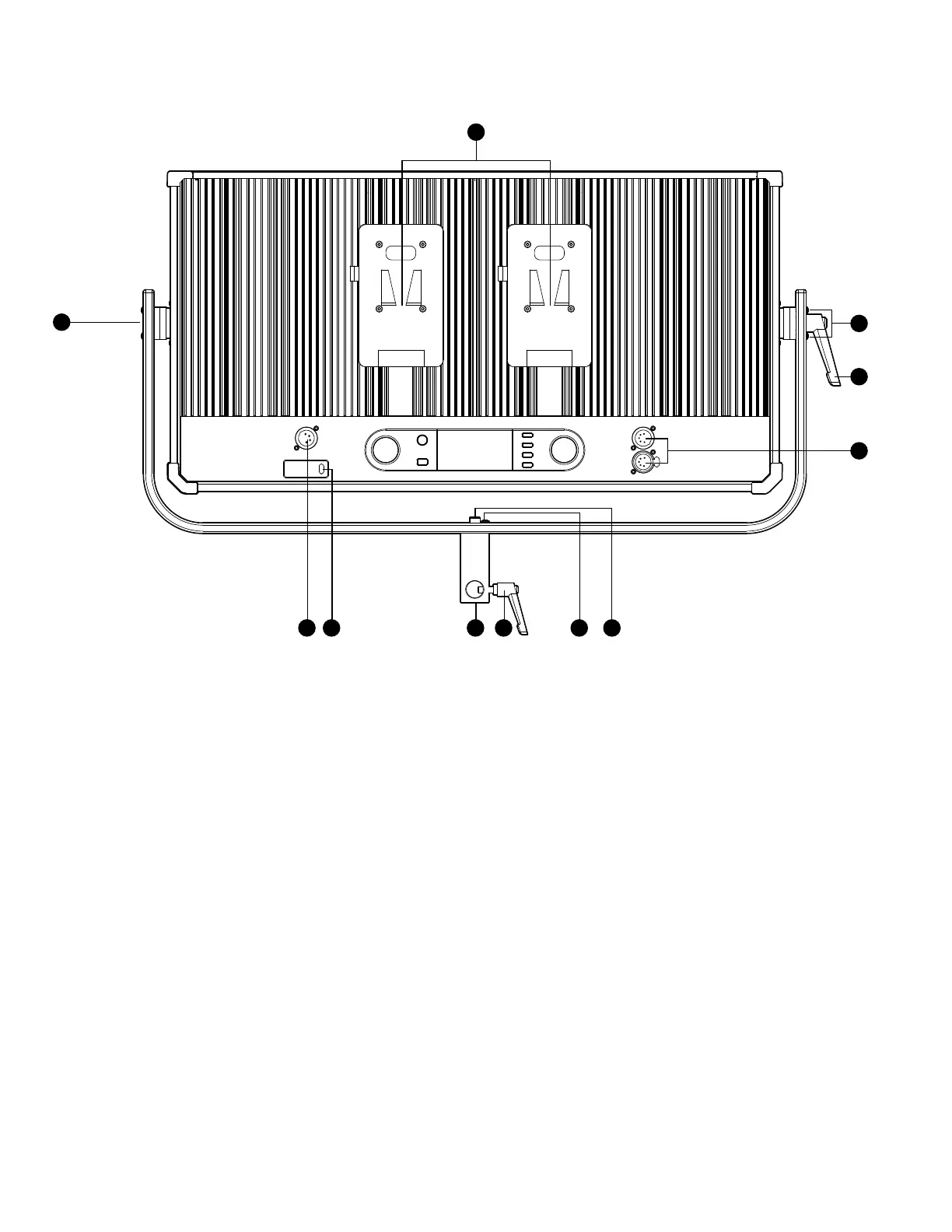

Overview
Back:
1. V-Mount battery plate
2. Tilt control screw
3. Power input
4. Micro-USB port for firmware updates
(visit luxlilight.com for details)
5. 5/8 in. receiver
Also included:
• ORC-TAIKO-D90 Diffusion panel
• Power supply with power cord
6. Locking handle
7. Outer mounting screw
8. Center mounting screw
9. 5-pin DMX in/out
10. Tilt lock handle
11. Adjust height hex screws
• Photometric calibration results data sheet
• QuickStart guide
3 5 6 7 84
1
9
11
2
10
