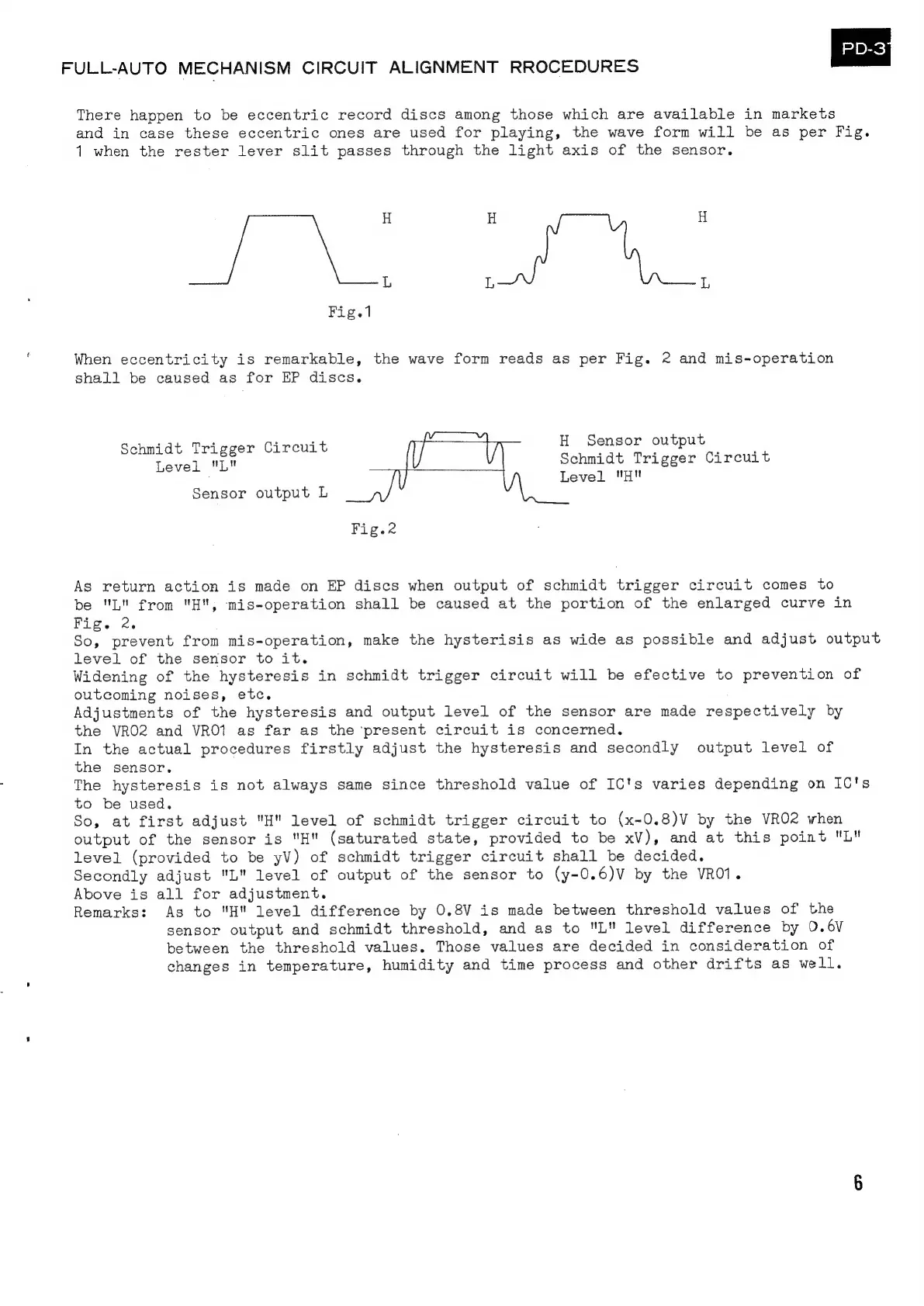

FULL-AUTO
MECHANISM
CIRCUIT
ALIGNMENT
RROCEDURES
There
happen
to
be
eccentric
record
discs
among
those
which
are
available
in
markets
and
in
case
these
eccentric
ones
are
used
for
playing,
the
wave
form
will
be
as
per
Fig.
1
when
the
rester
lever
slit
passes
through
the
light
axis
of
the
sensor.
f\
of
L
GE
L
Fig.1
When
eccentricity
is
remarkable,
the
wave
form
reads
as
per
Fig.
2
and
mis-operation
shall
be
caused
as
for
EP
discs.
H
Sensor
output
Schmidt
Trigger
Circuit
Level
"H"
Schmidt
Trigger
Circuit
Level
"L"
Sensor
output
L
Fig.2
As
return
action
is
made
on
EP
discs
when
output
of
schmidt
trigger
circuit
comes
to
be
"L"
from
"H",
mis-operation
shall
be
caused
at
the
portion
of
the
enlarged
curve
in
Fig.
2.
So,
prevent
from
mis-operation,
make
the
hysterisis
as
wide
as
possible
and
adjust
output
level
of
the
sensor
to
it.
Widening
of
the
hysteresis
in
schmidt
trigger
circuit
will
be
efective
to
prevention
of
outcoming
noises,
etc.
Adjustments
of
the
hysteresis
and
output
level
of
the
sensor
are
made
respectively
by
the
VRO2
and
VRO1
as
far
as
the
‘present
circuit
is
concerned.
In
the
actual
procedures
firstly
adjust
the
hysteresis
and
secondly
output
level
of
the
sensor.
The
hysteresis
is
not
always
same
since
threshold
value
of
IC's
varies
depending
on
IC's
to
be
used.
So,
at
first
adjust
"H"
level
of
schmidt
trigger
circuit
to
(x-0.8)V
by
the
VRO2
when
output
of
the
sensor
is
"H"
(saturated
state,
provided
to
be
xV),
and
at
this
point
"L"
level
(provided
to
be
yV)
of
schmidt
trigger
circuit
shall
be
decided.
Secondly
adjust
"L"
level
of
output
of
the
sensor
to
(y-0.6)V
by
the
VRO1.
Above
is
all
for
adjustment.
Remarks:
As
to
"H"
level
difference
by
0.8V
is
made
between
threshold
values
of
the
sensor
output
and
schmidt
threshold,
and
as
to
"L"
level
difference
by
0.6V
between
the
threshold
values.
Those
values
are
decided
in
consideration
of
changes
in
temperature,
humidity
and
time
process
and
other
drifts
as
well.
