11.2.3 MAC ACL RULE
MAC ACL Rules analyze and process packets based on a series of Match conditions
based on MAC Addresses, VLAN ID and Ether Type in the packet. They can analyze the
Source MAC Address, Destination MAC Address, VLAN ID and Ether Type
of the packets.
Choose the menu ACL>>ACL Confi g>>AC ACL RULE to load the following page.

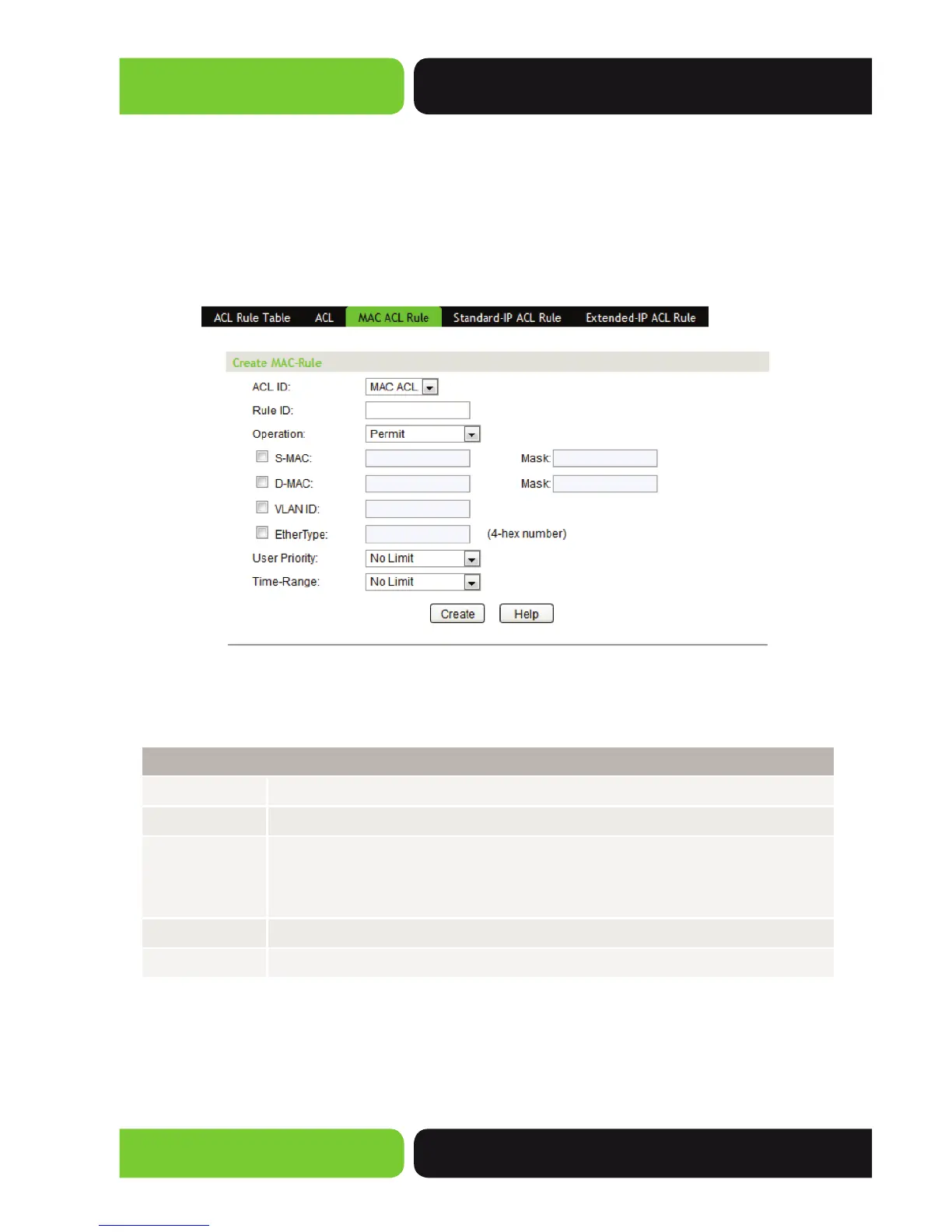

Figure11-6 MAC ACL Rule
The following entries are displayed on this screen:
Create MAC ACL RULE
ACL ID:
Select the desired ACL ID for confi guration.
Rule ID:
Enter the Rule ID.
Operation:
Select the operation the Switch will use to process packets.
Permit: Forward Packets.
Deny: Discard Packets.
S-MAC:
Enter the Source MAC Address to be contained in the Rule.
D-MAC:
Enter the Destination MAC Address to be contained in the Rule.
