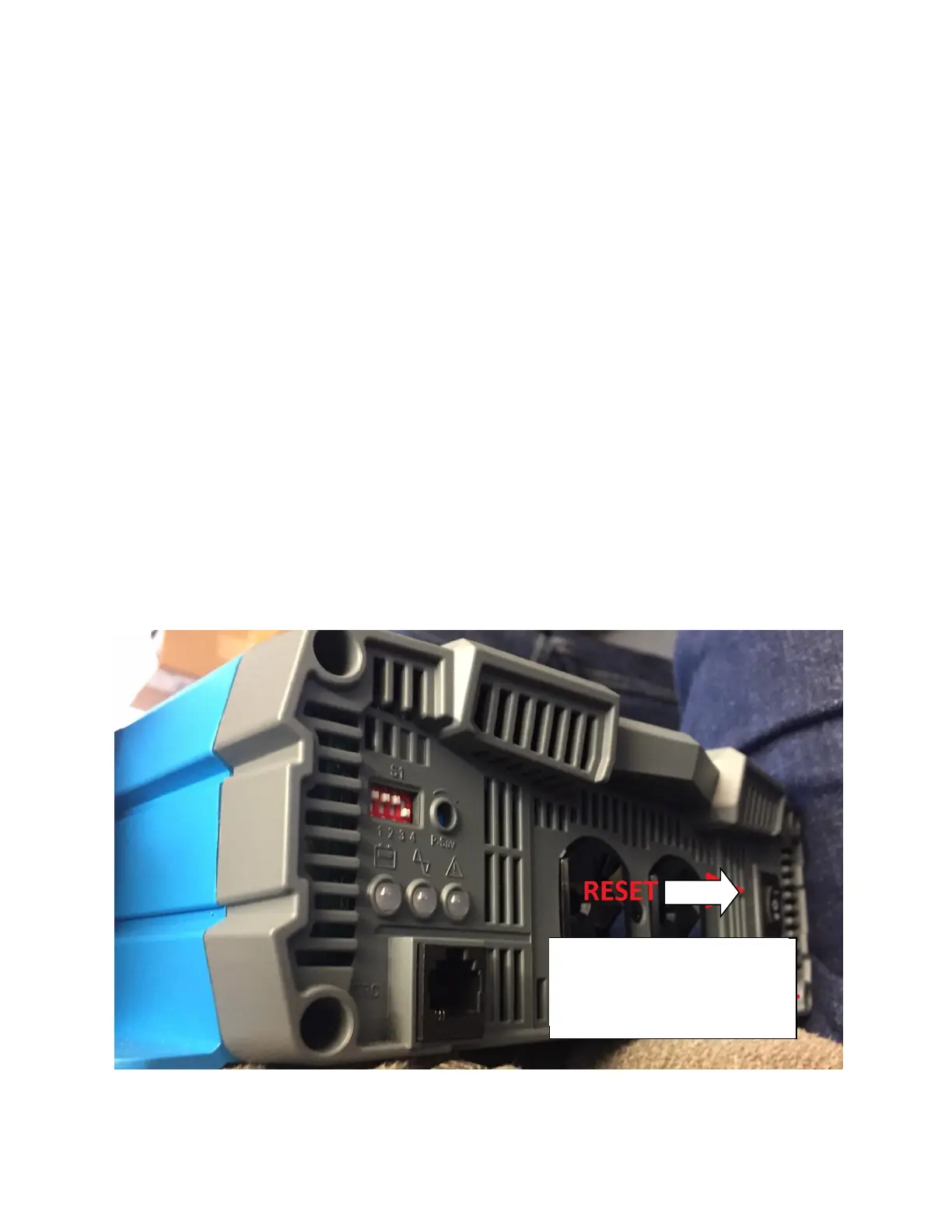

Note: The reset switch for the blue inverter is on the back right
side of the inverter. It is a 3 position rocker switch. You can
reach it by reaching around the black cord through the opening
in the metal side bracket and pressing the switch to the
middle(OFF) position, wait 5 seconds, then turn it back down
(ON).
You only need to use the reset when the three LED’s shown in
the left side of the picture are flashing or red. Normally they
should all be green.
If first light and last light are RED, indicates low battery.
Measure DC voltage on battery, it should be between 12.5-
13.8VDC.
Middle position is OFF
Bottom position is ON
Top position is not used
