Detail Information of Port

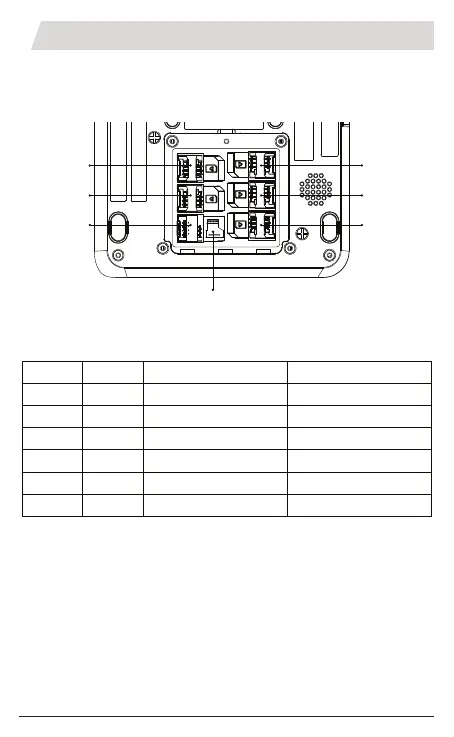

4.7 SAM Card (Bottom Side)
7
PIN No.
SAM Connector
1
2
Name
VCC
RST
I/O
P
O
Function
SAM Power
SAM Reset
3
5
CLK
GND
O
P
SAM Clock
Ground
7
4,6,8
DATA
-
I/O
NC
SAM Data
Not use
SAM2
SAM4
SAM6
SAM1
SAM3
SAM5
Micro SD Socket
