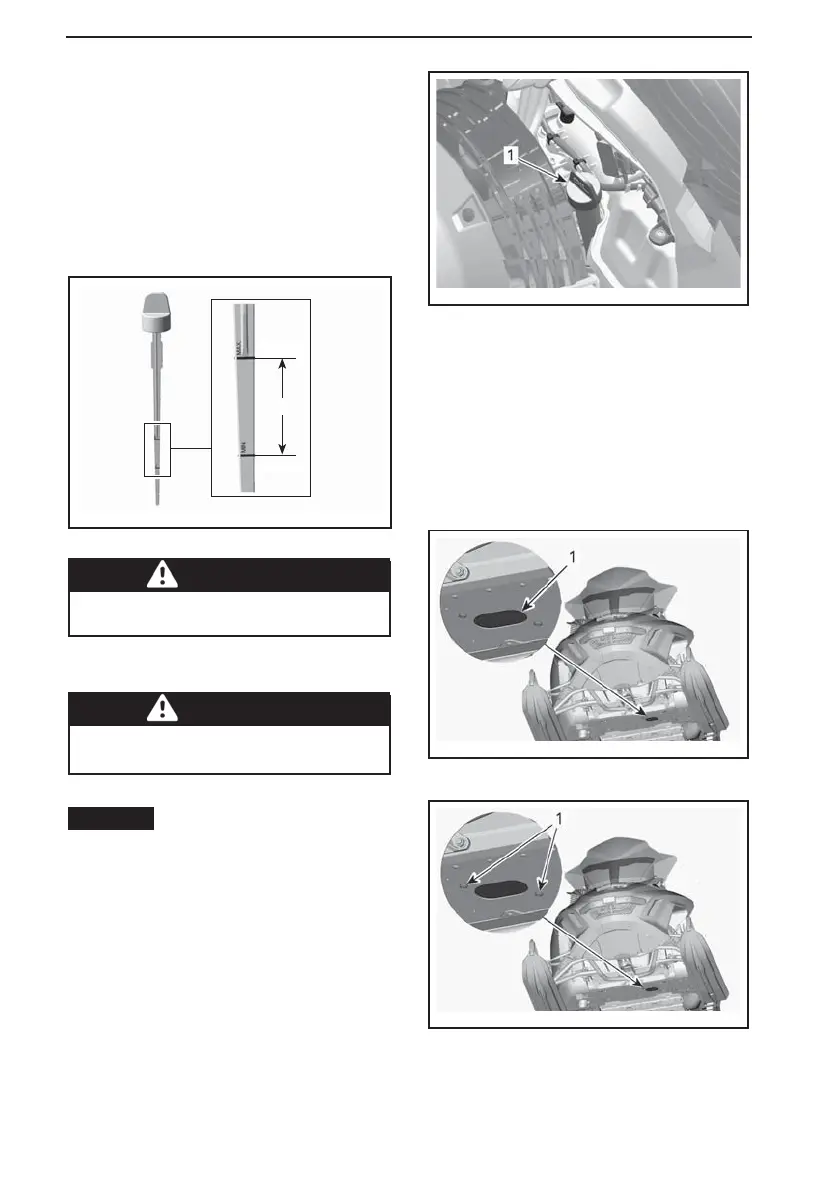

MAINTENANCE PROCEDURES
5. Remove dipstick from the filler tube,
then wipe it clean.
6. Completely insert dipstick in the
filler tube.
7. Remove dipstick and check the
oil level. Oil level should be be-
tween the MIN. and MAX. marks
as shown, add if necessary.
1
MAX.
MIN.
mmo2009-005-027_a
1. Oil level between MIN . and M AX.
WARNING
Wipe off any oil spills. Oil is highly
flammable when heated.
Engine Oil Replacement
WARNING
The engine oil can be very hot.
Wait until engine oil is warm.
NOTICE
Engine oil and oil filter
must be replaced at the same time.
1. Place vehicle on a level surface.
2. Remove the LH side panel.
3. Remove dipstick.
mmr2011-070-003_a
LH SIDE OF VEHICLE
1. Oil tank dipstick
4. From underneath the vehicle, ac-
cess the drain plug:
4.1 Remove one access cover re-
taining sc rew and loosen the
other.
4.2 Pivot the access c ov er t o clear
the bottom pan opening.
fmo2016-003-012_a
1. Drain plugs access cover
fmo2016-003-012_b
PIVOT THE ACCESS COVE
R
1. Retaining screws
5. Clean drain plug area.
104
