MAINTENANCE PROCEDURES
6. Place a drain pan under the bottom
pan opening.
7. Remove engine drain plugs in the
following order.
7.1 Main drain plug.
7.2 Secondary drain plug.
mmr2011-070-053_a

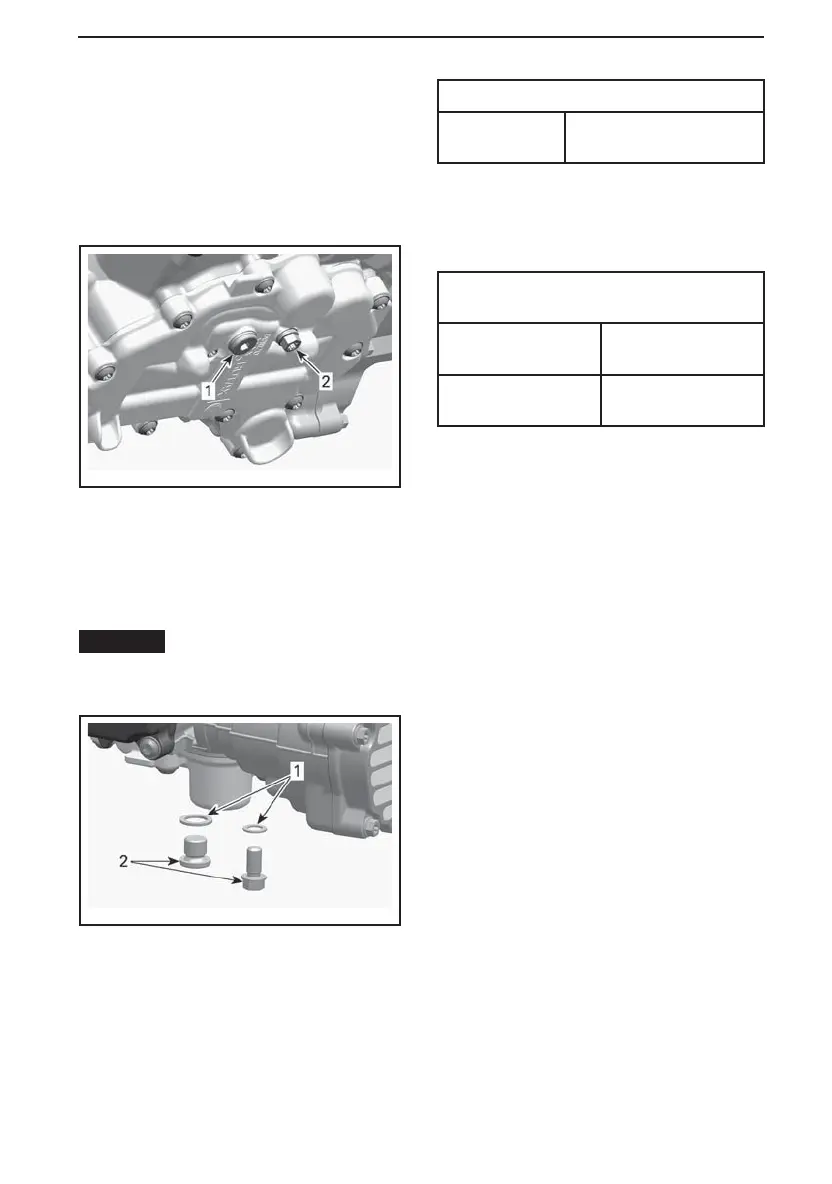

UNDERNEATH THE ENGINE
1. Main drain plug
2. S econdary drain plug
8. Allow oil to drain completely.
9. Install NEW sealing was hers on oil
drain plugs.
NOTICE
Never use a sealing
washer a second time. Always re-
place with a new one.
mmr2011-070-004_a
1. Sealing washer
2. Oil drain plug
10. Install drain plugs and tighten to
the specified torque.
TIGHTENING TORQUE
Drain plugs
15 N•m ± 1.8 N•m
(133 lbf•in ±16lbf•in)
11. Replace
OIL FILTER
, see proce-
dure in this subsection.
12. Refill oil tank at the proper level
with the recommended oil.
APPROXIMATE ENGINE OIL
CAPACITY (WITH FILTER)
600 ACE
2.1 L
(2.2 qt (U.S. liq.))
900 ACE
3.3 L
(3.5 qt (U.S. liq.))
13. Reinstall dipstic k in oil tank and
properly tighten it.
14. Start engine and let it idle for a few
minutes.
15. Ensure there are no leaks.
16. Stop engine and check oil level as
explained in this subsection. Refill
if necessary.
17. Dispose oil and filter as per your lo-
cal environmental regulations.
Engine Oil Filter (ACE)
Engine Oil Filter Replacement
Oil Filter Removal
1. Remove the RH side panel.
2. Clean oil filter area.
3. Remove:
– Oil filter cover screw s
– Oil filter cover with O-ring
– Oil filter.
______________
105
