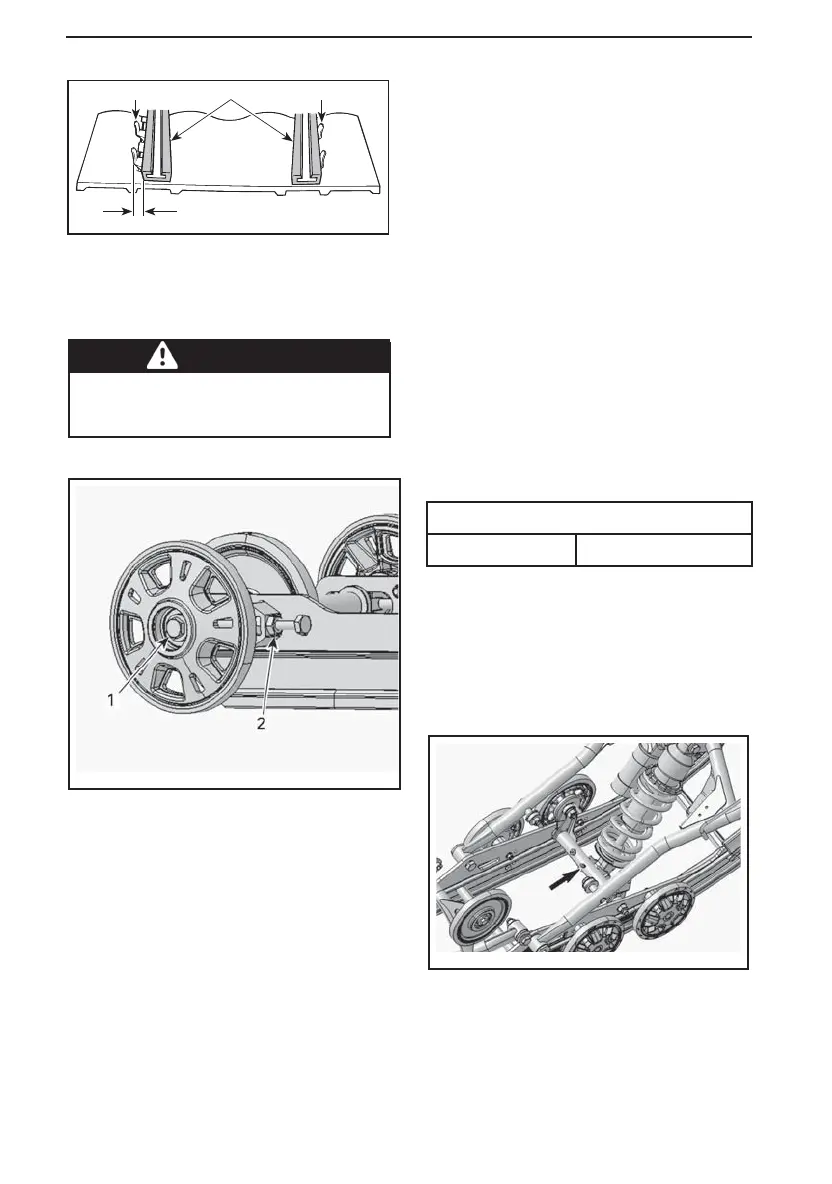

MAINTENANCE PROCEDURES
A01F0BA
1
2
3
1
1. Guides
2. Slider shoes
3. Tighten on this side
5. Tighten retaining screws.
WARNING
Properly tighten wheel retaining
bolts, otherwise wheel may come
off and cause track to “lock”.
fmo2015-004-011_a
TYPICAL
1. Retaining bolt - Retighten to
48 N•m ± 6 N•m (35 lbf•ft ± 4 lbf•ft)
2. Locknut
6. Restart engine and rotate trac
k
slowly to recheck alignment.
7. Reposition snowmobile on th
e
ground.
8. Install rear wheel caps
if so
equipped.
Suspension
Rear Suspension Condition
Visually inspect all suspension compo-
nents including slider shoes, springs,
wheels, etc.
NOTE: During normal driving, snow
will act as a lubricant and coolant for
the slider shoes. Extensive riding on
ice or sanded snow, will create exces-
sive heat build-up and cause prema-
ture slider shoe wear.
Suspension Stopper Strap
Condition
Inspect stopper strap for wear and
cracks, bolt and nut for tightness. If
loose inspect holes for deformation.
Replace as required. Torque nut to
specification.
TIGHTENING TORQUE
Nut 11Nm (97lbfin)
Rear Suspension Lubrication
Lubricate rear suspension at grease
fittings using SUSPENSION GREASE
(P/N 619 590 193.) Refer to
MAINTE-
NANCE SCHEDULE
for maintenance
frequency.
fmo2015-004-008_a
TYPICAL PPS2 GREASE FITTIN G S (F RO N T)
118
