MAINTENANCE PROCEDURES
E- TEC Electric Start
fmr2014-001-021_a

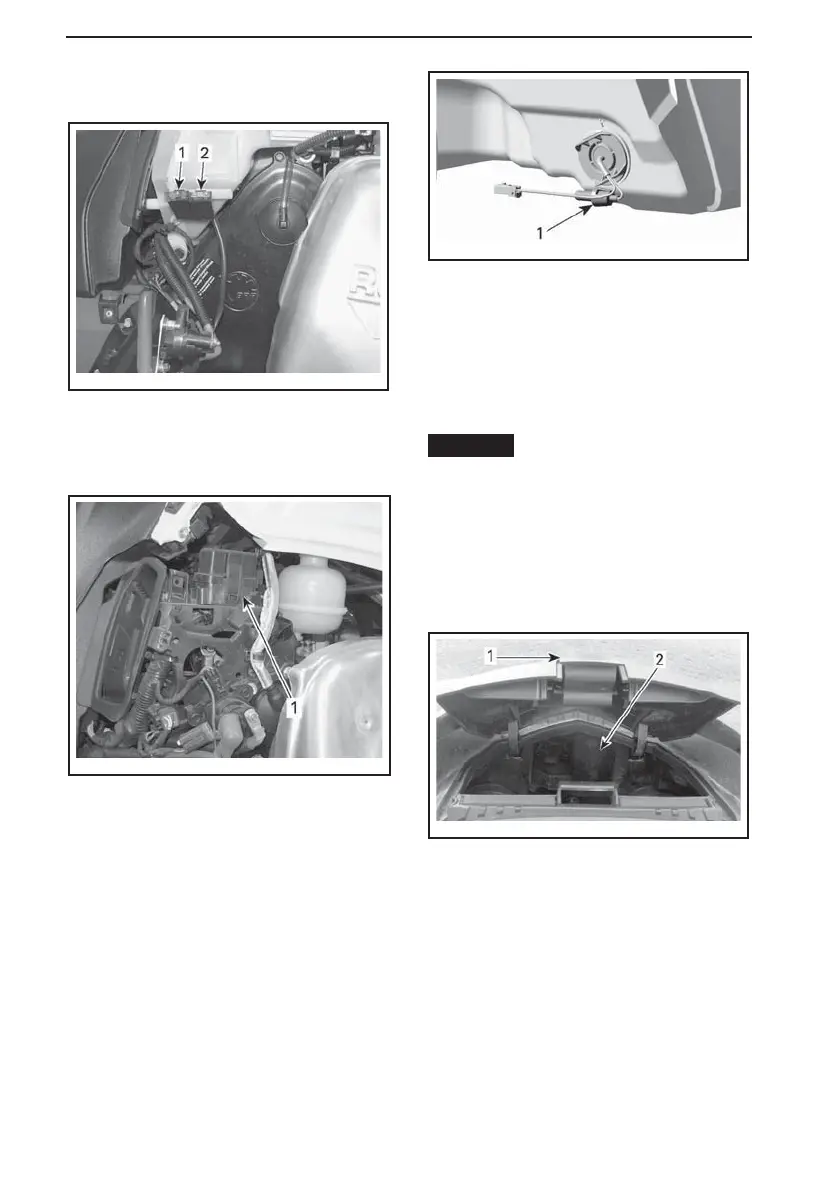

RH SIDE OF ENGINE COMPARTMENT
1. Charging fuse
2. START/RER fuse
600 ACE and 900 ACE
fmo2014-002-029_a
TYPICAL - RH SIDE OF ENGINE
COMPARTMENT
1. Fuse Box
Refer to the cover decal or the
SPECI-
FICATIONS
subsection of this guide for
fuses identification.
The electric fuel level sender fuse is lo-
cated behind the air intake silencer.
mmo2007-009-016_b
BEHIND AIR INTAKE SILENCER
1. Fuse location - 0.25 A fuse
Lights
Always check light operation after bulb
replacement.
Headlights Bulb Replacement
NOTICE
Never touch glass portion
of an halogen bulb with bare fingers,
it shortens its operating life. If glass
is touched, clean it with isopropyl al-
cohol which will not leave a film on
the bulb.
1. Open the front storage compart-
ment by pulling the tab.
mmo2013-004-017_a
1. Tab
2. Storage compartment
2. Remove the applicable rubber boot.
120
