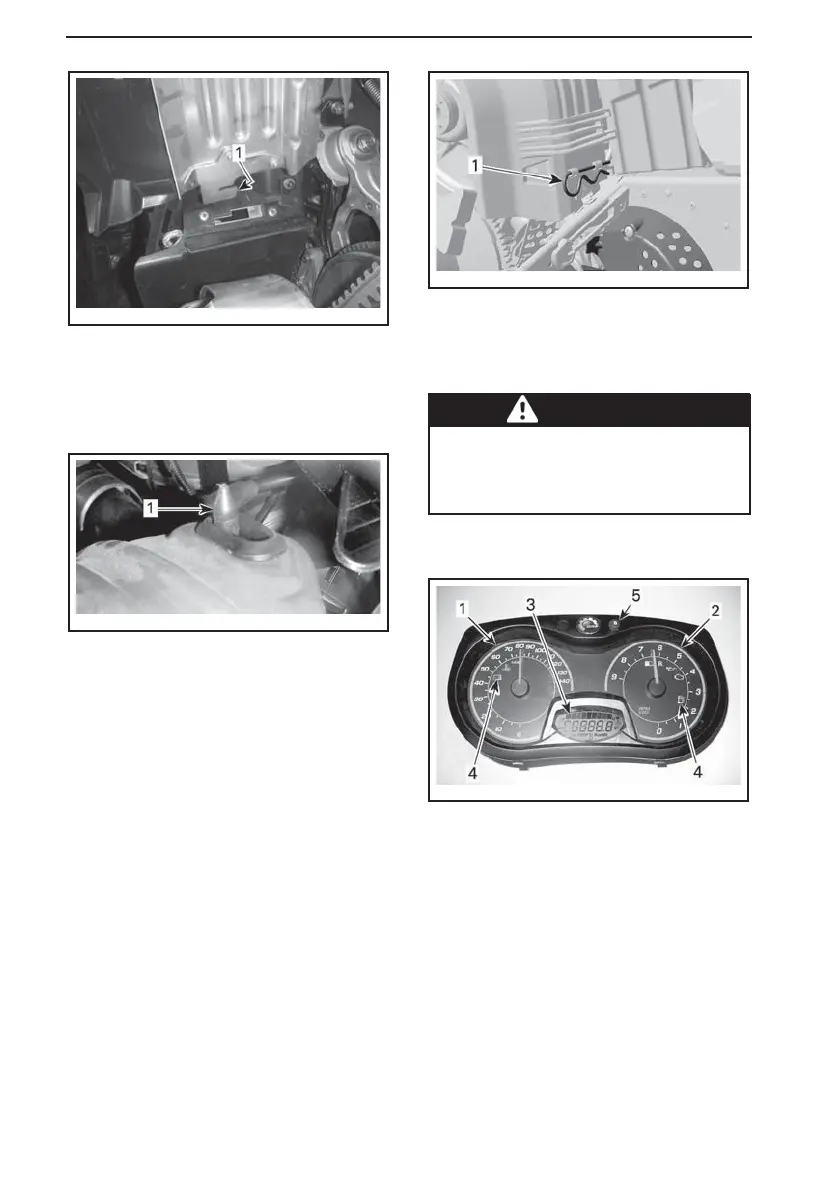

CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2013-004-024_a
TYPICAL
1. Tab
Position the grommet over the retain-
ing rod. It may be necessary to slightly
lift the console to make room.
mmo2009-003-011_a
1. Retaining rod
Position rear portion of the drive belt
guard over the retainer and sec ure it
using the retaining pin.
NOTE: The drive belt guard is pur-
posely m ade slightly oversize to main-
tain tension on its pins and retainers
preventing undue noise and vibra-
tion. It is important that this tension
be maintained when reinstalling.
mmo2008-003-063_a
1. Re taining pin
10) Gauge
ACE Models
WARNING
Reading the gauge digital display
can distract from the operation of
the vehicle, particularly from con-
stantly scanning the environment.
Gauge Description
mmo2014-002-001_a
ANALOG/DIGITAL GAUG E (STAN DA RD)
1. Speedometer
2. Tachometer (RPM)
3. G auge Digital Display
4. G au ge Pilot Lamps
5. G au ge SET “S” button
NOTE: The gauge is factory preset in
metric units but it is possibl
e to change
it to Imperial units, contact an autho-
rized Lynx dealer for unit settings.
1) Speedometer
Measures vehicle speed (in miles per
hour or kilometers per hour depending
on the setting).
46
