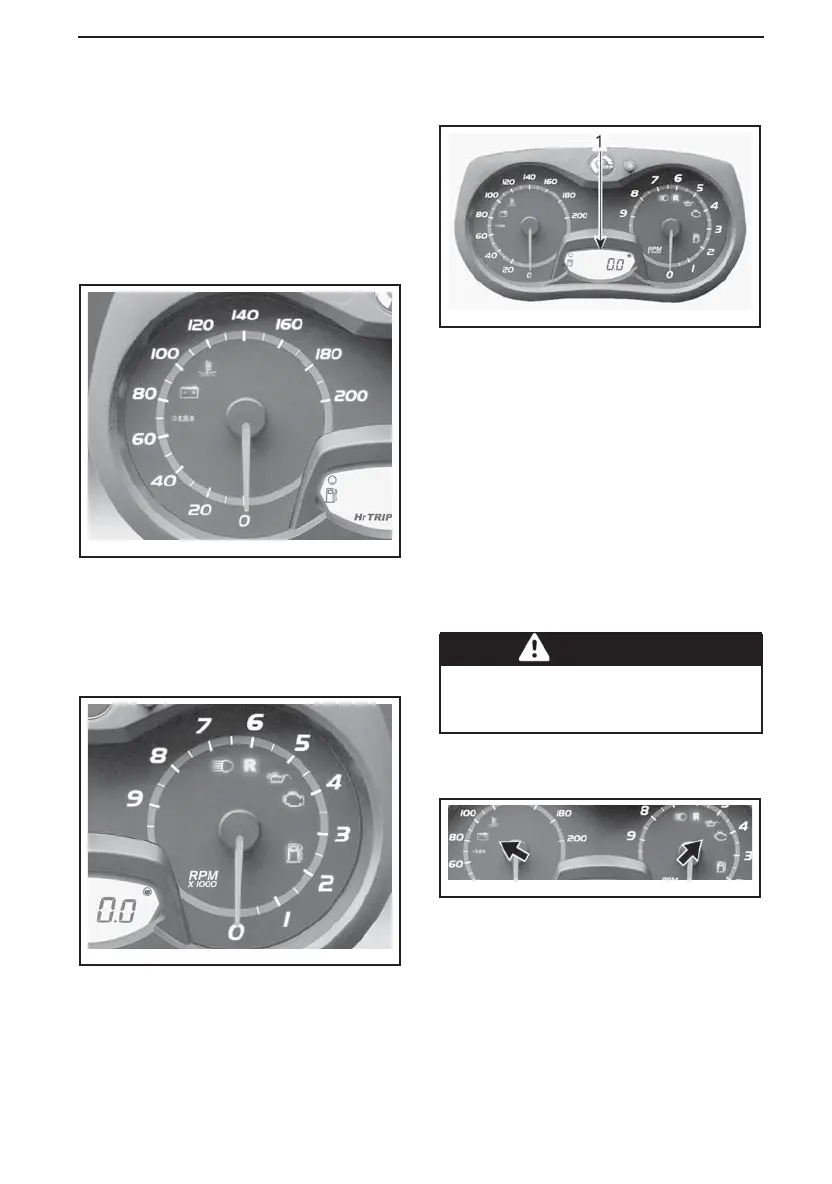

CONTROLS, INSTRUMENTS AND EQUIPMENT
NOTE: The gauge is factory preset in
metric units but it is possible to change
it to Imperial units, contact an autho-
rized Lynx dealer for unit settings.
1) Speedometer
Measures vehicle speed (in miles per
hour or kilometers per hour depending
on the setting).
mmo2008-003-014
LH PORTION OF GAUGE
2) Tachometer (RPM)
Measures engine revolution per
minute (RPM). Multiply by 1000 to ob-
tain the actual revolutions.
mmo2008-003-019
RH PORTION OF G AU GE
3) Digital Display
mmo2008-003-013_h
1. D igital display
The multifunction display is used to:
– Display the WELCOM E message
on power up
– Display the KEY recognition mes-
sage
– Provide various indications as se-
lected by the operator
– Activating or changing various func-
tions or m odes of operation
– Display scrolling messages of func-
tion activation or system faults
– Display fault codes.
WARNING
Never adjust or set functions on
the multifunction gauge while rid-
ing the vehicle.
4) Pilot Lamps and Messages
mmo2008-003-024_a
TYPICAL — PILOT LAMPS
See table below for usual pilot lamps
information. R efer to
MONITORING
SYSTEM
for details on malfunction pi-
lot lamps.
_______________
51
