CONTROLS, INSTRUMENTS AND EQUIPMENT
20) Rear Rack
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objec ts. Excessive
weight in rack may reduce steering
ability. Always readjust suspen-
sion according to the load. The
capacity of this rack is limited, the
MAXIMUM cargo load is 15.8 kg
(35lb). Rideatverylowspeed
when loaded. Avoid speed over
bumps.
49 Ranger Model
CAUTION Always readjust
suspension according to the load.
The capacity of this rack is limited,
theMAXIMUMcargoloadis25kg
(55.1 lb). Ride at very low speed
when loaded. Avoid speed over
bumps.
21) Seat
WARNING
Any passenger m ust be able to
firmly lay is feet on the footrests
and keep his hands on the hand-
holds at all times when seated.
Respecting those physical crite-
ria is important to ensures that the
passenger is stable and to reduce
the risks of ejection.
Passenger seat with backrest.
WARNING
– Read operator’s guide and get
acquainted with the instructions
before remove seat from the
snowmobile.
– Make sure seat is securely
latched before riding.

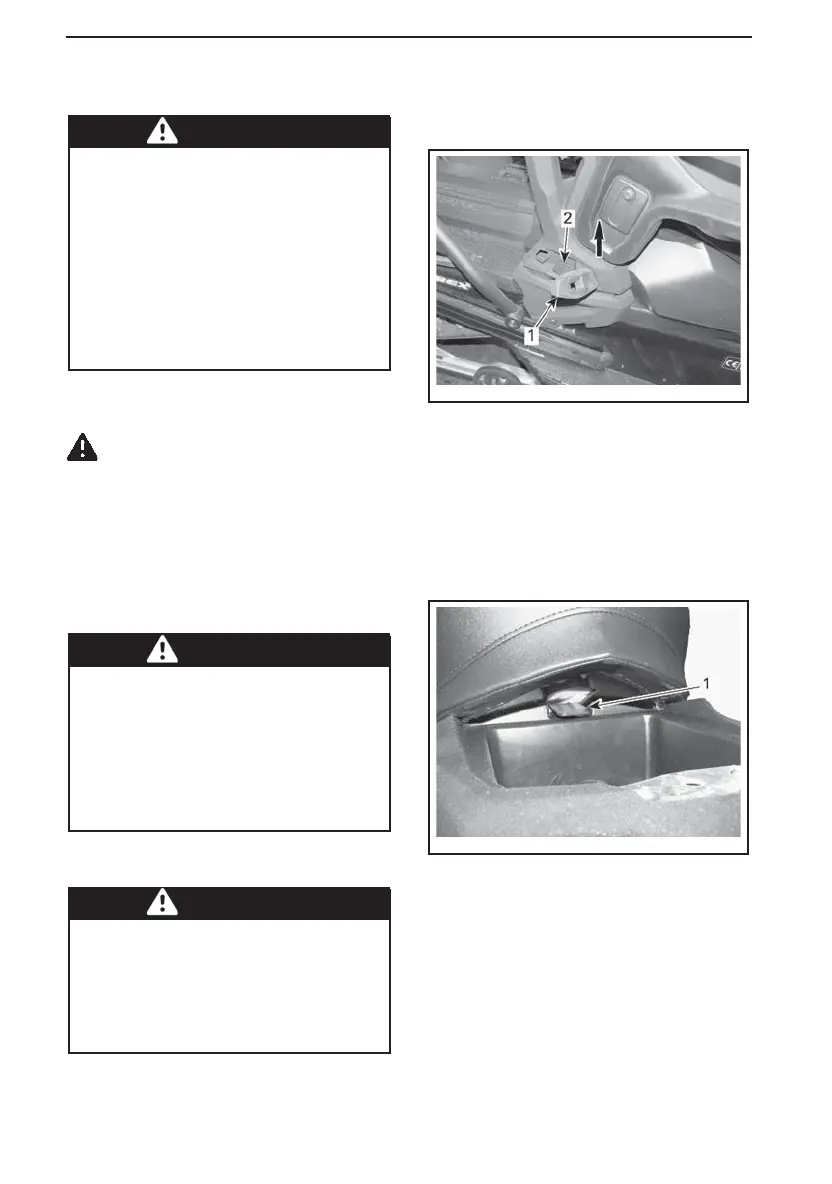

1. Pull up the rubber tabs.
2. Open The LINQ Attachments.
3. Lift the backrest.
fmo2015-004-033_b
1. Rubber tab
2. LINQ Attachment
4. Refer to the decal located on the RH
backrest bracket and locate back-
rest until it latches in position.
22) Seat Latch
Located under the seat.
fmo2014-001-011_a
1. Seat Latch
Se at Removal
Adventure LX and Touring kit Models
Remove the backrest.
Al l
Remove the storage/battery compart-
ment cover.
72
