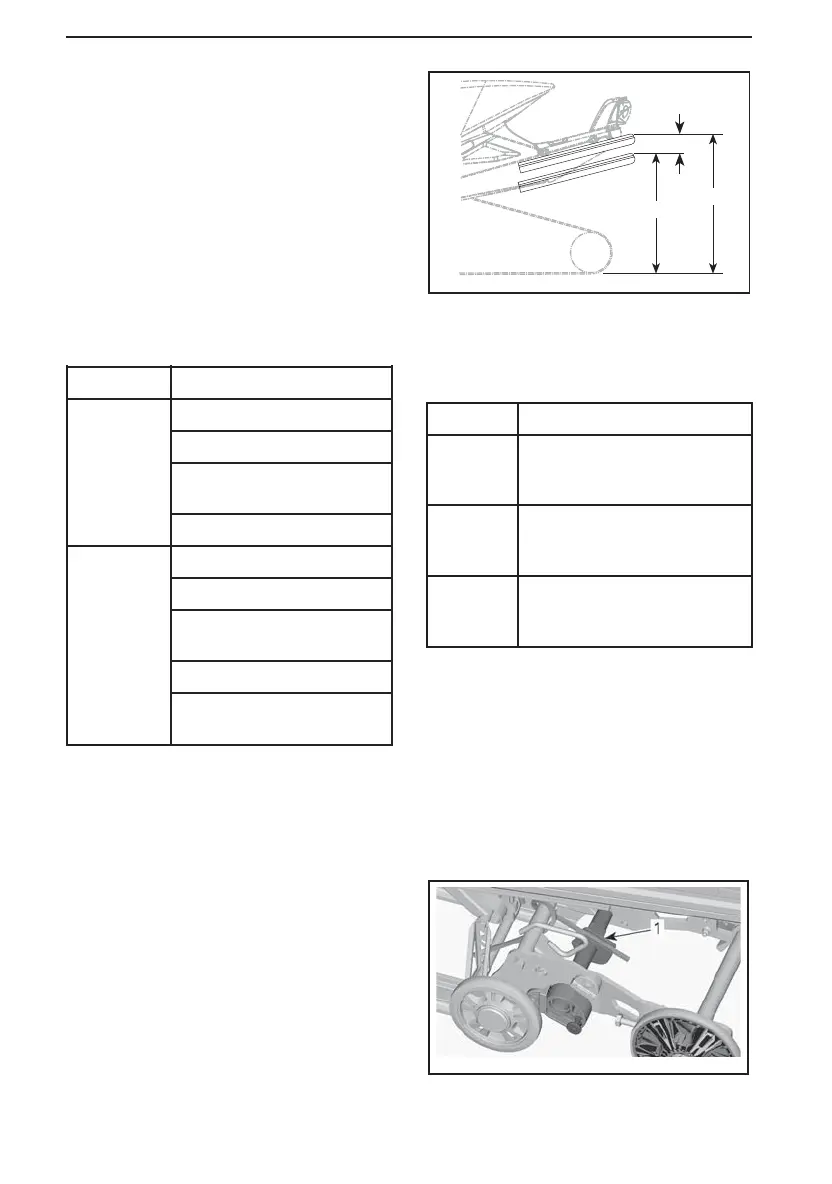

TUNE YOUR RIDE
Rear Spring
Rear spring preload has an effect on
comfort, ride height and load compen-
sation.
Also, adjusting rear spring preload
shifts more or less weight to the snow-
mobile front end. As a result, more or
less weight is applied to the s kis. This
has an effect on performance in deep
snow, steering effort and handling.
Slight suspension bottoming occurring
under the worst riding conditions indi-
cates a g ood choice of spring preload.
ACTION RESULT
Firmer rear suspension
Higher rear end
More bump absorption
capability
Increasing
preload
Heavier steering
Softer rear suspension
Lower rear end
Less bump absorption
capability
Lighter steering
Decreasing
preload
Better deep snow
performance an d hand lin g
Refer to the following to determine if
preload is correct.
C
B
A
mmo2006-003-022_a
TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. Suspension has collapsed with operator,
passenger and load added
C. Distance between dimension “A” and “B”,
see table below
”C” WHAT TO DO
50 to
75 mm
(2 to 3 in)
No adjustment required
More than
75 mm
(3 in)
Adjusted too soft, increase
preload
Less than
50 mm
(2 in)
Adjusted too firm, decrease
preload
NOTE: If the specification is unattain-
able with the original springs, see an
authorized Lynx dealer for other avail-
able springs.
Rear Suspension Extension Spring
Preload
449 Ranger Only
Adjust by turning the preload cam.
mbl2012-004-001_b
1. Preload cam
90
