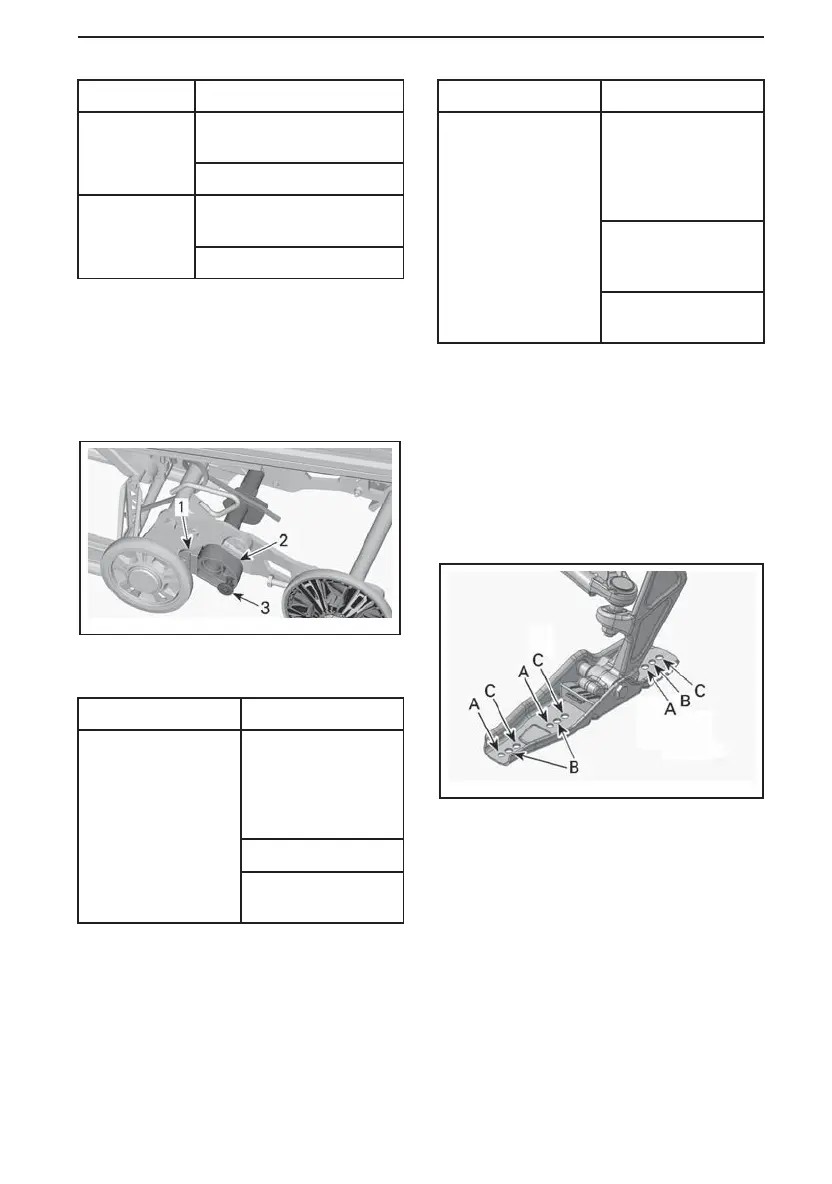

TUNE YOUR RIDE
ACTION RESULT
More track surface on
the ground
Increasing
preload
Less extension lift
Better reverse capability
especially in deep snow
Decreasing
preload
More extension lift
Rear Suspension Extension
Stabilizer Cam
49 Ranger Only
To change stabilizer cam setting, pull
lock off, then turn cam.
mbl2012-004-001_a
1. S top block
2. Stabilizer cam
3. Lock
CAM SETTING RESULT
Allows free
movement of
the suspension
extension on its
entire stroke
General use
Away from stop
block
Good reverse
capability
CAM SETTING RESULT
Locks the
suspension
extension in
line with the
suspension rails
Better traction,
full track contact
surface
Leaningonstop
block
Better tow ing
capability
Front Suspension
Adjustments
Skis
It is possible to set the ski to three dif-
ferent position.
Standard position for Ski is that Ski run-
ner is installed on center holes.
fmo2014-002-027_a
BLADE SKI
A. Light control -for deep snow riding
B. Standard - Trail riding
C. Stable control
49 Ranger Mode ls
On these models, it is possible to set
the ski stance to two different width.
When the spacer is installed inside the
ski leg, skis are set to the narrower
stance.
When the s pa cer is installed outside
the ski leg, skis are set to the w ider
stance.
