LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com
ionic-100

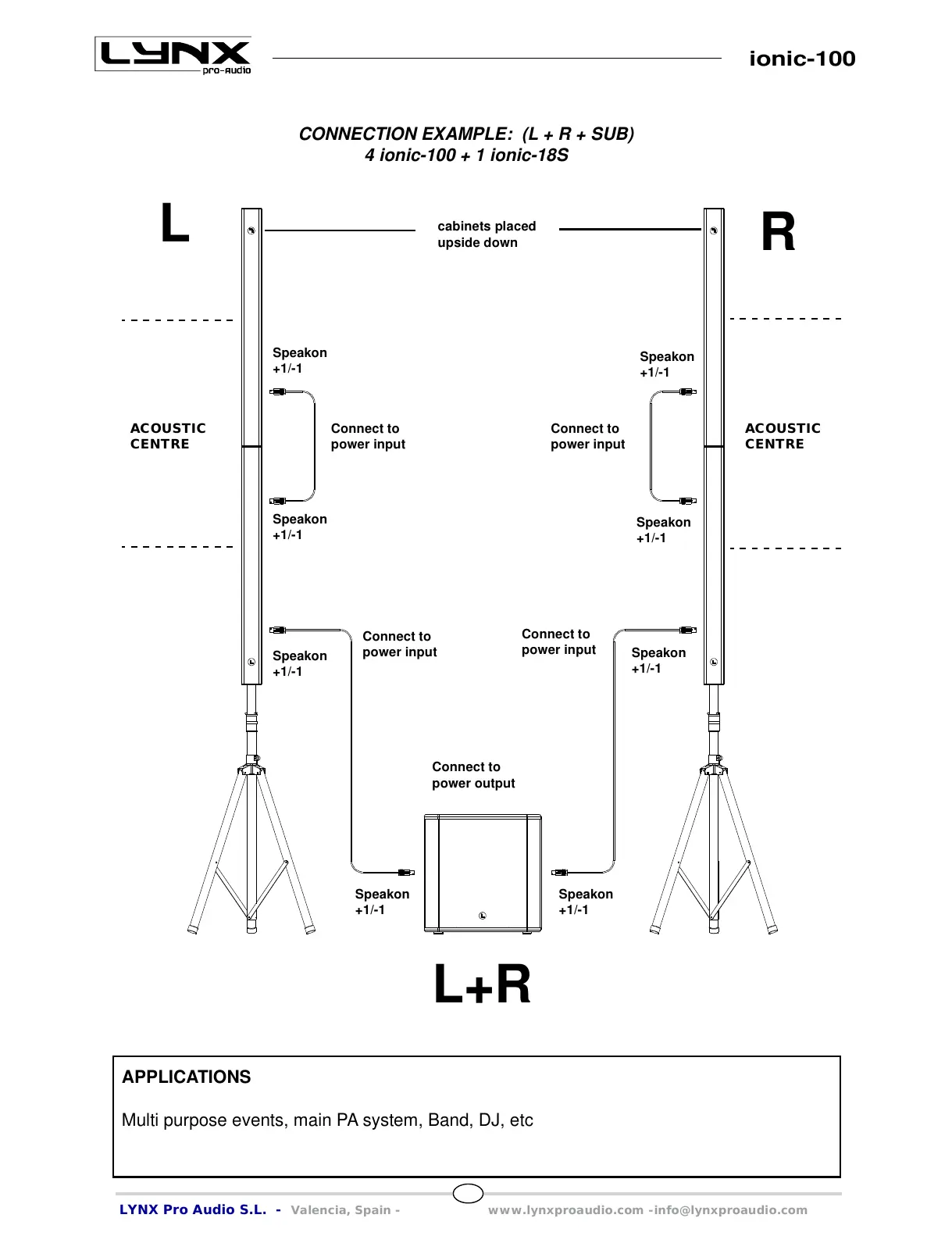

CONNECTION EXAMPLE: (L + R + SUB)
4 ionic-100 + 1 ionic-18S
Connect to
power input
Connect to
power input
Connect to
power output
ACOUSTIC
CENTRE
ACOUSTIC
CENTRE
Connect to
power input
Connect to
power input
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
L
L+R
R
APPLICATIONS
Multi purpose events, main PA system, Band, DJ, etc
cabinets placed
upside down
