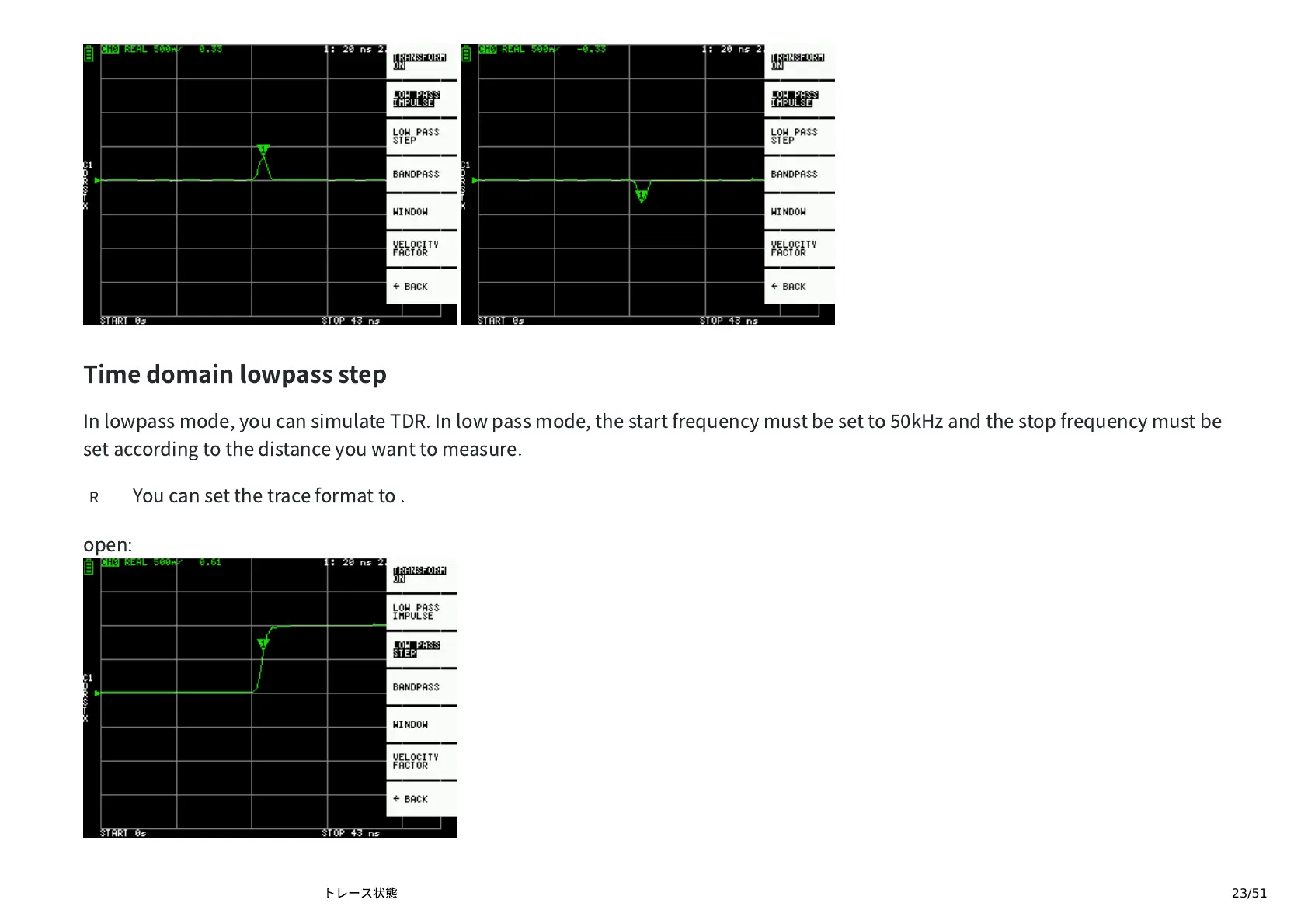

Time domain lowpass step
In lowpass mode, you can simulate TDR. In low pass mode, the start frequency must be set to kHz and the stop frequency must be
set according to the distance you want to measure.
REAL You can set the trace format to .
open:
