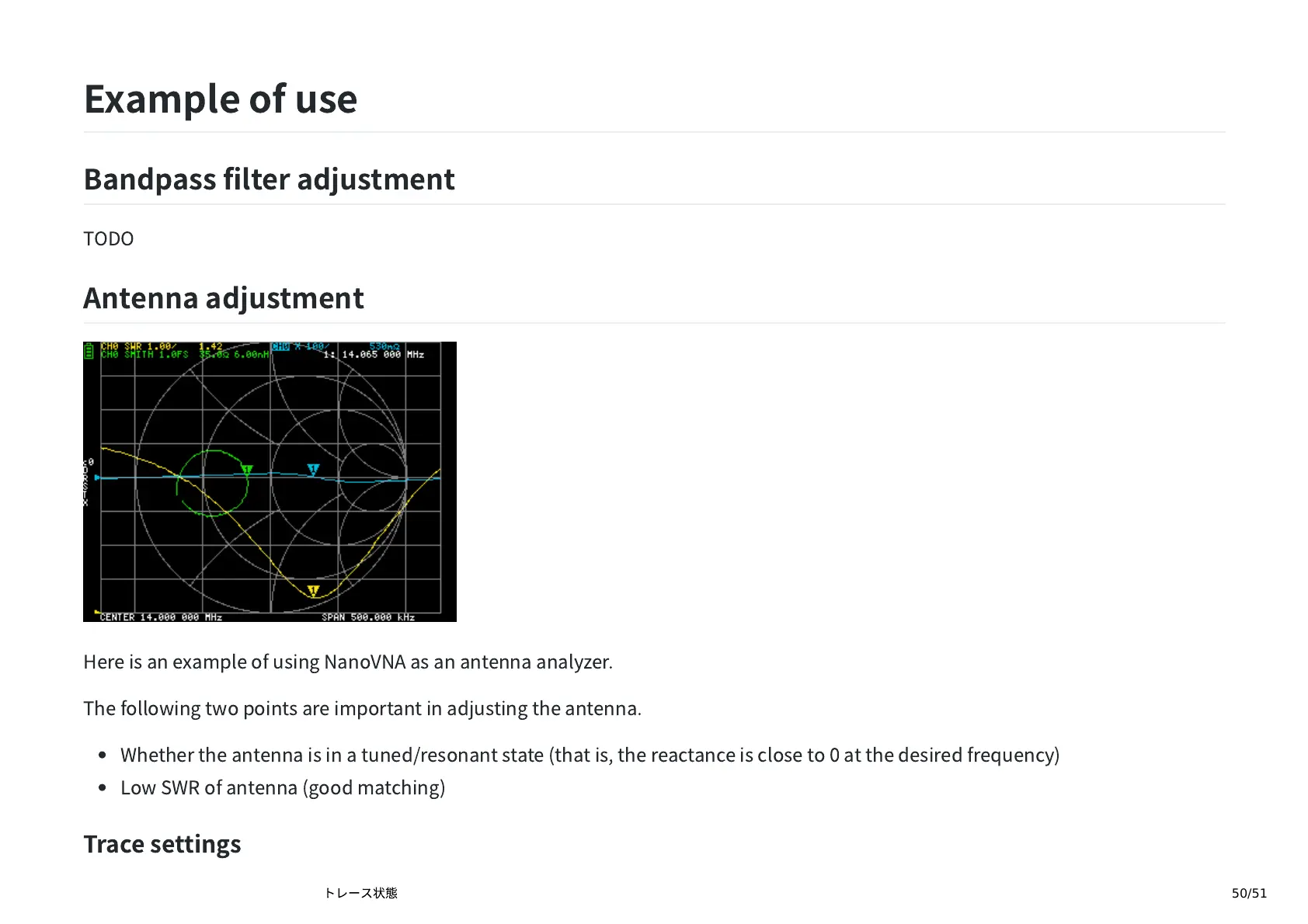

Example of use
Bandpass lter adjustment
TODO
Antenna adjustment
Here is an example of using N anoV N A as an antenna analyzer.
The following two points are important in adjusting the antenna.
Whether the antenna is in a tuned/resonant state (that is, the reactance is close to 0 at the desired frequency)
Low SWR of antenna (good matching)
Trace settings
