M-B Companies Work Instruction
Title: MSV Wheel Motor Installation Document #: WIAS 0084
Prepared By: Todd Meyer Approved By: TM Approval Date: 09/11/2014
Revised By: Revision Date: Revision:

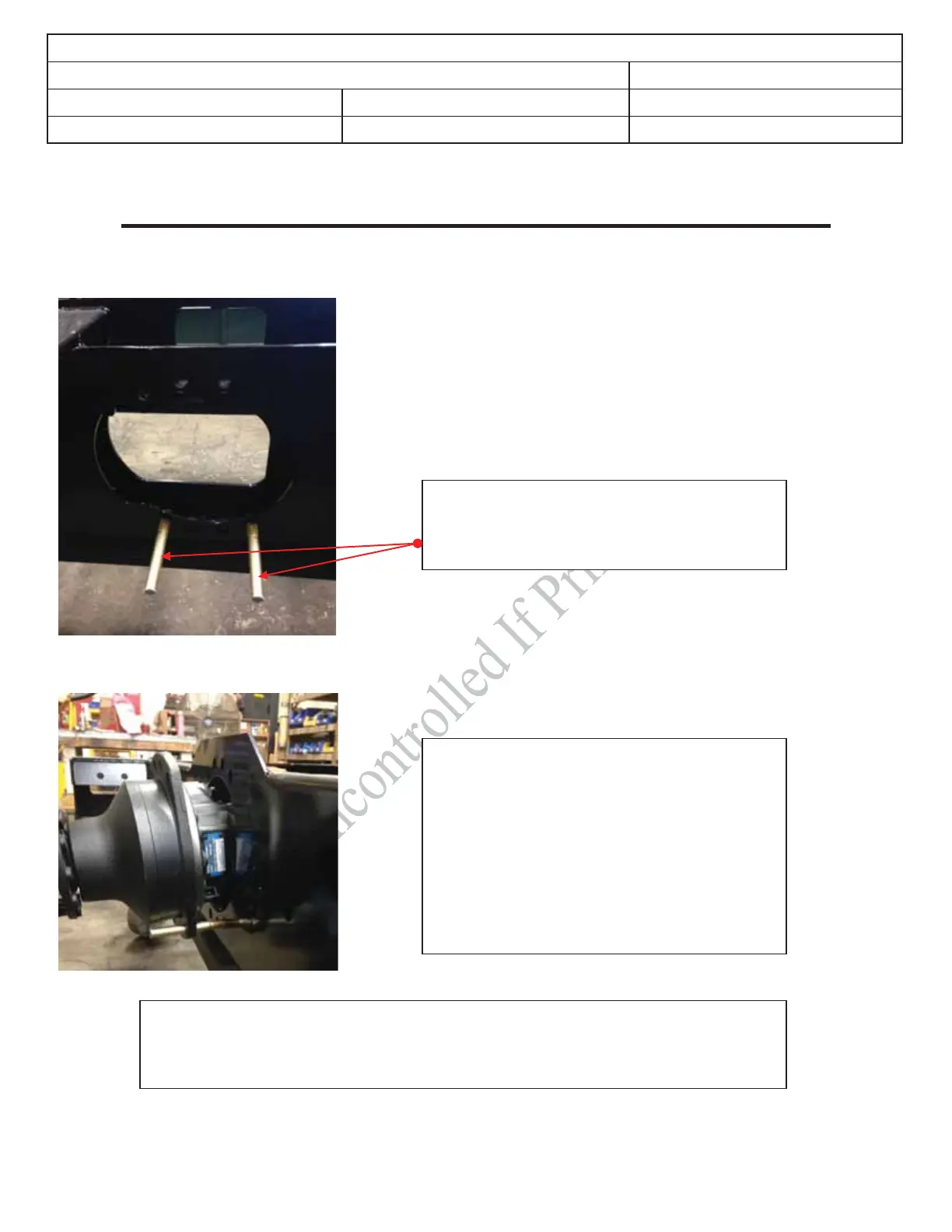

MSV Wheel Motor Installation
Turn supplied studs into two of the bottom bolt
holes.
Lift motor up to the frame, align the two studs
with the corresponding holes in the motor and
slide the motor into place. Then install bolts to
hold the motor in and remove the installation
studs. Finally complete that installation of the
motor.
****** Note: Using these studs will protect the speed sensor from damage during the
installation and removal of the wheel motors. *******
