M3 Mobile OX10 User Manual

Application usage
36

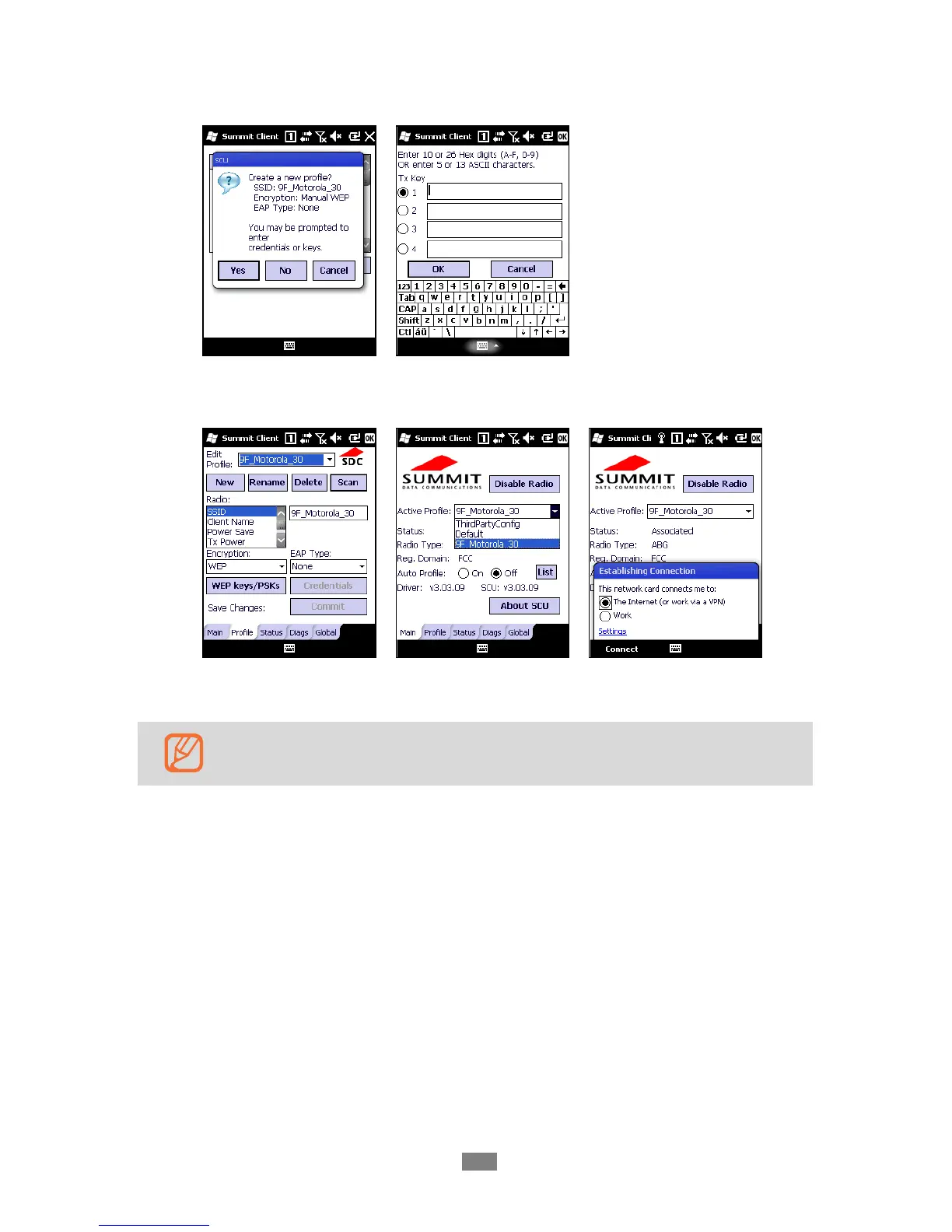

iii. Once a profile is created, click ‘Commit’ to save the profile and move to the
main tab to change the active profile.
iv. Check the connection status to ensure it is connected properly.
Entering sleep mode while the WLAN is connected will cause connection
drop. However, upon wake up, it will automatically re-connect to the AP
within 10 seconds.

M3 Mobile OX10 Specifications

General

Display diagonal	3.5 \
Display resolution	480 x 640 pixels
ROM capacity	1000 MB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	-
Processor frequency	0.833 GHz
Data network	EDGE, GPRS, GSM, HSPA+, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, CCX v4, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, TKIP, WEP, WPA, WPA2
WCDMA bands supported	800, 850, 1900, 2100 MHz
Rear camera resolution (numeric)	3.2 MP
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-30 - 70 °C
Battery capacity	3300 mAh
Product color	Black, Orange
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65
Operating system installed	Windows CE 6.0

Weight and Dimensions

Depth	24.9 mm
Width	78.6 mm
Height	165.5 mm
Weight	332 g
