Mac allister MPWP2200 - Page 16

EN
MPWP2200 by MacAllister
Before you start
Getting started...
16

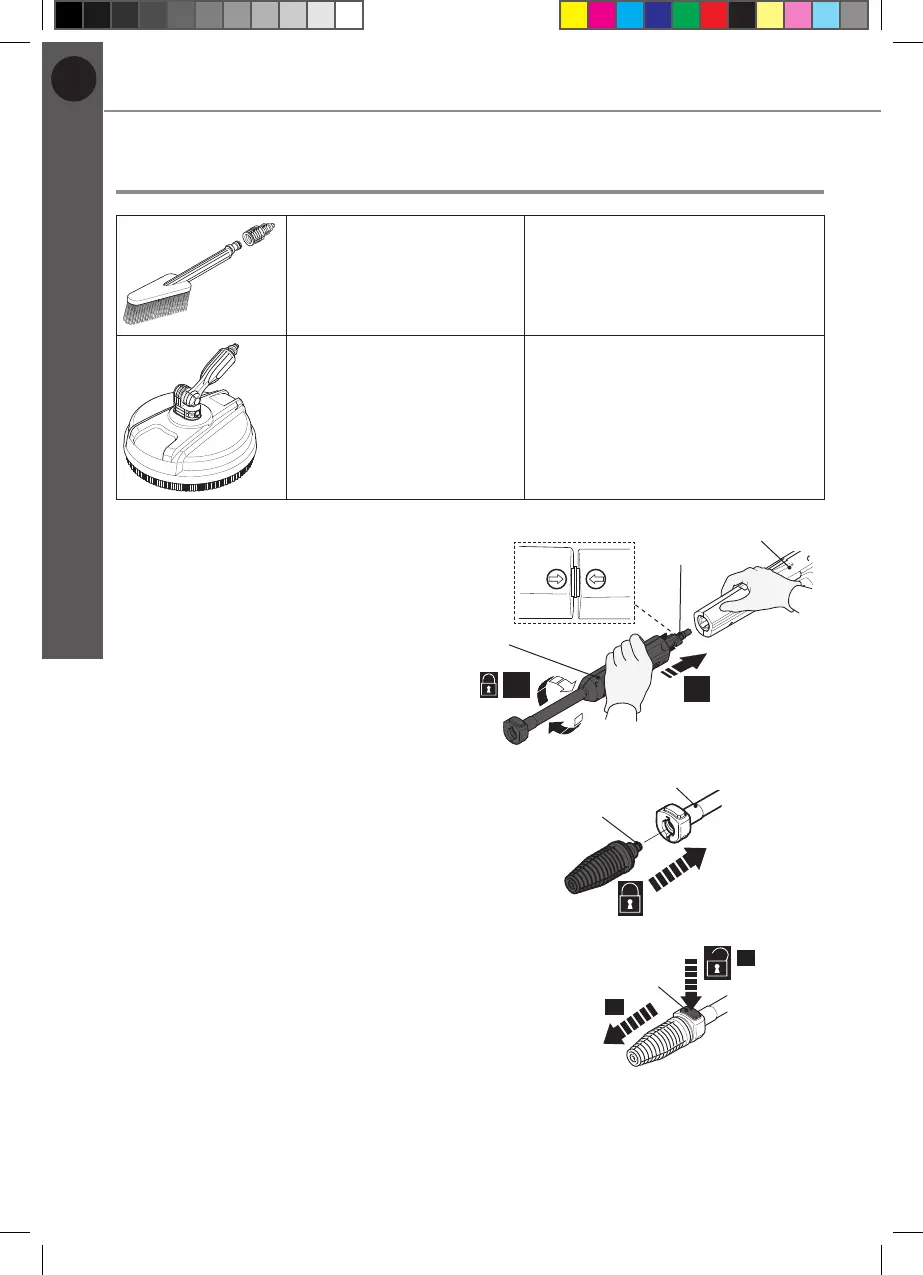

Accessories
Rims brush (20) with
adaptor (20a)
Cleaning of wheels and rims on
vehicles.
To be used in conjunction with
the extension lance.
Patio brush (23) Cleaning of oors, e.g. garden
path or courtyards.
To be used in conjunction with
the extension lance and short
extension lance.
Attaching accessories
1. Align and insert the tongues (7a)
of the extension lance (7) into
the grooves of the spray gun (9)
connection port. (Fig. 4, step 1).
2. Securely t the extension lance (7)
by turning it clockwise to lock it in
place (step 2). Ensure the arrow on
the spray gun aligns with the arrow
on the extension lance.
9
7a
7
1.
2.
Fig. 4
3. Align the tongues (18a) of the nozzle with
the grooves of the extension lance (7)
connection port (Fig. 5).
4. Insert the nozzle into the connection port
all the way to the end. Ensure it engaged
properly.
Removing accessories
1. Press the release button (7b) (Fig. 6, step 1)
and remove the nozzle (step 2).
2. Press the extension lance (7) towards
the spray gun (9) (Fig. 7, step 1) and turn it
anti-clockwise (step 2) to remove it (step 3).
7
18a
Click
Fig. 5
7b
1.
2.
Fig. 6
