9

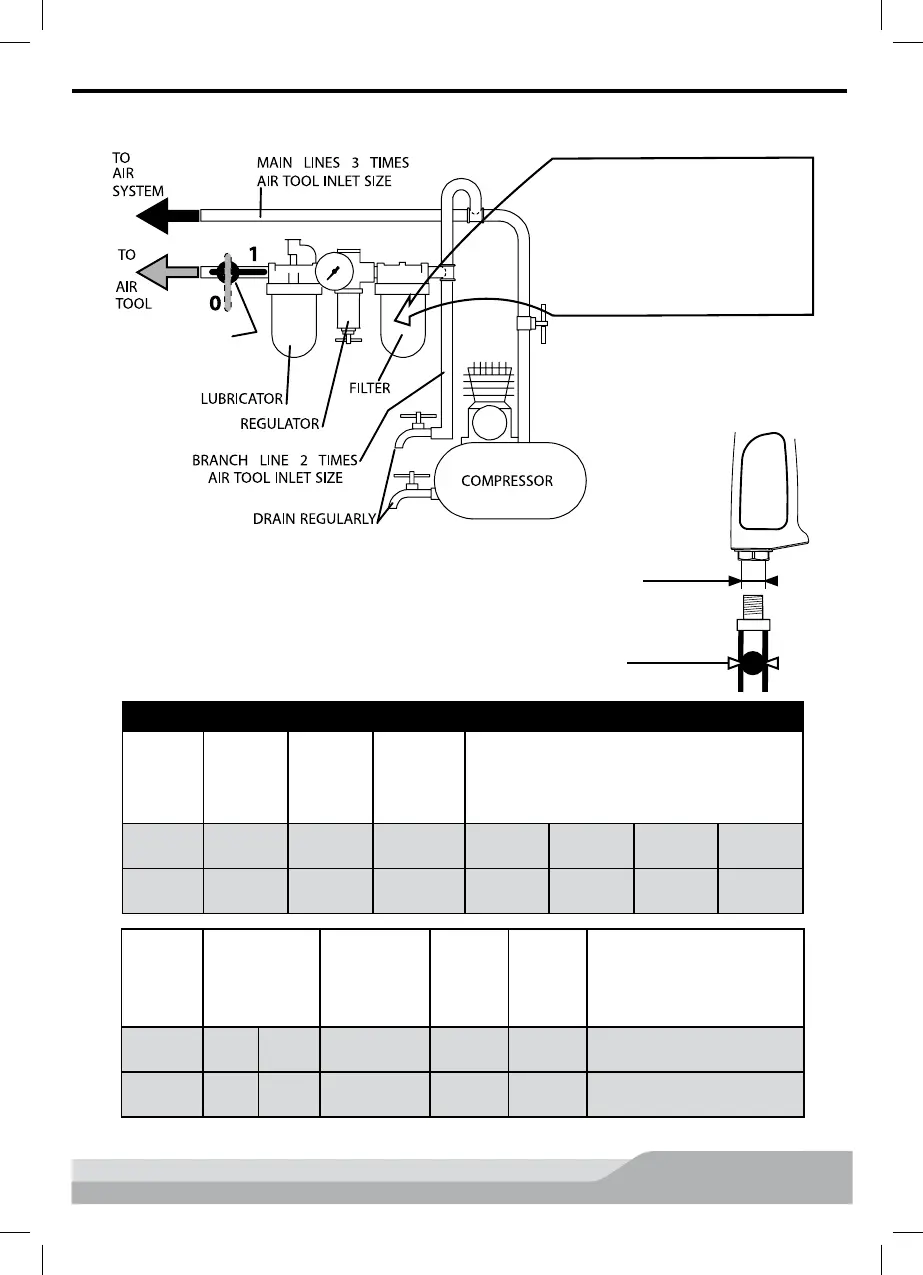

PLACING TOOL IN SERVICE
An air filter unit should be
placed between air compressor
and air lubricator to promote
clean air supply to the impact
wrench. Water, dirt, and scale
can damage the impact wrench.
EMERGENCY
GATE VALVE
Fig. 4
SPECIFICATIONS
Model #
Square
Drive
Impact
Rate
Breakaway
Torque
Noise Level
(ISO 15744)
in / mm
bpm
fwd / rev
ft-lbs / Nm Pressure dB(A) Power dB(A)
MPF970501 .5 / 13 1030 / 1120 1100 / 1490 90 3* 101 3*
MPF972501 .5 / 13 1010 / 1060 1100 / 1490 90 3* 101 3*
Model #
Vibration Level
(ISO 28927-2)
Average Air
Consumption
Working
Pressure
Weight Dimensions
m/s
2
cfm / l/min psi / bar lbs / kg in / mm
MPF970501 5.2 1.5**
5.2 / 147.2
90 / 6.2 6.2 / 2.8
7.5 x 2.8 x 7.6 / 190 x 70 x 193
MPF972501 5.2 1.5**
5.2 /147.2
90 / 6.2 6.4 / 2.9
9.6 x 2.8 x 7.6 / 243 x 70 x 193
* = measurement uncertainty in dB(A) ** = measurement uncertainty in m/s²
Fig. 5
1/4" NPT HIGH FLOW FITTING
AIR HOSE 3/8" (10 mm) I.D. MIN.
