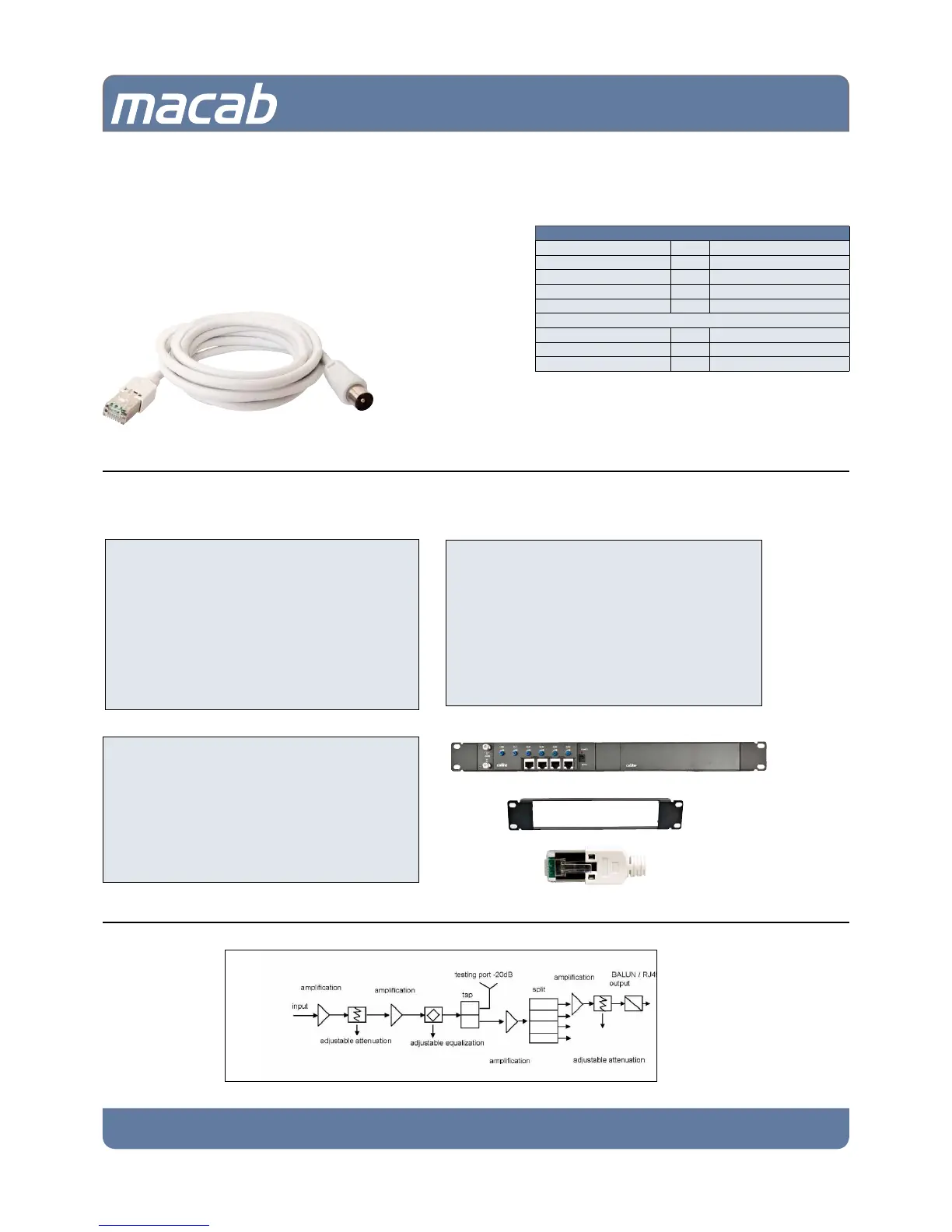

Macab TVB-02 - Page 2

TV cable TVB-01 + Accessories
TV cable
Cable with built in transformer for converting from Ethernet (RJ-45
female) to coaxial (IEC-male). To be used for distribution of analo-
gue/digital TV via CAT-5/6 cable. TVB-01 is also perfect for distribu-
tion of IP-services over an existing coaxial cable.
Accessories
10”-panel
For installation of one amplier TVB-02 in a 10” cabinet.
Part no 380 00 04
Type 10”-panel
Height 46 mm
Length 10” (254 mm)
19”-panel
For installation of one or two ampliers TVB-02. A blind
panel is preinstalled if only one amplier is needed.
Part no 380 00 03
Type 19”-panel
Height: 46 mm
Length 19” (483 mm)
Technical specification
Part no – 380 00 01
Type – TVB-01
Frequency range MHz 47–862
Loss dB <5
Screening – class B
Connectors
outlet – RJ-45 male
TV – IEC-male
Length m 2
Terminator, 100 ohm RJ-45
For installation in amplier TVB-02. All not used ports have
to be terminated with a terminator.
Part no 380 00 05
Type terminator, 100 ohm RJ-45
Impedance ohm 100
Connector RJ-45, male
