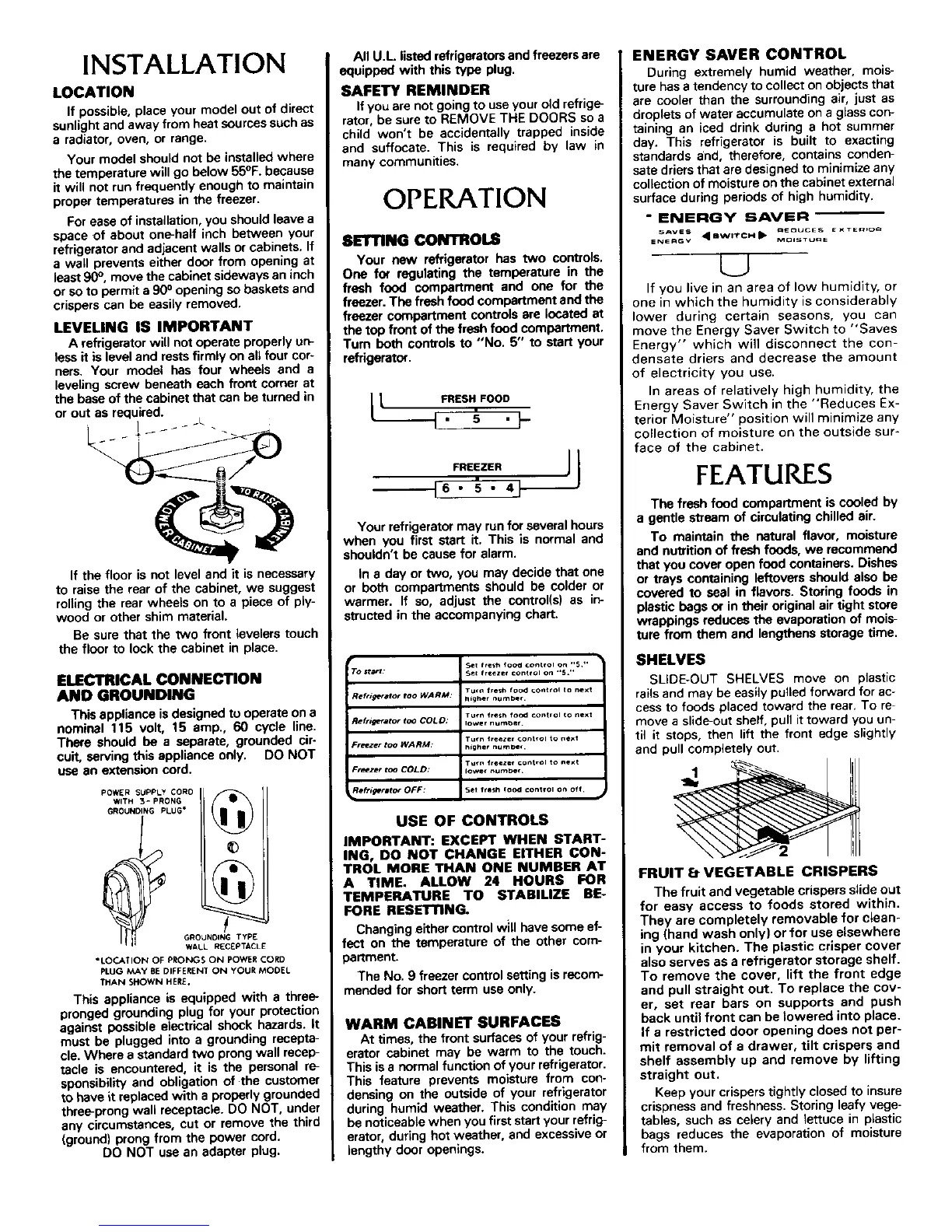

INSTALLATION A., U.L. listedrefrigeratorsand freezersare ENERGY SAVER CONTROL
equipped with this type plug. During extremely humid weather, mois-
LOCATION SAFETY REMINDER ture has a tendency to collect on objects that
If possible, place your model out of direct If you are not going to useyour old refrige- are cooler than the surrounding air, just as
sunlightand away from heat sourcessuch as rator, be sureto REMOVE THE DOORS so a droplets of water accumulate on a glass con-
a radiator, oven, or range, child won't be accidentally trapped inside raining an iced drink during a hot summer
and suffocate. This is required by law in day. This refrigerator is built to exacting
Your model should not be installed where many communities, standards a'nd, therefore, contains conden-
the temperature will go below 55°F. because satedriers that are designedto minimize any
it will not run frequently enough to maintain collectionof moistureonthe cabinet external
proper temperatures in the freezer. OPERATION surface during periods of high humidity.
Forease of installation,you shouldleave a - ENERGY SAVER
space of about one-half inch between your SAVES ,_=UCES E_T_,O=
refrigeratorand adjacent walls or cabinets. If 81: I IING CONTIROLS .,,,;v 4 awl_cH _ MO ......
a wall prevents either door from opening at Your new refrigerator has two controls.
least90°, movethe cabinet sideways an inch One for regulating the temperature in the
or so to permit a 90Oopening so baskets and fresh food compartment and one for the If you live in an areaoflow humidity, or
crisperscan be easily removed, freezer. The fresh food compartment and the one in which the humidity is considerably
freezer compartment controls are located at lower during certain seasons, you can
LEVELING IS IMPORTANT the top front of the fresh food compartment, move the Energy Saver Switch to "Saves
A refrigerator will not operate properly on- Turn both controls to "No. 5" to start your Energy" which will disconnect the con
less it islevel and rests firmly on alt fourcor- refrigerator, densate driers and decrease the amount
ners. Your model has four wheets and a of electricity you use.
leveling screw beneath each front corner at In areas of relatively high humidity, the
the base of the cabinet that can be turned in [ [ FRESHFOOD Energy Saver Switch in the "'Reduces Ex-
or out as required. _L L I " 5 • J-- terior Moisture" position will minimize any
1_ - - - collection of moisture on the outside sur-
face of the cabinet.
,.EEZE. lJ FEATURES
16• _.4J
The fresh food compartment is cooled by
Your refrigeratormay runfor several hours a gentle stream of circulating chilled air.
when you first start it. This is normal and To maintain the natural flavor, moisture
shouldn't be cause for alarm, and nutrition of fresh foods, we recommend
If the floor isnot level and it is necessary In a day or two, you may decide that one that you cover open food containers. Dishes
or trays containing leftovers should also be
to raise the rear of the cabinet, we suggest or both compartments should be colder or covered to seal in flavors. Storing foods in
rolling the rear wheels on to a piece of ply- warmer. If so, adjust the control(s) as in- plastic bags or in their originalair tight store
wood or other shim material, structed in the accompanying chart, wrappings reduces the evaporation of mois-
Be sure that the two front levelers touch ture from them and lengthens storage time.
the floor to lock the cabinet in place.
H
Se ................... ,,5,* SHELVES
I_1I=c'rR|CAL CONNECTION To,t,_t. i s,. _......... _,o,o,"s." 1 SLIDE-OUT SHELVES move on plastic
AND GROUNDING A,f,_,,,o, ,ooWA,M .... ,.,. ,ooo...... ,to,..t rails and may be easily pulled forward for ac-
Iligh_r number.
This appliance is designed to operate on a _,,, ,.,, ,oDd,o,t,o,_o..., cessto foods placed toward the rear. To re-
nominal 115 volt, 15 amp., 60 cycle line. Ao_,_._.to_t_ colo. ,....... _,,. move a slide-out shelf, pull ittoward you un-
Turnfr4.iszf.r_ont,Oltonext til it stops, then lift the front edge slightly
There should be a separate, grounded cir- Ft_zert_WARM highe'numc=e'.
cult, serving this appliance only. DO NOT and pull completely out.
usa an extension cord. F,_,r tooCOLD lowernumber
POW_R SUPPLY CORD - Refri_tato_ O,¢:F: Set fr(tsh loc.d control O_ off. __L I]l
WITH 3- PRONG •
o,oo.o,.oPL00"\1I) USEOFCONTRO'S
IMPORTANT: EXCEPT WHEN START-
ING, DO NOT CHANGE EITHER CON-
_ _ _•|_ TROL MORE THAN ONE NUMBER AT
A TIME. ALLOW 24 HOURS FOR FRUIT EtVEGETABLE CRISPERS
TEMPERATURE TO STABILIZE BE- The fruit and vegetable crispers slideout
FORE RESt:= I'ING. for easy access to foods stored within.
Changingeither control will have some ef- They are completely removable for clean-
GROUNDINGType ing (hand wash only) or for use elsewhere
WALLRECEPTACLE feet on the temperature of the other corn- in your kitchen. The plastic crisper cover
•LOCATIONOFPRONGSONPOWERCORD partment, also serves as a refrigerator storage shelf.
PLUGMAy8EDIFFERENTONYOURMODEL The No. 9 freezer control setting is recom- To remove the cover, lift the front edge
THAN SHOWN HERE.
This appliance is equipped with a three- mended for short term use only. and pull straight out. To replace the coy-
pronged grounding plug for your protection er, set rear bars on supports and push
against possible electrical shock hazards. It WARM CABINET SURFACES back until front can be lowered into place.
must be plugged into a grounding recepta- At times, the front surfaces of your refrig- If a restricted door opening does not per-
cle. Where a standard two prong wall recep- erator cabinet may be warm to the touch, mit removal of a drawer, tilt crispers and
tacle is encountered, it is the personal re- This is a normal function of your refrigerator, shelf assembly up and remove by lifting
sponsibility and obligation of the customer This feature prevents moisture from con- straight out.
to have it replaced with a properly grounded densing on the outside of your refrigerator Keep your crisperstightly closed to insure
three-prong wall receptacle.DO NOT, under during humid weather. This condition may crispnessand freshness.Storing leafy vege-
any circumstances, cut or remove the third be noticeablewhen you firststart your refrig- tables, such as celery and lettuce in plastic
(ground) prong from the power cord. erator, during hot weather, and excessiveor bags reduces the evaporation of moisture
DO NOT use an adapter plug. lengthy door openings, from them.
