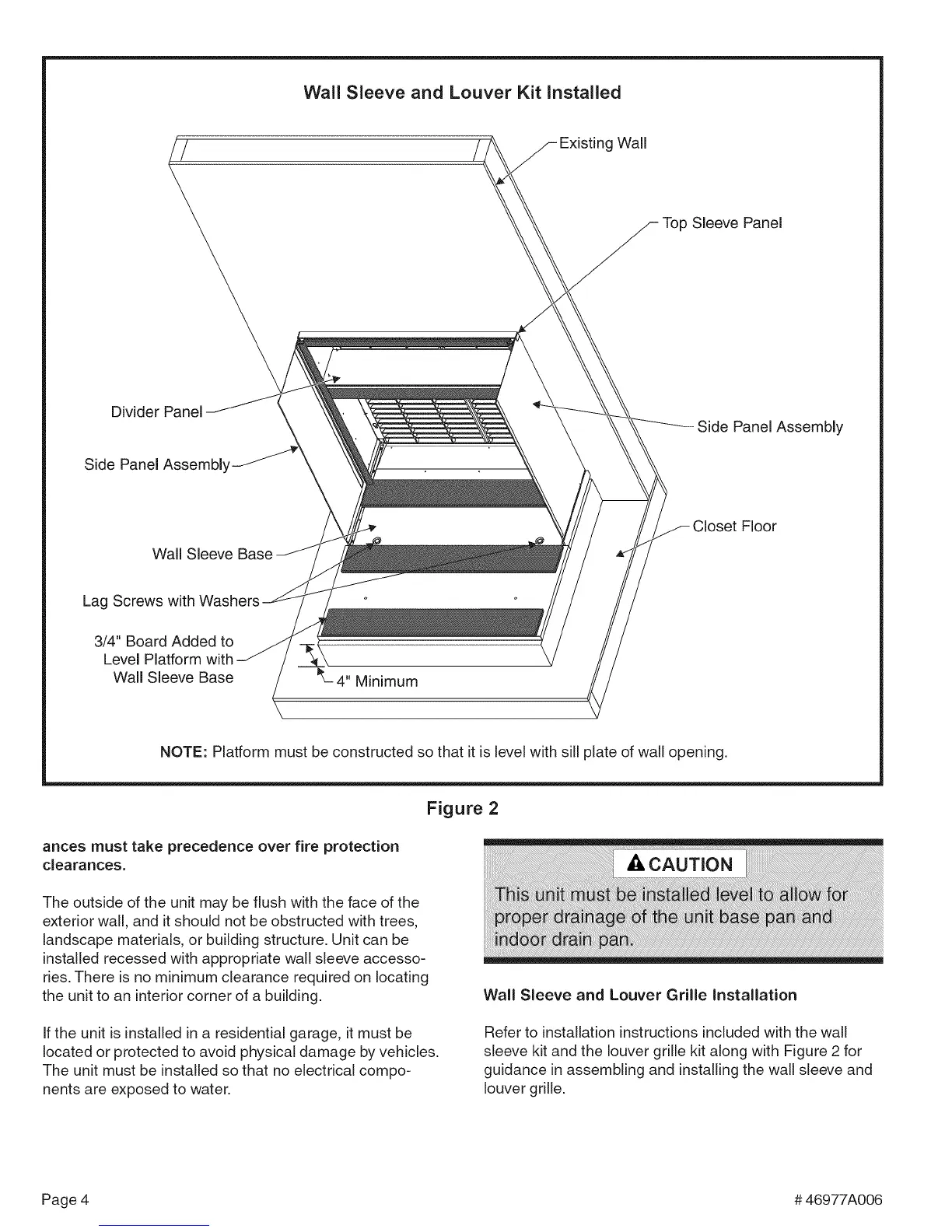

Wall Sleeve and Louver Kit installed
Sleeve Panel
Divider Panel
Side Panel Assembly
Side Panel Assembly
Wall Sleeve
Floor
Lag Screws with
3/4" Board Added to
Level Platform with
Wall Sleeve Base
;" Minimum
NOTE: Platform must be constructed so that it is level with sill plate of wall opening.
Figure 2
ances must take precedence over fire protection
clearances.
The outside of the unit may be flush with the face of the
exterior wall, and it should not be obstructed with trees,
landscape materials, or building structure. Unit can be
installed recessed with appropriate wall sleeve accesso-
ries. There is no minimum clearance required on locating
the unit to an interior corner of a building.
Wail Sleeve and Louver Grille Installation
If the unit is installed in a residential garage, it must be
located or protected to avoid physical damage by vehicles.
The unit must be installed so that no electrical compo-
nents are exposed to water.
Refer to installation instructions included with the wall
sleeve kit and the louver grille kit along with Figure 2 for
guidance in assembling and installing the wall sleeve and
louver grille.
