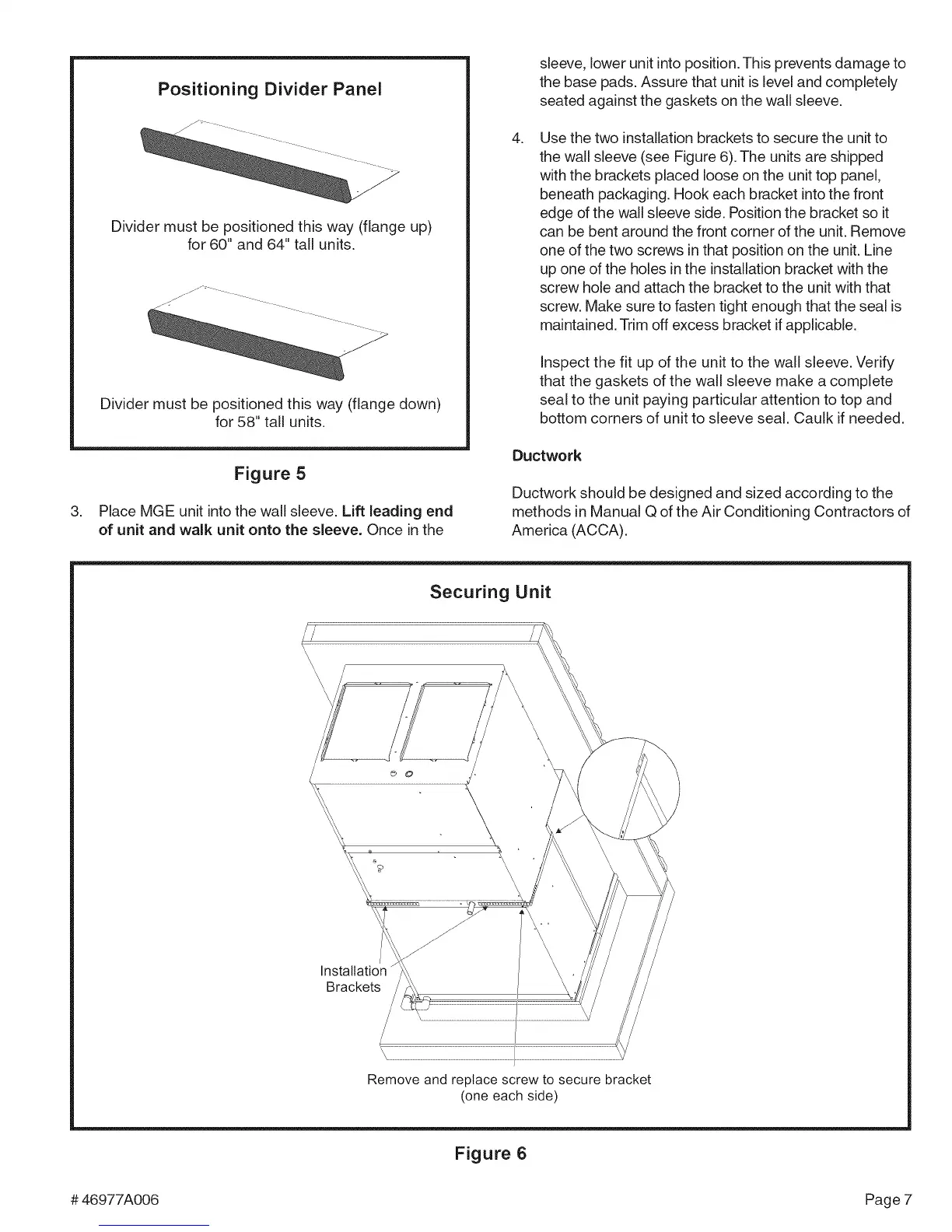

Positioning Divider Panel
Divider must be positioned this way (flange up)
for 60" and 64" tall units.
Divider must be positioned this way (flange down)
for 58" tall units.
,
Figure 5
Place MGE unit into the wall sleeve. Lift leading end
of unit and walk unit onto the sleeve. Once in the
sleeve, lower unit into position. This prevents damage to
the base pads. Assure that unit is level and completely
seated against the gaskets on the wall sleeve.
. Use the two installation brackets to secure the unit to
the wall sleeve (see Figure 6). The units are shipped
with the brackets placed loose on the unit top panel,
beneath packaging. Hook each bracket into the front
edge of the wall sleeve side. Position the bracket so it
can be bent around the front corner of the unit. Remove
one of the two screws in that position on the unit. Line
up one of the holes in the installation bracket with the
screw hole and attach the bracket to the unit with that
screw. Make sure to fasten tight enough that the seal is
maintained. Trim off excess bracket ifapplicable.
Inspect the fit up of the unit to the wall sleeve. Verify
that the gaskets of the wall sleeve make a complete
seal to the unit paying particular attention to top and
bottom corners of unit to sleeve seal. Caulk if needed.
Ductwork
Ductwork should be designed and sized according to the
methods in Manual Q of the Air Conditioning Contractors of
America (ACCA).
Securing Unit
\
\
\
\
\
\
\
\
\
Brackets
Remove and replace screw to secure bracket
(one each side)
Figure 6
#46977A006 Page 7
