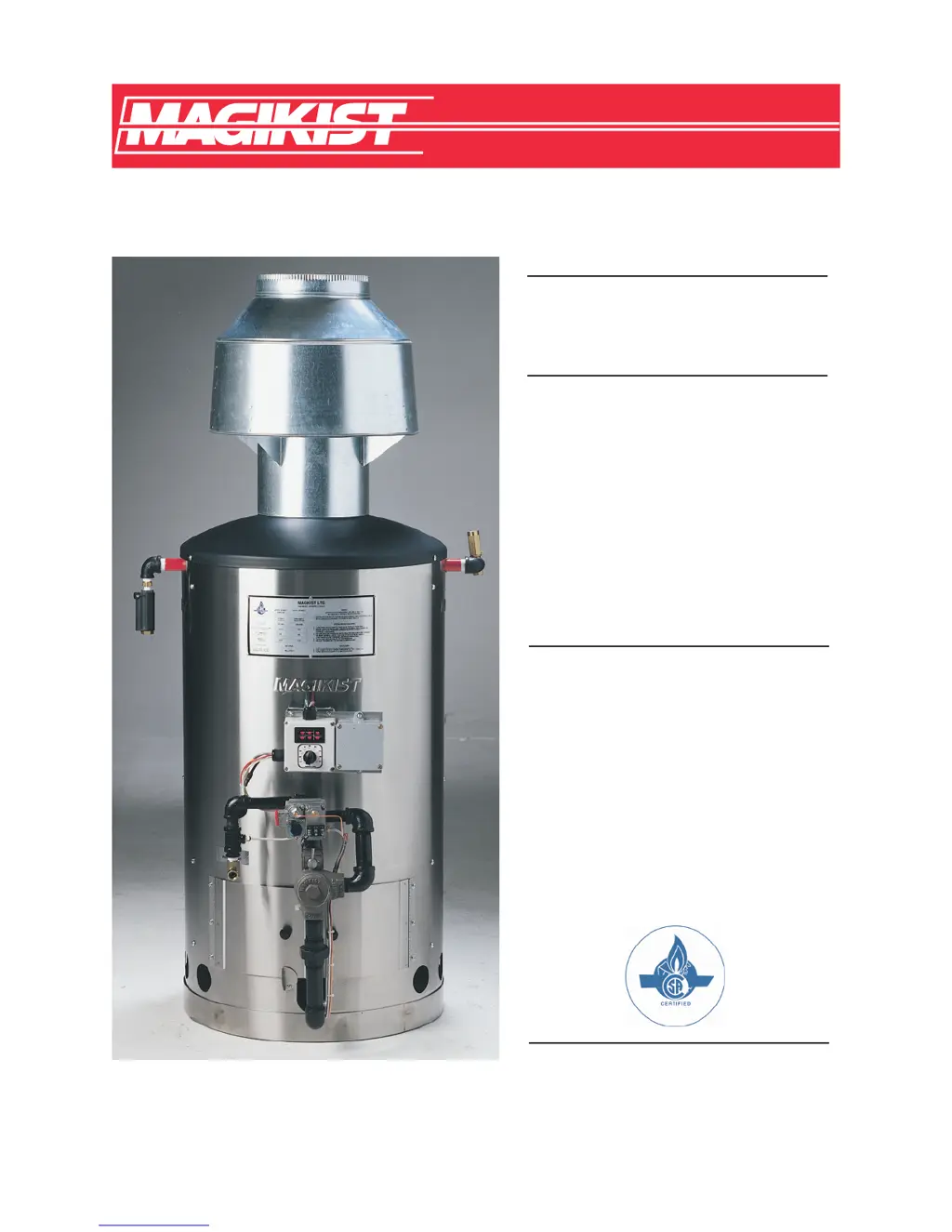

MODEL HWG40

MODEL HWG20

GAS FIRED

COMMERCIAL

& INDUSTRIAL

PRESSURE

WASHER

HEATERS

INSTRUCTION

MANUAL

V3.02

For heaters equipped with

ProSafe II control and

24V electronic ignition

(HSI)

or 24V standing pilot

Table of Contents

Questions and Answers:

R
Rachel BeardAug 15, 2025
What to do if Magikist HWG40 temperature setting display flashes E31 and REQUEST FOR HEAT indicator is flashing?
- A
  Alexis ScottAug 15, 2025
  If the temperature setting display flashes E31 and the REQUEST FOR HEAT indicator is flashing, it indicates a short in the output driver for the gas valve. Immediately turn the knob on the gas valve to the OFF position. Shut off the gas supply to the heater immediately. Extinguish any open flame immediately and contact qualified service personnel.
D
dennis77Aug 18, 2025
What to do if Magikist HWG40 temperature setting display flashes E15 and FLUE STATUS indicator is flashing?
- B
  Brittany MercadoAug 18, 2025
  If the temperature setting display flashes E15 and the FLUE STATUS indicator is flashing, it signifies an overheat condition. The temperature in the flue has exceeded the maximum limit, commonly due to the main burner being on without water flow. You should investigate and correct the issue immediately.

Magikist HWG40 Specifications

General

Brand	Magikist
Model	HWG40
Category	Heater
Language	English

Summary

Important Operating Conditions

Safety Precautions for Heater Operation

Installation Guide for Magikist Heaters

Location Requirements for Heater Installation

Describes ideal placement for heater to avoid water spray, weather, and drafts.

Mounting Procedures for Heater Installation

Gas Supply Requirements and Guidelines

Covers requirements for natural gas and LP gas connections, emphasizing compatibility.

Venting Installation and Safety Standards

Explains proper venting procedures according to codes for safe exhaust of combustion gases.

Automatic Vent Damper Installation

Instructions for installing and wiring the optional automatic vent damper.

Power Venter Installation and Wiring

Guidelines for installing and wiring the optional power venter for sidewall venting.

Flow Switch Installation and Function

Inlet Plumbing Connections

Outlet Plumbing Connections

Electrical Connections Guide

Detailed instructions for wiring the heater's electrical components and controls.

Pre-Operation Checks and Procedures

Check Flow Switch and Vent Damper

Steps to verify correct operation of the flow switch and vent damper.

Lighting the Pilot Burner

Check Main Burner Ignition

Steps to verify main burner ignition and operation after pilot lighting.

ProSafe II Control System Overview

ProSafe II Error and Warning Conditions

Error Conditions and Codes

Lists specific error codes, their descriptions, and required actions.

Warning Conditions and Indicators

Lists warning conditions, their descriptions, and recommended actions.

Electronic Ignition Operation Details

Maintenance Procedures for Heaters

Flow Switch Maintenance

Relighting the Pilot Burner

Care and Cleaning of Main Burners

How to clean burner jets to maintain optimal combustion.

Cleaning Heater Coil of Scale

Troubleshooting Common Issues
