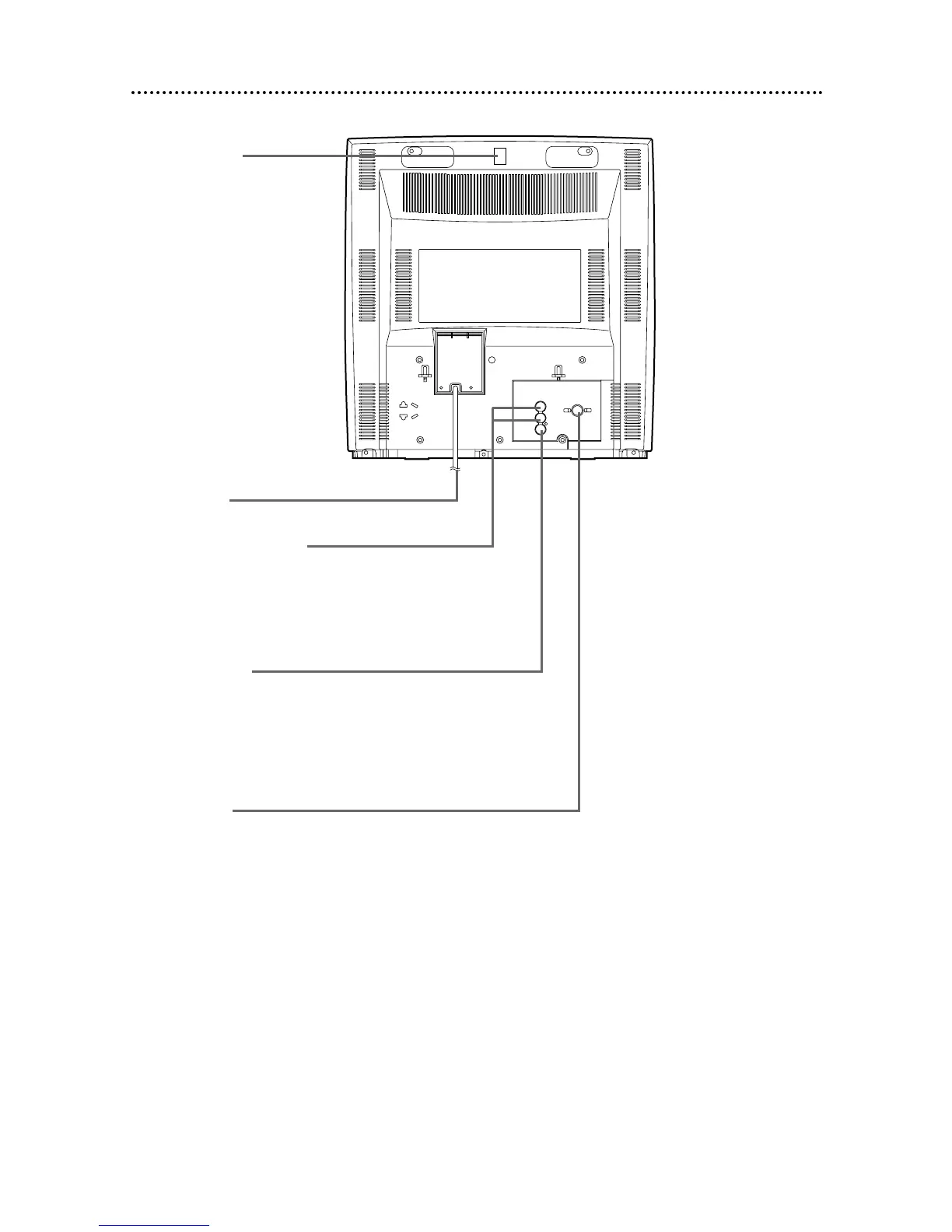

ANT.
Power Cord
Connect to a standard AC outlet (120V/60Hz).
AUDIO OUT L/R jacks
(Audio Out, left and right, white and red)
Connect these jacks to an analog Stereo. The Stereo will have
right and left Audio In jacks. This means it receives sound
through two channels, the right and the left. These jacks are
usually red and white on the Stereo.
Details are on page 10.
COAXIAL Jack
(Digital Audio Out) (orange)
Connect this jack to a Digital Stereo using a digital audio coaxial
cable (not supplied). Use this connection if the Stereo has Dolby
Digital compatibility and has a Digital Coaxial Audio In jack. You
may also use this connection when connecting the TV/DVD to a
Mini-Disc or Digital Audio Tape deck. Details are on page 10.
ANT. Jack
(Antenna In)
Connect an antenna or Cable TV signal here. This brings TV
channels to the TV/DVD. If you do not connect an antenna or
Cable TV signal to the TV/DVD (or connect to a Cable
Box/Satellite Receiver through this jack), you will not receive any
TV channels. Details are on pages eight-nine.
Antenna Hole
Connect the stem or base
of a rod antenna (not
supplied) here (if it fits
easily). Details are on page
nine.
