9 USER MANUAL

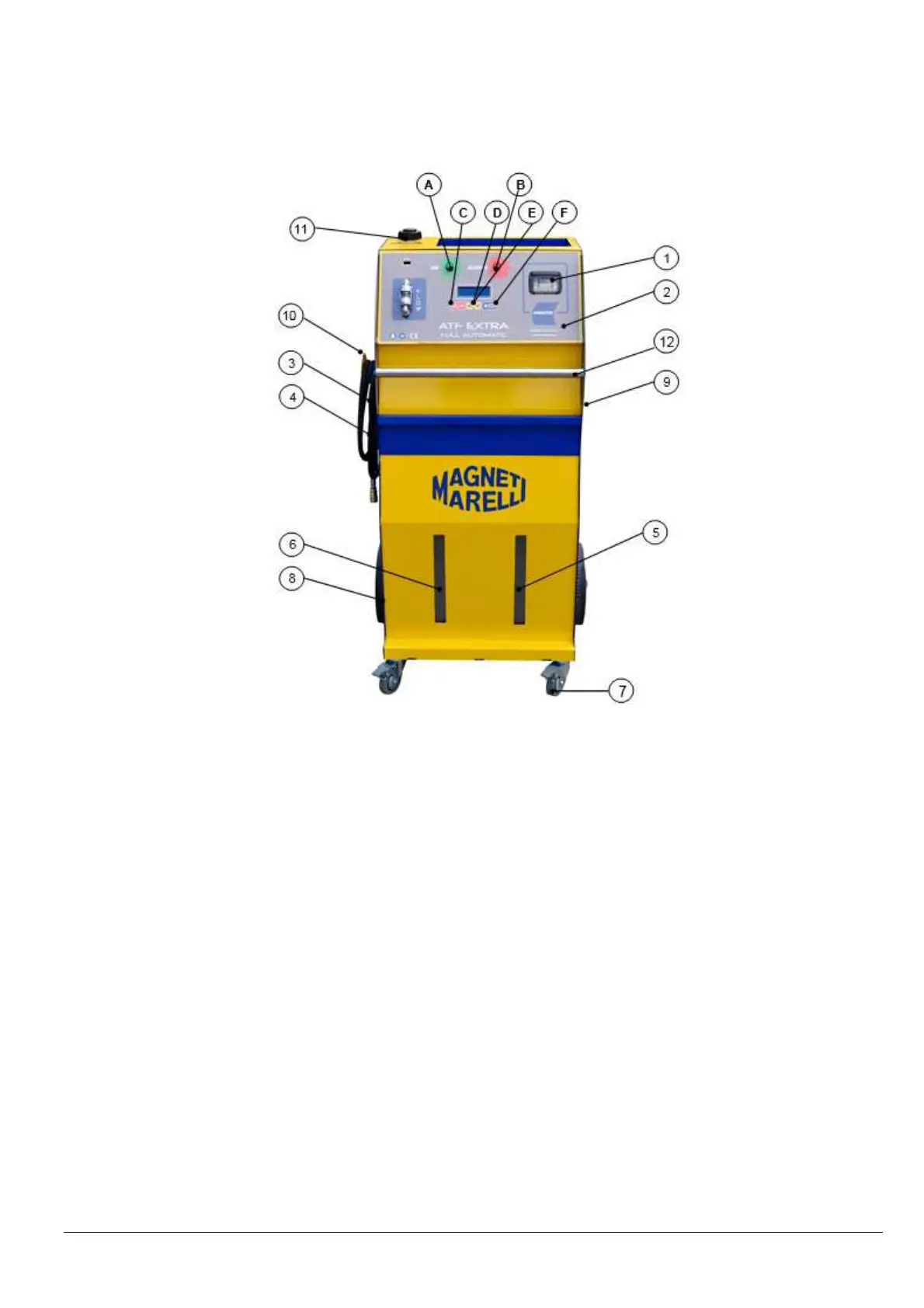

3.1 ATF EXTRA PRO parts fig. 2.2
1) Printer 8) Rear wheel
2) Control panel 9) Battery power cables
3) Connection hose 10) Hoses handle
4) Connection hose 11) Additive tank
5) Used fluid tank compartment 12) Front handle
6) New fluid tank compartment AB Function led
7) Front wheel CDEF
Key pad
A. GREEN “ON PROCESS” light: normally off; it flashes during cycle performance. - It remains on
at end of cycle.
B. RED “WARNING” light: Normally off. It starts flashing in case of alarms due to: - insufficient new
fluid – insufficient volume for receiving used fluid in the used fluid tank – absence of required
additive in auxiliary tank. Failures or defects.
C. STOP/ESC button: cancels selection or enables option between two possible operations; enables
return to READY
