The document describes the installation and usage of the Magtek MICR Mini Check Reader, a device designed to process check transactions for Cash Register Express or Restaurant Pro Express systems.

Function Description:

The Magtek MICR Mini Check Reader (P/N: 22523009) is a peripheral device that reads the Magnetic Ink Character Recognition (MICR) line at the bottom of checks. This information is crucial for processing check transactions within point-of-sale (POS) systems like pcAmerica's Cash Register Express or Restaurant Pro Express. By automating the capture of MICR data, the device aims to improve the accuracy and efficiency of check processing, reducing manual data entry errors and speeding up transaction times. The device is designed to be compatible with both 32-bit and 64-bit operating systems, specifically Windows 7 as mentioned in the installation instructions, suggesting broad compatibility with modern POS environments.

Important Technical Specifications:

While the document doesn't provide a comprehensive list of technical specifications such as dimensions, weight, or power consumption, it does highlight key components and part numbers essential for its operation:

Device Part Number: Magtek MICR Mini Check Reader (P/N: 22523009). This is the primary identifier for the check reader itself.
USB Cable Part Number: P/N: 22517583 REV.B. This cable is responsible for connecting the check reader to the computer, facilitating data transfer. The "REV.B" likely indicates a specific revision of the cable.
Power Cable Model Number: MODEL NO.: AA-121A. This cable provides the necessary power to operate the check reader.
Driver Compatibility: The device requires specific drivers that are compatible with both 32-bit and 64-bit operating systems. The provided download link points to a ZIP file (MAGTEK_Mini_MICR.zip) containing these drivers.
Connectivity: The device connects to a computer via a USB port for data communication and to a power outlet for power supply. The USB cable has a round end that connects to the check reader and a standard USB-A end for the computer.

Usage Features:

The Magtek MICR Mini Check Reader is designed for straightforward use in a retail or restaurant environment.

Installation Process: The installation involves two main steps:
1. Driver Installation: Users must download and install the appropriate drivers. The document specifically instructs users to right-click and select "Run as Administrator" on the DPInst.exe file when installing on Windows 7, indicating a need for elevated privileges during driver setup. The driver installation wizard guides the user through the process, confirming successful installation and readiness for use.
2. Hardware Connection: This involves connecting two cables:

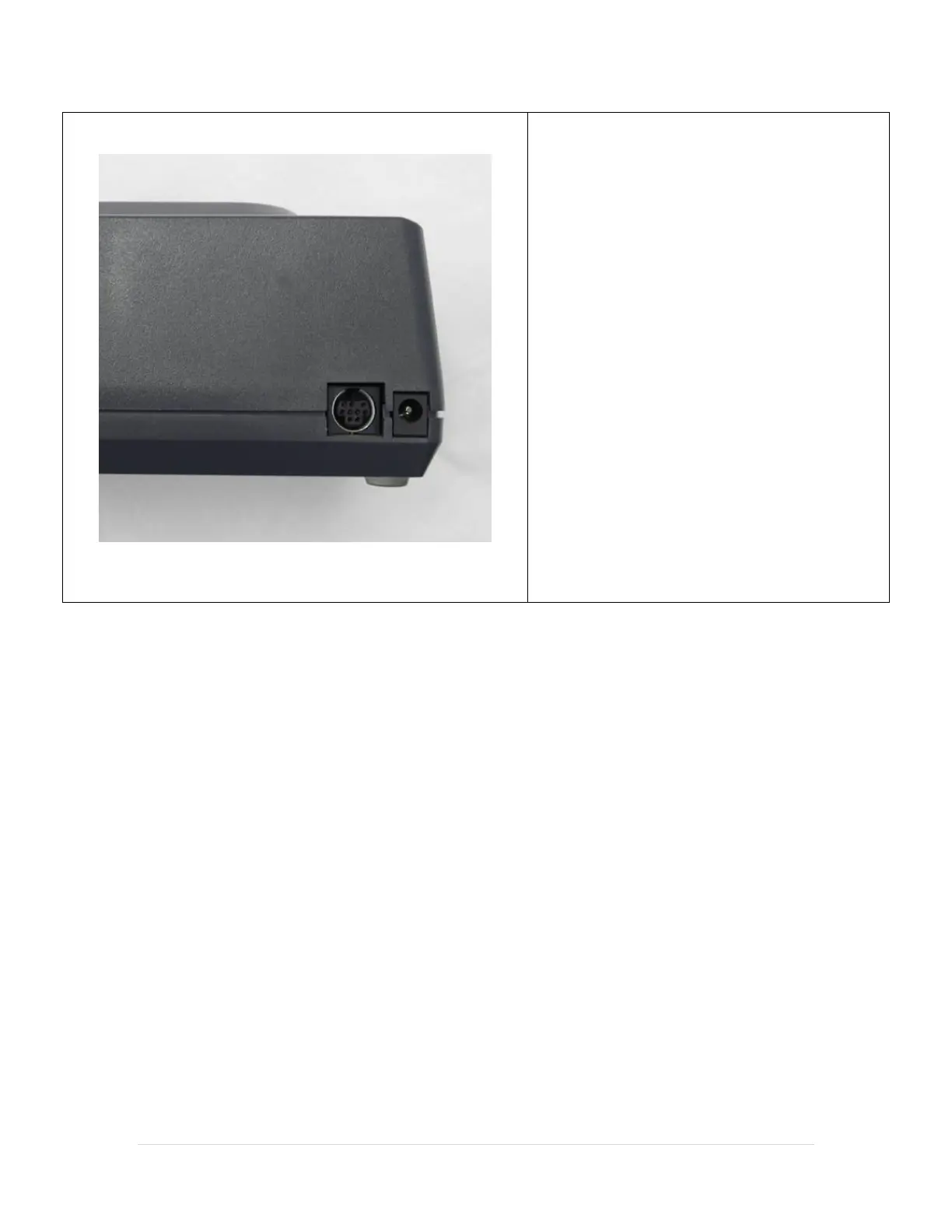

  - The USB cable: One end (round) connects to the check reader, and the other end connects to an available USB port on the computer.
  - The power cable: One end connects to the check reader, and the other end connects to a power outlet.
Check Swiping: Once installed and connected, the device is ready to read checks. The document provides a clear visual example and instruction for swiping checks: "The MICR should be facing inward and on the bottom of the page." This ensures that the MICR line is correctly positioned for the reader to capture the information.
Testing: A simple method for testing the device's functionality is provided: "Open Notepad.exe and swipe the check through the reader." This allows users to verify that the MICR information is being correctly read and transmitted to the computer, appearing as text in Notepad. This method is a quick and effective way to confirm that the hardware and drivers are working as expected before integrating with the POS software.
Integration with POS Systems: The primary purpose of this device is its compatibility with Cash Register Express or Restaurant Pro Express. While the document doesn't detail the specific software integration steps, it implies that once the hardware is installed and tested, the MICR data will be automatically captured and utilized by these POS applications for check transactions.

Maintenance Features:

The document does not explicitly detail maintenance features. However, based on the nature of the device and the provided information, some implicit aspects can be inferred:

Driver Updates: While not explicitly mentioned as a maintenance task, keeping drivers updated is generally good practice for peripheral devices. The initial driver download link suggests that updates might be available through pcAmerica's download portal.
Cable Management: Proper handling and connection of the USB and power cables are essential for the device's longevity and reliable operation. Ensuring cables are not strained or damaged would be part of routine care.
Cleaning: Although not specified, check readers, especially those that come into contact with paper, typically require occasional cleaning to remove dust, paper debris, or ink residue that could interfere with the reading mechanism. Users would likely need to refer to a separate general maintenance guide or manufacturer's instructions for cleaning procedures.
Troubleshooting: The testing procedure using Notepad.exe serves as a basic troubleshooting step. If the MICR information does not appear in Notepad, it indicates an issue with the driver installation, hardware connection, or the device itself, prompting further investigation.

In summary, the Magtek MICR Mini Check Reader is a specialized input device designed to streamline check processing for pcAmerica's POS systems. Its installation is straightforward, involving driver setup and cable connections, and its usage is intuitive, focusing on correct check swiping. While specific maintenance details are not provided, the emphasis on proper installation and a simple testing method suggests a user-friendly approach to ensuring its operational readiness.
