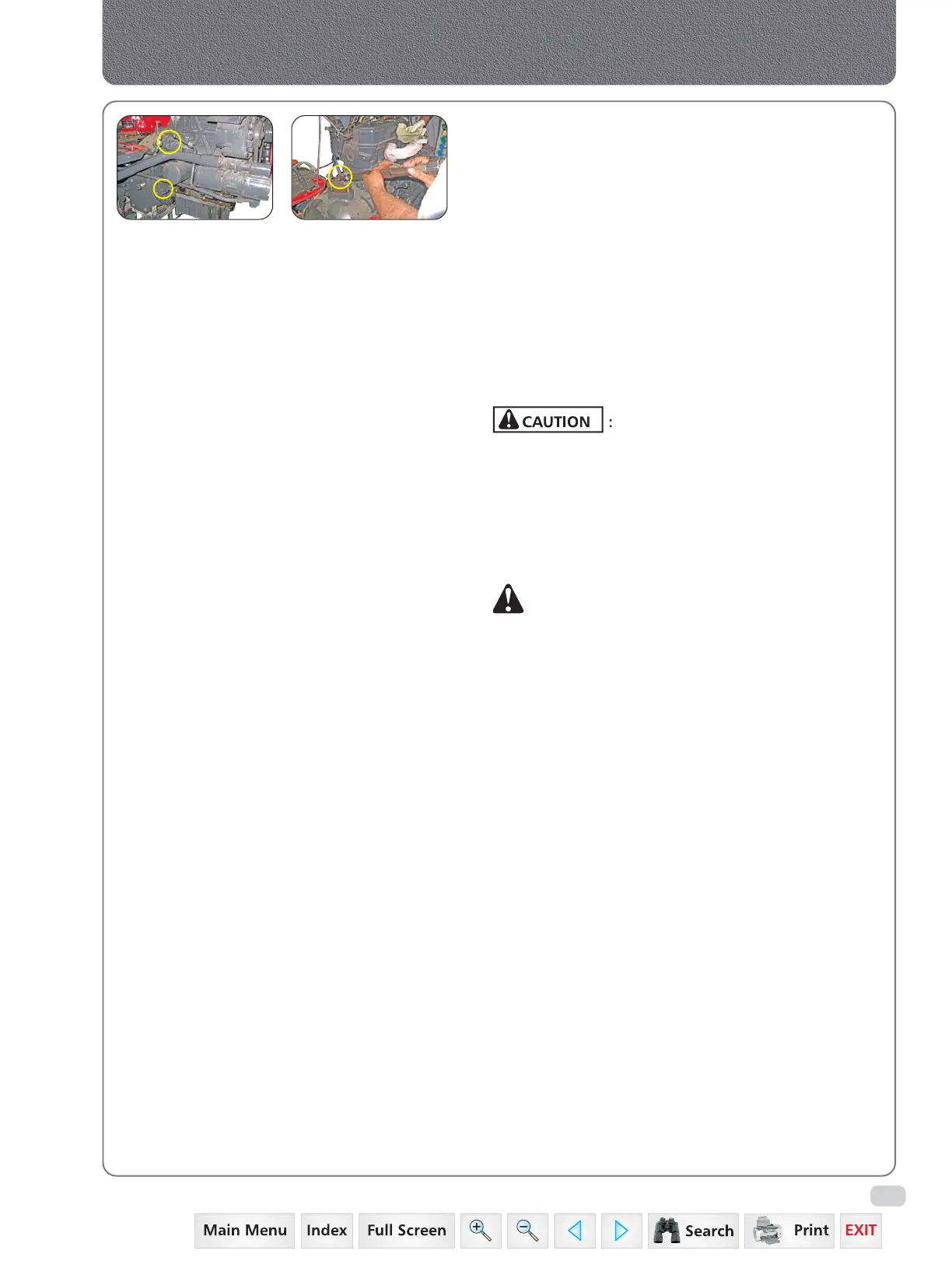

Splitting Between Engine & Transmission
REJOINING THE ENGINE ASSEMBLY AND
TRANSMISSION
1. Follow the reverse sequence of Splitting for
rejoining the Engine assembly with the
Transmission.
2. Align the engine with housing.
Do not forcibly fit and tighten the
mounting bolts of engine to clutch housing until
the two mounting faces meet. Forcible tightening
of bolts can result in serious damage to both Engine
and clutch housing. Clutch housing needs to be held
in place with external support.
Check the freeplay of clutch and brake pedals.
NOTE : First align the PTO input shaft in the pilot
bearing. Align PTO damper and PTO input
shaft splines. Turn the flywheel and main
shaft hollow shuttle section at the same
time while pushing the Engine towards
clutch housing. Allow the splines of clutch
plate to align with those on the main shaft
hollow shuttle section.
23. Dismantle the bolts which are connecting engine
& clutch housing.
24. Move the engine assembly away from tractor.
