B-10
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Splitting Between Transmission & Rear Axle Assembly

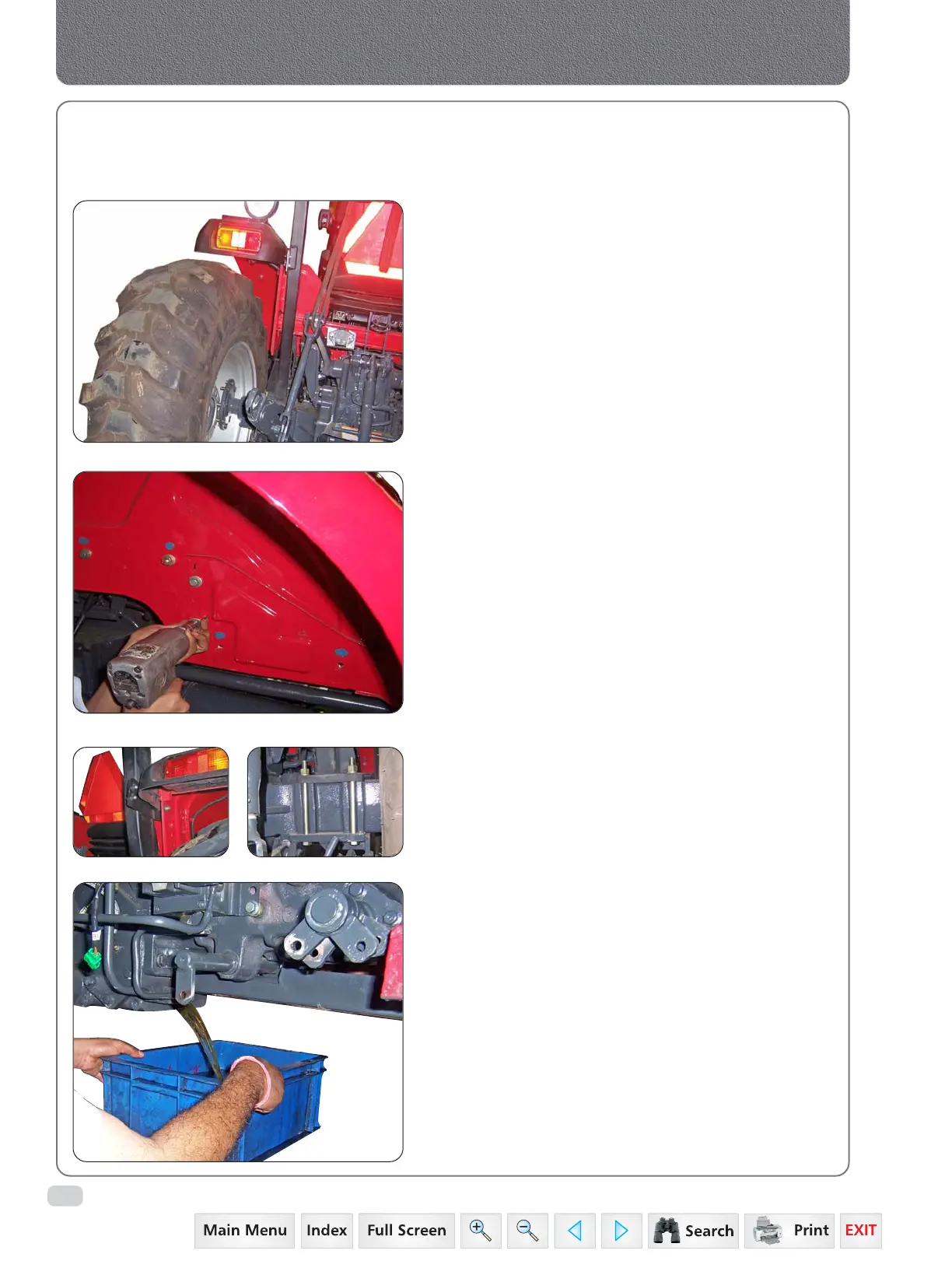

SPLITTING BETWEEN TRANSMISSION AND REAR AXLE
1. First remove the battery cable from its negative
terminal & then remove battery cable from
positive terminal.
2. Support the tractor by using tractor splitting rail
and jack.
3. Remove the rear LH & RH wheels.
4. Disconnect the LH, RH fender wiring harness to
P & T lamp, plow lamp & remove the wiring
harness from fender clamps.
5. Dismantle the ROPS Fender connecting bracket.
6. Remove the LH, RH fenders.
7. Remove the LH, RH lower link & stabilizers of
3 point linkage.
8. Remove the ROPS.
9. Remove the lower link support brackets LH & RH.
10. Drain the oil completely from the transmission
housing using drain plug.
11. Disconnect the fuel lines between fuel filter
& fuel tank.
12. Remove the LH side foot step .
