Mahindra THAR m2DiCR - Page 17

2-4
© Copyright Mahindra and Mahindra Ltd.062016
Fuse No.
Fuse Rating
Color Circuit
1 15A Blue
Fog Lamp
2 15A Blue
Turn Signal, Engine
compartment Lamp &
Reverse Lamp
3 15A Blue
Cigar Lighter/ Stereo
4 15A Blue
Wiper & Washer
5 15A Blue
Hazard/Horn
6 15A Blue
Head Lamp HI Beam
7 15A Blue
Head Lamp Low Beam
8 10A
ACC/Stereo
9 10A Blue
Roof Lamp
10 10A Red
Park Lamp
11 15A
—
Fuel Feed Pump
12 5A
—
Diagnostic Tool/Cluster
13 5A
—
Immobilizer
14 15A Blue ECU

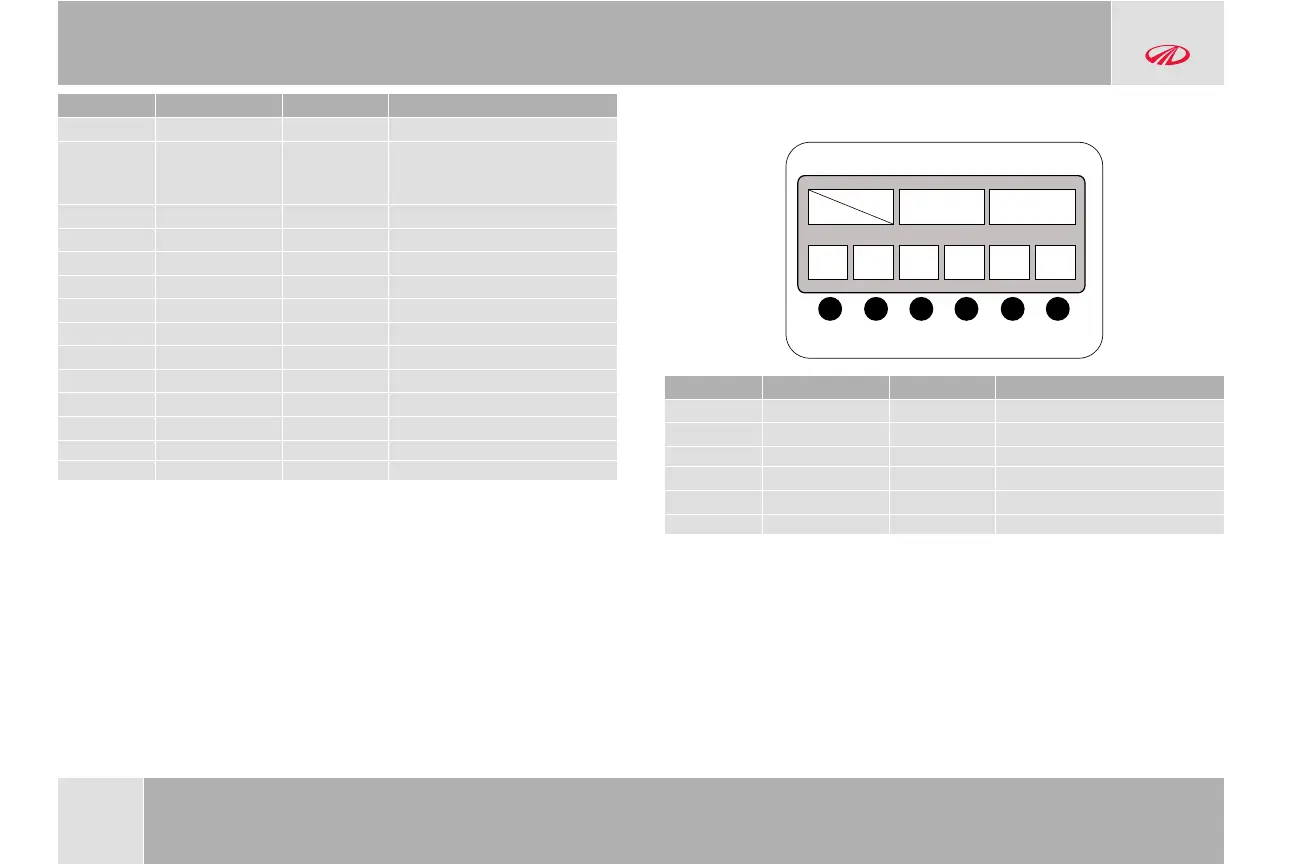

2.3.2 Passenger Compartment Fuse Relay
BRAKE
SWITCH
15A
EGR/
IMV
15A
CLUST
LAMP
10A
ECU
SUPPLY
20A
Spare (10A)
Spare (15A)
123456
P12B23
Fuse No.
Fuse Rating
Color Circuit
1 15A Blue
EGR/IMV
2 20A Red
ECU Supply
3
— — —
4 10A Red
Cluster Lamp
5 15A Blue
Brake S/W
6
— — —
GENERAL
