WIRING MANUAL
The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction,
translation, transmission, in part of or whole of the present document,are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the Authorized Service Centre of Mahindra & Mahindra Ltd.,will amount to unauthorized use and shall be liable for penalty/
prosecution© 2013 Mahindra & Mahindra Ltd.
MAN-00233
MAY 2013/Rev1
25042013

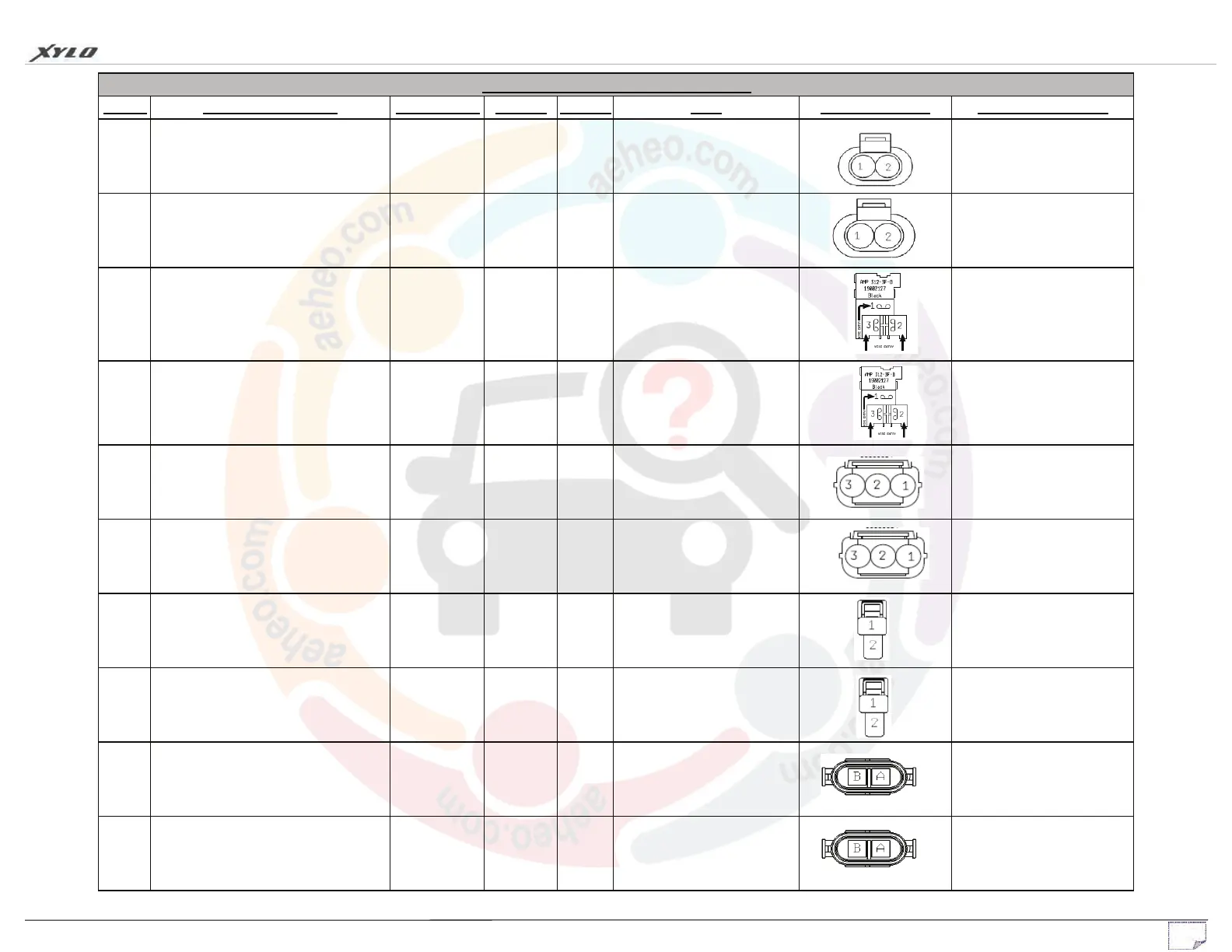

SR. NO.
NAME OF COMPONENT
NO. OF POLES COLOUR GENDER TYPE CONNECTOR VIEW NEW NOMENCLATURE
1
SIDE MARKER RHS
2 BLACK FEMALE CONNECTOR C167
2
SIDE MARKER LHS
2 BLACK FEMALE CONNECTOR C150
3
HEAD LAMP RHS
3 BLACK FEMALE CONNECTOR C98
4
HEAD LAMP LHS
3 BLACK FEMALE CONNECTOR C84
5
HEAD LAMP LEVELING RH
3 BLACK FEMALE CONNECTOR C99
6
HEAD LAMP LEVELLING LHS
3 BLACK FEMALE CONNECTOR C83
7
TURN RHS
2 FEMALE CONNECTOR C97
8
TURN LHS
2 FEMALE CONNECTOR C79
9
FR FOG LAMP RH
2 BLACK FEMALE CONNECTOR C90
10
FR FOG LAMP LHS
2 BLACK FEMALE CONNECTOR C87
WIRING HARNESS ENGINE ROOM
ENGINE COMPARTMENT WIRING HARNESS CONNECTORS
