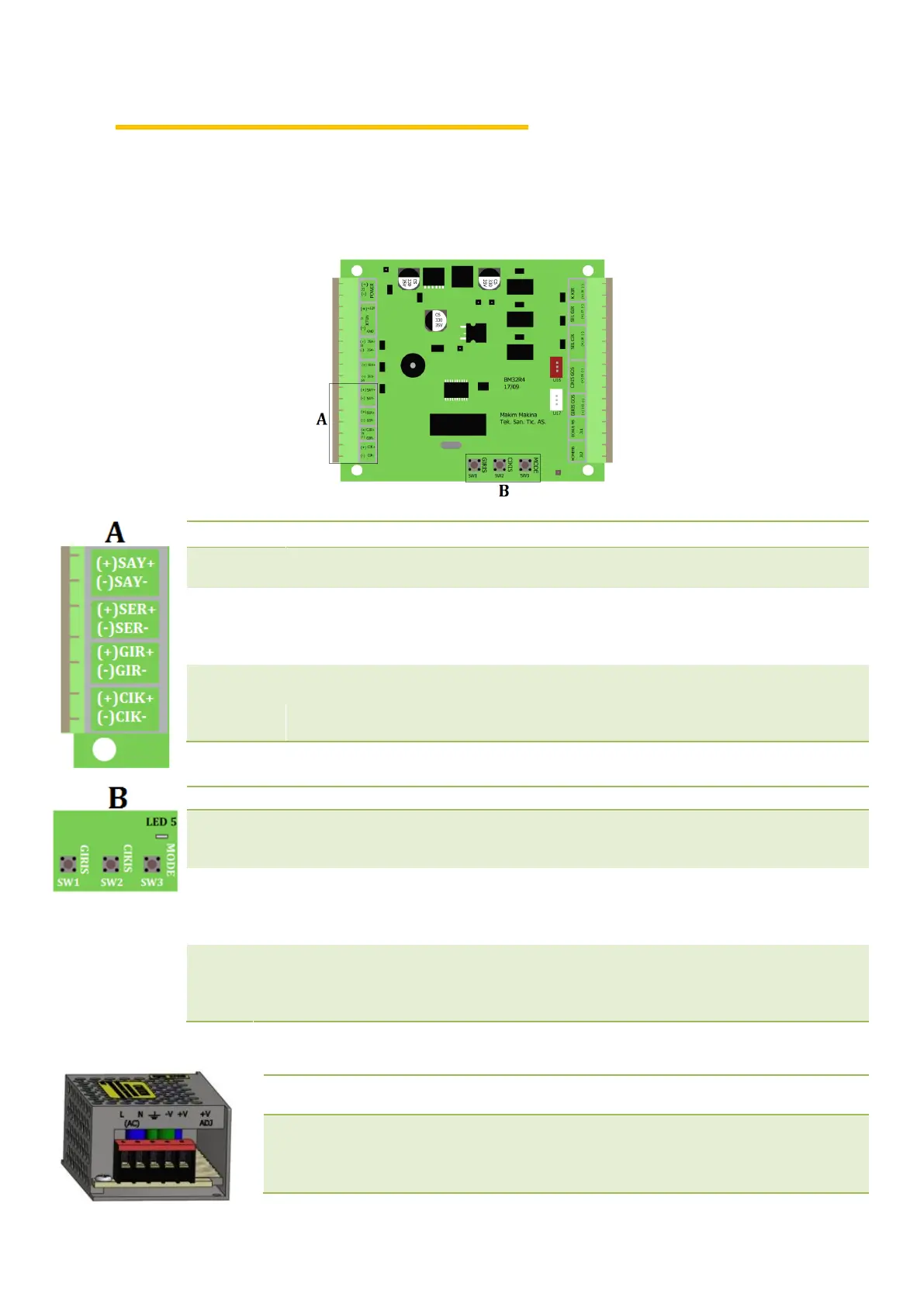

When the button and remote control are connected to this port, the
turnstile switches to free mode.
This port must be operated with pushbutton or relay output. Max. 1
second is recommended. When a signal is received from J5, the
turnstile opens in the direction of entry. (If the set mode input
direction is set to controlled pass).
This port must be operated with pushbutton or relay output. Max. 1
second is recommended. When a signal is received from J5, the
turnstile opens in the exit direction. (If the set mode output direction
is set to controlled pass).
When the Mode button is touched, the LED 5 lights up. The card is in
program mode. Press the button of the desired direction to make the
program.
After pressing the MODE button, the card will switch to 'LOCKED',
'CONTROLLED', 'FREE' modes each time this switch is touched. After
selecting the desired mode, press MODE SW-3 again. LED 5 is off. The
tourniquet is then programmed to the desired mode.
Each time the switch is pressed, the card will switch to 'LOCKED',
'CONTROLLED', and 'FREE' modes, respectively. After selecting the desired
mode, press MODE SW-3 again. LED 5 is off. The tourniquet is then
programmed to the desired mode.
The preferred power source for the turnstile is 25W, 24V, 1.1A. A power
supply below these values should not be used.
L N Port: 220AC V is applied. A grounding line is drawn from the ground
symbol to the turnstile body.
-V +V Port: Connect to V+(+) to V- (-) towards J1 socket of BM32 control
board.
Fullheight turnstiles operate with 220VAC voltage. Power cable which will be used in turnstiles must be min.
3 x 1.5 TTR. Power cable and ground connections points must be screwed in tightly.
