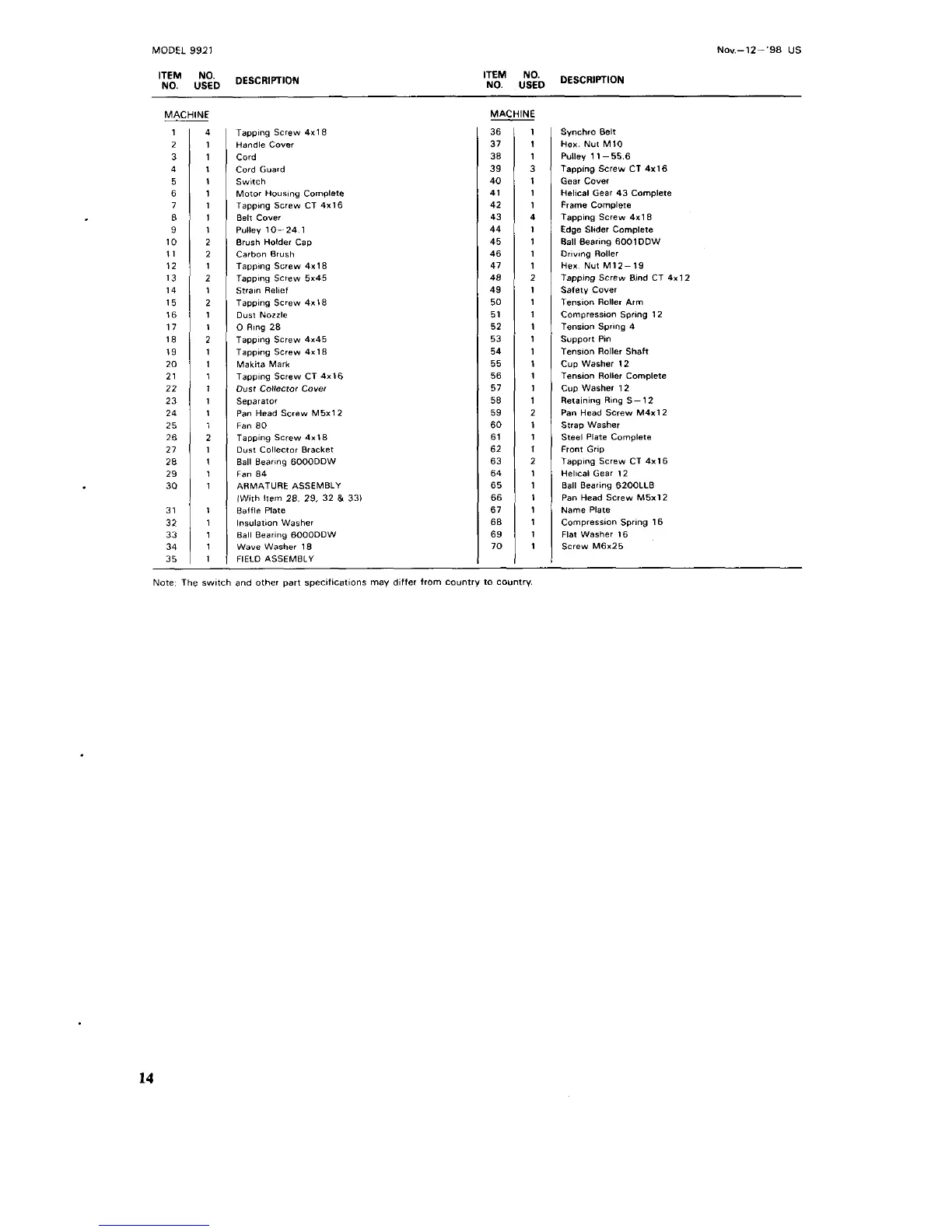

MODEL 9921 Nov.-l2--'98 US
MACHINE
1 4 Tapping
Screw 4x18
2 1 Handle Cover
3 1 Cord
4 1 Cord Guard
5
1 Switch
6 1 Motor Housing Complete
7 1 Tapping Screw CT 4x16
8
1 Belt cover
9 1 Pulley 10- 24 1
10
2 Brush Holder Cap
11
2 Carbon Brush
12 1 Tapping Screw 4x18
13 2 Tapping Screw 5x45
14 1 Strain
Relief
15 2 Tapping Screw 4x18
16 1 Dust Nozzle
17 1 0 Ring 28
18
2 Tapping Screw 4x45
19 1 Tapping
Screw 4x18
20
1 Makita Mark
21
1 Tapping Screw CT 4x16
22 1 Dust Collector cover
23 1 Separator
24 1 Pan
Head Screw M5x12
25 1 Fan 80
26 2 Tapping Screw 4x18
27 1
Dust Collector Bracket
28 1 Ball Bearing 6000DDW
29 1
Fan 84
30 1 ARMATURE ASSEMBLY
IWith Item
28 29 32 & 331
31 1 Baffle Plate
32 1
ln~ulation Washer
33 1 Ball Bearing 6000DDW
34 1 Wave
Washer 18
35
1 FIELD ASSEMBLY
'LLM AtD DESCRIPTION
WE
36 1
37 1
38 1
39 3
40 1
41 1
42 1
43 4
44 1
45 1
46 1
47 1
48
2
49 1
50 1
51 1
52 1
53 1
54 1
55 1
56 1
57 1
58 1
59
2
60 1
61 1
62
1
63 2
64 1
65 1
66 1
67 1
68 1
69 1
70 1
'LLM AtD DESCRIPTION
Synchro Belt
Hex NufM10
Pulley 11
-55 6
Tapping Screw CT 4x16
Gear Cover
Helical Gear 43 Complete
Frame Complete
Tapping
Screw 4x18
Edge Slider Complete
Ball Bearing 6001DDW
Driving Roller
Hex Nut M12-19
Tapping Screw
Bind CT 4x12
Tension Roller Arm
Compression Spring 12
Tension Spring 4
Tension Roller Shaft
Cup Washer 12
Tension
Roller Complete
Cup Washer 12
Retaining Ring S-12
Pan Head Screw M4x12
Strap Wesher
Steel Plate Complete
Front Grip
Tapping
Screw CT 4x16
Helical Gear 12
Bell Bearing 6200LLB
Pan Head Screw M5x12
Name
Plate
Compression Spring 16
Flat Washer 16
Screw M6x25
Safety cover
SLJpport
P,"
14
